KASINGS TV Remote Control Replacement User Manual

1. Introduction

This manual provides essential instructions for the setup, operation, and maintenance of your KASINGS TV Remote Control Replacement. This remote is designed to be compatible with various Vizio television models, including M320VT, M370VT, M420VT, M470VT, M470VTCA, and VUR11 series. Please read this manual thoroughly before use to ensure proper functionality and longevity of your remote control.

2. Product Overview

The KASINGS TV Remote Control Replacement is an ergonomic, infrared (IR) remote designed for intuitive button control of your Vizio television. It provides direct access to common TV functions.

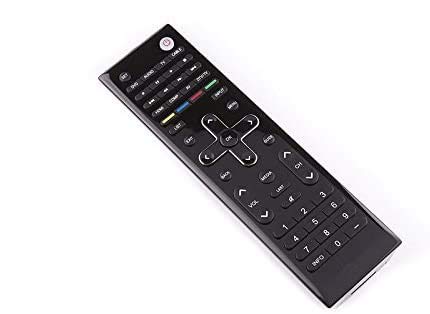

Figure 1: KASINGS TV Remote Control Replacement. This image shows the front view of the remote control, highlighting its button layout and ergonomic design.

Key Features:

• Ergonomic Design: Shaped for comfortable handling.
• Infrared Technology: Utilizes standard IR signals for reliable communication with your TV.
• Button Control: Dedicated buttons for power, volume, channel, input, menu, and navigation.
• Direct Replacement: Functions as a direct replacement for original Vizio remotes for specified models.

3. Setup

3.1 Battery Installation

1. Locate the battery compartment on the back of the remote control.
2. Slide the battery compartment cover downwards or press the latch and lift to open.
3. Insert two (2) AAA batteries (not included), ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
4. Replace the battery compartment cover, ensuring it clicks securely into place.

Note: Always use new batteries of the same type. Do not mix old and new batteries, or different types of batteries. Remove batteries if the remote will not be used for an extended period.

3.2 Initial Use

This remote control is designed to work immediately with compatible Vizio TV models (M320VT, M370VT, M420VT, M470VT, M470VTCA, VUR11) without any programming. Simply point the remote at your television and press the desired function button.

4. Operating Instructions

Familiarize yourself with the buttons on your remote control for optimal use.

• Power Button: Turns the TV on or off.
• Input/Source Button: Cycles through available input sources (HDMI 1, HDMI 2, AV, etc.).
• Volume Up/Down: Adjusts the TV's volume level.
• Mute Button: Silences the TV audio.
• Channel Up/Down: Changes the TV channel.
• Number Pad (0-9): Directly enters channel numbers.
• Menu Button: Accesses the TV's main menu.
• Navigation Buttons (Up, Down, Left, Right, OK/Enter): Used to navigate through TV menus and select options.
• Back/Exit Button: Returns to the previous menu or exits the current menu.
• Guide Button: Displays the electronic program guide (if available on your TV).
• Info Button: Displays information about the current program or input.

Important: Ensure there is a clear line of sight between the remote control's IR emitter and the TV's IR receiver. Obstructions can interfere with the signal.

5. Maintenance

5.1 Cleaning

To clean your remote control, gently wipe it with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water. Do not use harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the remote.

5.2 Battery Replacement

Replace batteries when the remote's performance degrades or if the TV does not respond consistently. Refer to Section 3.1 for battery installation instructions.

5.3 Storage

Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, remove the batteries to prevent leakage.

6. Troubleshooting

• Remote is not working:
  • Check if the batteries are inserted correctly with the correct polarity (+/-).
  • Replace old batteries with new ones.
  • Ensure there are no obstructions between the remote and the TV's IR receiver.
  • Make sure you are within the effective range of the TV's IR receiver.
  • Point the remote directly at the TV's IR receiver.
• Specific buttons are not responding:
  • Clean the remote control, especially around the unresponsive buttons, to remove any dirt or debris that might be preventing contact.
  • If only certain buttons fail, it might indicate internal damage; consider replacing the remote.
• TV is not responding consistently:
  • This could be a sign of low batteries. Replace them.
  • Ensure no strong light sources (like direct sunlight or bright fluorescent lights) are interfering with the IR signal.

7. Specifications

8. Warranty and Support

This KASINGS TV Remote Control Replacement is designed for reliable performance. For specific warranty information, please refer to the documentation provided at the time of purchase or contact KASINGS customer support directly. Support contact details are typically available on the manufacturer's official website or product packaging.

For further assistance or inquiries, please visit the KASINGS brand page on Amazon or consult your retailer.
