Brondell CleanSpa Advanced

Brondell CleanSpa Advanced Hand-Held Bidet Sprayer Instruction Manual

Model: CleanSpa Advanced | Brand: Brondell

1. Introduction

This instruction manual provides detailed guidance for the installation, operation, and maintenance of your Brondell CleanSpa Advanced Hand-Held Bidet Sprayer. Please read these instructions thoroughly before installation and use to ensure proper function and longevity of your product.

Brondell CleanSpa Advanced Hand-Held Bidet Sprayer packaging and product

Figure 1: Brondell CleanSpa Advanced Hand-Held Bidet Sprayer with packaging.

2. Included Components

Verify that all components are present before beginning installation:

  • Hand-Held Bidet Sprayer Head
  • Metal Bidet Hose with Patented Woven Core
  • All-Metal T-Valve with Water Pressure Control Lever
  • Toilet Hook and Wall Mount Option
  • Rubber Washer
  • Mounting Screws

3. Installation Guide

Follow these steps for a quick and easy installation. No special tools are required beyond a Phillips screwdriver and a wrench.

3.1 Prepare for Installation

  1. Turn off the water supply to your toilet at the shut-off valve located on the wall.
  2. Flush your toilet and hold down the flush handle until the water tank is completely drained.
  3. Unscrew the flexible water supply line from the fill valve at the toilet. Have a small bucket or towel ready to catch any residual water.

3.2 Install the T-Valve

  1. Insert the black rubber washer into the T-Valve.
  2. Connect the T-Valve to the fill valve under the toilet tank. Hand-tighten first, then use a wrench for a secure fit.
  3. Reconnect the flexible water supply line to the bottom of the T-Valve. Ensure all connections are tight to prevent leaks.

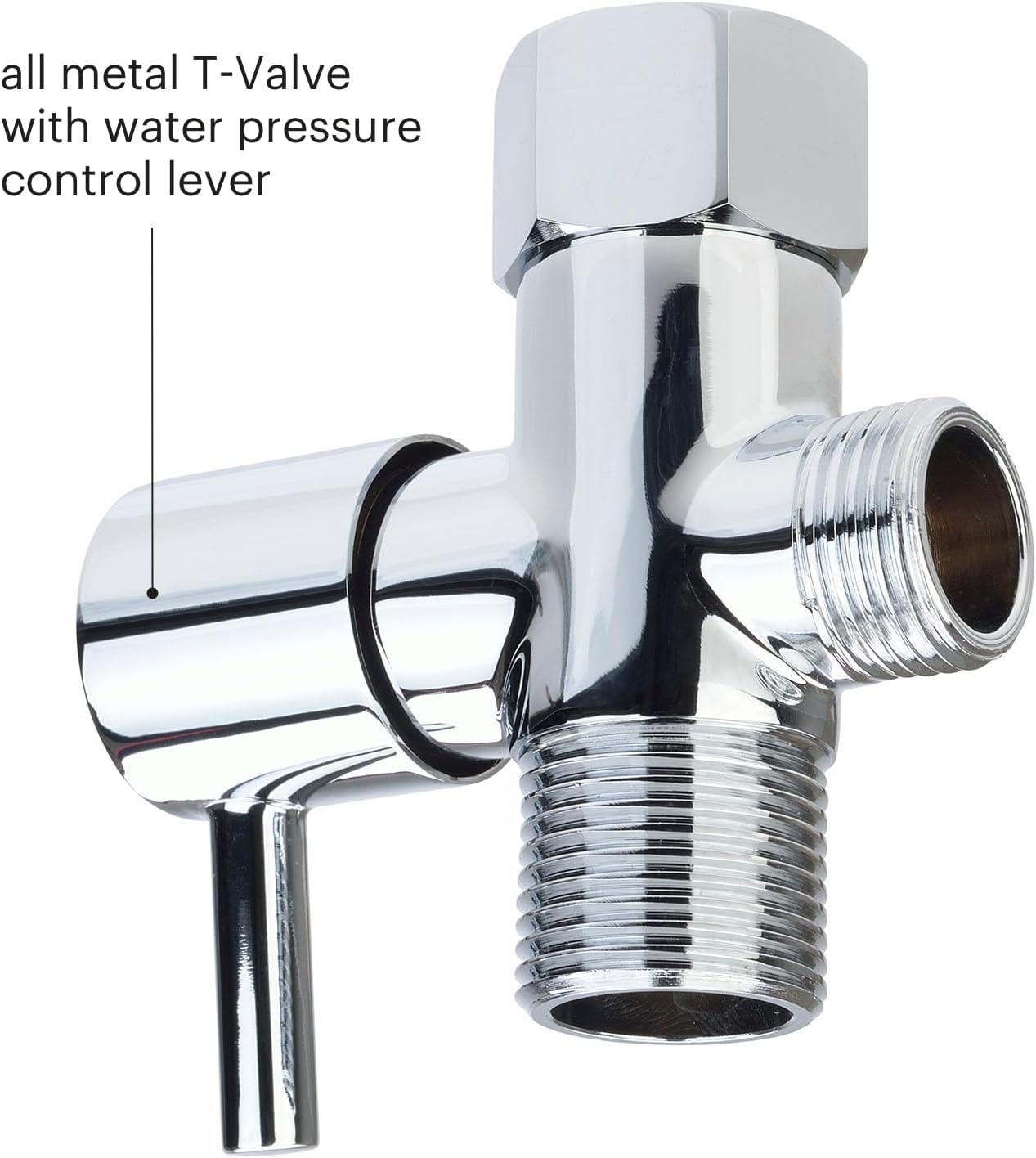

Close-up of the all-metal T-Valve with water pressure control lever

Figure 2: All-metal T-Valve for water pressure control.

3.3 Connect the Bidet Hose and Sprayer Head

  1. Remove the blue protective caps from both ends of the bidet hose.
  2. Attach one end of the bidet hose to the open end of the T-Valve.
  3. Connect the bidet sprayer head to the open end of the bidet hose.

3.4 Mount the Sprayer

  1. To mount the bidet sprayer to the side of the toilet, attach the bidet holster to the toilet hook using the provided screws.
  2. Lift the lid of the toilet tank and hang the toilet hook over the side.
  3. Insert the bidet sprayer into the holster.
Bidet sprayer holster mounted to the side of a toilet tank

Figure 3: Sprayer holster mounted for easy access.

3.5 Final Steps

  1. Slowly turn on the water supply at the shut-off valve. Check all connections for leaks.

3.6 Installation Videos

For a visual guide, please refer to the following installation videos:

Video 1: Brondell CleanSpa Advanced Installation Guide. This video demonstrates the step-by-step process of installing the bidet sprayer, from turning off the water supply to mounting the sprayer head.

Video 2: How to Install Brondell Hand Held Bidet. A user-friendly guide showing the practical steps for setting up your hand-held bidet.

4. Operating Instructions

The Brondell CleanSpa Advanced is designed for ease of use and precise control.

  1. Open the T-Valve lever to allow water flow to the bidet hose.
  2. Position the sprayer head as desired. The curved design provides an optimal angle for cleansing.
  3. Gently push the thumb lever on the sprayer head to initiate water flow. Adjust the lever to control the water pressure to your preference.
  4. After use, release the thumb lever to stop the water flow.
  5. For safety and to prevent potential damage, always turn off the T-Valve after each use. Failure to do so may weaken the bidet hose or sprayer head over time due to constant water pressure.
Brondell CleanSpa Advanced Hand-Held Bidet Sprayer with numbered features: 1. Curved sprayer for perfect angle, 2. Simple thumb controls for pressure, 3. Fresh water spray

Figure 4: Sprayer features for precision control.

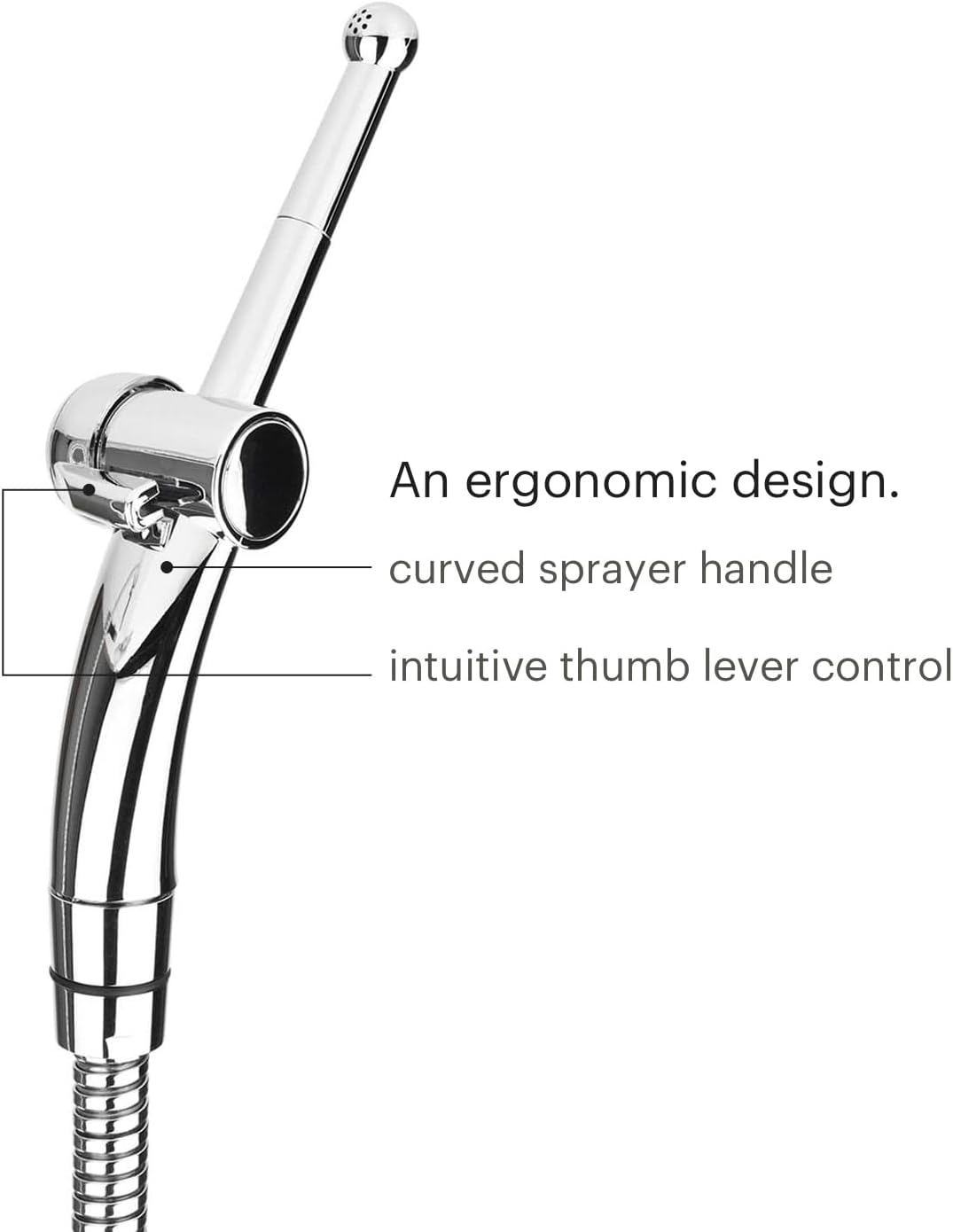

Close-up of the ergonomic design of the bidet sprayer handle with intuitive thumb lever control

Figure 5: Ergonomic design with intuitive thumb lever control.

5. Maintenance

Regular maintenance ensures optimal performance and hygiene.

  • Cleaning: Clean the bidet sprayer head and hose regularly with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
  • Leak Checks: Periodically inspect all connections for any signs of leaks. Tighten connections as needed. If leaks persist, check the rubber washers for wear and replace if necessary.
  • Storage: When not in use, ensure the sprayer is properly seated in its holster. Always turn off the T-Valve to relieve pressure on the hose and sprayer.

6. Troubleshooting

If you encounter any issues, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Water LeakageLoose connections, worn washers, T-Valve left open.Tighten all connections. Replace worn washers. Always close the T-Valve after each use.
Low Water PressurePartially closed T-Valve, clogged sprayer head.Ensure T-Valve is fully open. Clean sprayer head nozzles.
No Water FlowWater supply off, T-Valve closed, hose kinked.Check main water supply. Open T-Valve. Straighten bidet hose.

7. Specifications

FeatureDetail
BrandBrondell
Model NameCleanSpa Advanced
MaterialAcrylonitrile Butadiene Styrene (Sprayer), Brass, Ceramic (Handle)
Finish TypePolished Chrome
Mounting TypeWall Mount / Toilet Mount
Hose Length47 Inches
Item Weight1.52 pounds
Product Dimensions1"D x 2"W x 5"H
UPC819911012992

8. Warranty and Support

The Brondell CleanSpa Advanced Hand-Held Bidet Sprayer comes with a limited warranty. For specific warranty details, product support, or any additional questions, please contact Brondell customer support directly. Contact information can typically be found on the Brondell website or product packaging.
