Radtel 2-Pin Speaker Microphone Instruction Manual

1. Product Overview

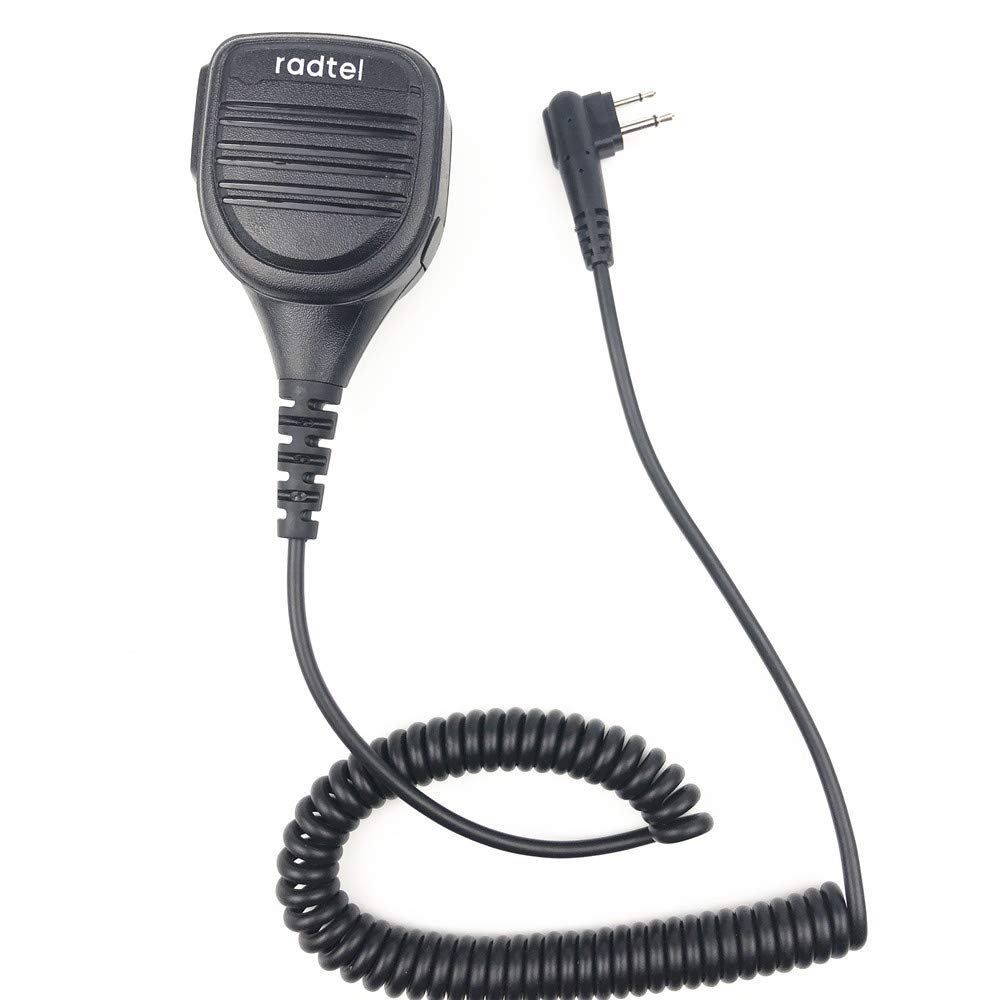

The Radtel 2-Pin Speaker Microphone is engineered for demanding environments such as construction sites and industrial settings, as well as for general rugged use. Its robust design ensures reliable communication in challenging conditions.

This high-quality microphone delivers crystal clear audio and features an impact-resistant PVC casing with an IP54 rating, providing protection against shock, wind, dust, and splashes. The heavy-duty stainless steel clip offers 8 adjustable positions for secure and convenient attachment to your lapel, allowing hands-free operation of your two-way radio.

2. Features

• Waterproof Heavy Duty Design: Remote hand/shoulder microphone built for durability.
• Clear Audio: Ensures good quality, clear, and loud voice transmission.
• Responsive PTT: Push-to-Talk button designed for comfortable and reliable use.
• Reinforced Construction: High-impact casing and high-grade Kevlar reinforced cabling for enhanced longevity.
• Versatile Clip: Features an 8-position reinforced spring clip that rotates 360 degrees, allowing flexible attachment.
• Extended Cable Length: 19.29-inch cable provides ample reach and flexibility.
• Audio Jack: Includes a 3.5mm audio jack for connecting a listen-only earpiece for private communication.
• IP54 Rating: Provides resistance against shock, wind, dust, and splashes.

3. Package Contents

• 1 x Radtel 2-Pin Speaker Microphone

4. Setup

To set up your Radtel 2-Pin Speaker Microphone, follow these steps:

1. Unpack the Microphone: Carefully remove the speaker microphone from its packaging.
2. Identify the Connector: Locate the 2-pin connector on the speaker microphone cable.
3. Connect to Radio: Align the 2-pin connector with the corresponding port on your compatible two-way radio (e.g., Radtel RT-480, RT-67, or Motorola models listed in the compatibility section). Gently push the connector into the port until it is securely seated.
4. Secure the Clip: Use the 360-degree rotatable clip to attach the microphone to your clothing (e.g., lapel, shoulder strap) in a comfortable and accessible position.

5. Operation

Once connected, operating the Radtel 2-Pin Speaker Microphone is straightforward:

• Push-to-Talk (PTT): Press and hold the large PTT button on the side of the microphone to transmit your voice. Release the button to listen.
• Listening: Audio from the radio will be routed through the speaker on the microphone.
• Private Listening: If you wish to listen privately, connect a 3.5mm earpiece (not included) to the audio jack located on the microphone. This will mute the microphone's speaker and route audio to the earpiece.
• Adjusting Volume: Adjust the volume directly on your connected two-way radio.

6. Compatibility

The Radtel 2-Pin Speaker Microphone is compatible with the following radio models:

• Radtel: RT-480, RT-67
• Motorola GP Series: GP68, GP88, GP300, GP308, GP2000, GP2100
• Motorola CP Series: CP88, CP100, CP110, CP150, CP200, CP1200, CP1300, CP1660, CP2000, CP2000S, CP3188, CP3688, Mag One A8, SP66
• Motorola SP Series: SP10, SP21, SP50
• Motorola CT Series: CT150, CT250, CT450, CT450LS
• Motorola PRO Series: PRO1150, PRO2150, PRO3150
• Motorola P Series: P040, P080, P100, P110, P1225, P1225LS, P2000
• Motorola CLS Series: CLS1110, CLS1410
• Motorola DTR Series: DTR410, DTR550, DTR650
• Motorola RDX Series: RDU2020, RDU2080D, RDU4100, RDU4160D, RDV2020, RDV2080D, RDV5100, RDV2050, RDV2040, RDV2043, RDV2080, RDV2080D
• Motorola RM Series: RMV2080, RMM2050, RMU2040, RMU2043, RMU2080, RMU2080D
• Motorola XTN XV Series: XV1100, XV2100, XV2600
• Motorola XTN XU Series: XU1100, XU2100, XU2600
• Motorola XTN Series: XTN446, XTN500, XTN600
• Other Motorola Models: AXU4100, AXV5100, DLR1020, DLR1060, VL50

7. Specifications

8. Maintenance

To ensure the longevity and optimal performance of your Radtel 2-Pin Speaker Microphone, follow these maintenance guidelines:

• Cleaning: Wipe the microphone's casing with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Storage: Store the microphone in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Cable Care: Avoid sharp bends or excessive pulling on the Kevlar reinforced cable to prevent internal damage.
• Connector Protection: Keep the 2-pin connector clean and free from dirt or debris to ensure a reliable connection.

9. Troubleshooting

If you encounter issues with your Radtel 2-Pin Speaker Microphone, consider the following troubleshooting steps:

• No Audio/Transmission:
  • Ensure the microphone's 2-pin connector is fully and securely inserted into the radio's port.
  • Check the radio's volume settings.
  • Verify that the radio itself is powered on and functioning correctly.
  • Test the microphone with another compatible radio, if available, to rule out a radio-specific issue.
• Distorted Audio:
  • Ensure the microphone is not too close to your mouth when speaking.
  • Check for any physical damage to the microphone's speaker or grille.
  • Confirm the radio's settings are appropriate for clear audio transmission.
• Clip Issues:
  • If the clip is loose or not holding securely, inspect it for damage. The stainless steel clip is designed to be durable but can be affected by extreme force.

10. Warranty & Support

For warranty information or technical support, please refer to the documentation provided with your original radio purchase or contact Radtel customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
