1. Important Safety Information
Please read all instructions carefully before installing, operating, or performing maintenance on your Mueller Deluxe 36" Wall Mount Range Hood. Retain this manual for future reference.
- Electrical Safety: Ensure the range hood is properly grounded. Do not modify the power plug. Avoid using extension cords. All electrical work must be performed by a qualified electrician in accordance with local codes and standards.
- Installation Safety: The wall structure must be capable of supporting the weight of the range hood. Wear appropriate protective gear during installation. Follow all local building and safety codes.
- Operation Safety: Never leave cooking unattended. Grease fires can occur. Clean grease filters regularly to prevent grease buildup, which can be a fire hazard.
- Cleaning Safety: Always disconnect power to the range hood before cleaning or performing any maintenance. Use only non-abrasive cleaning agents to avoid damaging surfaces.
2. Product Overview
The Mueller Deluxe 36" Wall Mount Range Hood, Model HAF-49, is designed for efficient removal of smoke, steam, and cooking odors. It features a powerful 900 CFM motor, a sleek Eurocentric design with black tempered glass and stainless steel, dual LED lighting, and a responsive touch control panel with three fan speeds. The unique glass panel opens during operation to maximize capture and closes when the unit is off for a clean, integrated appearance.

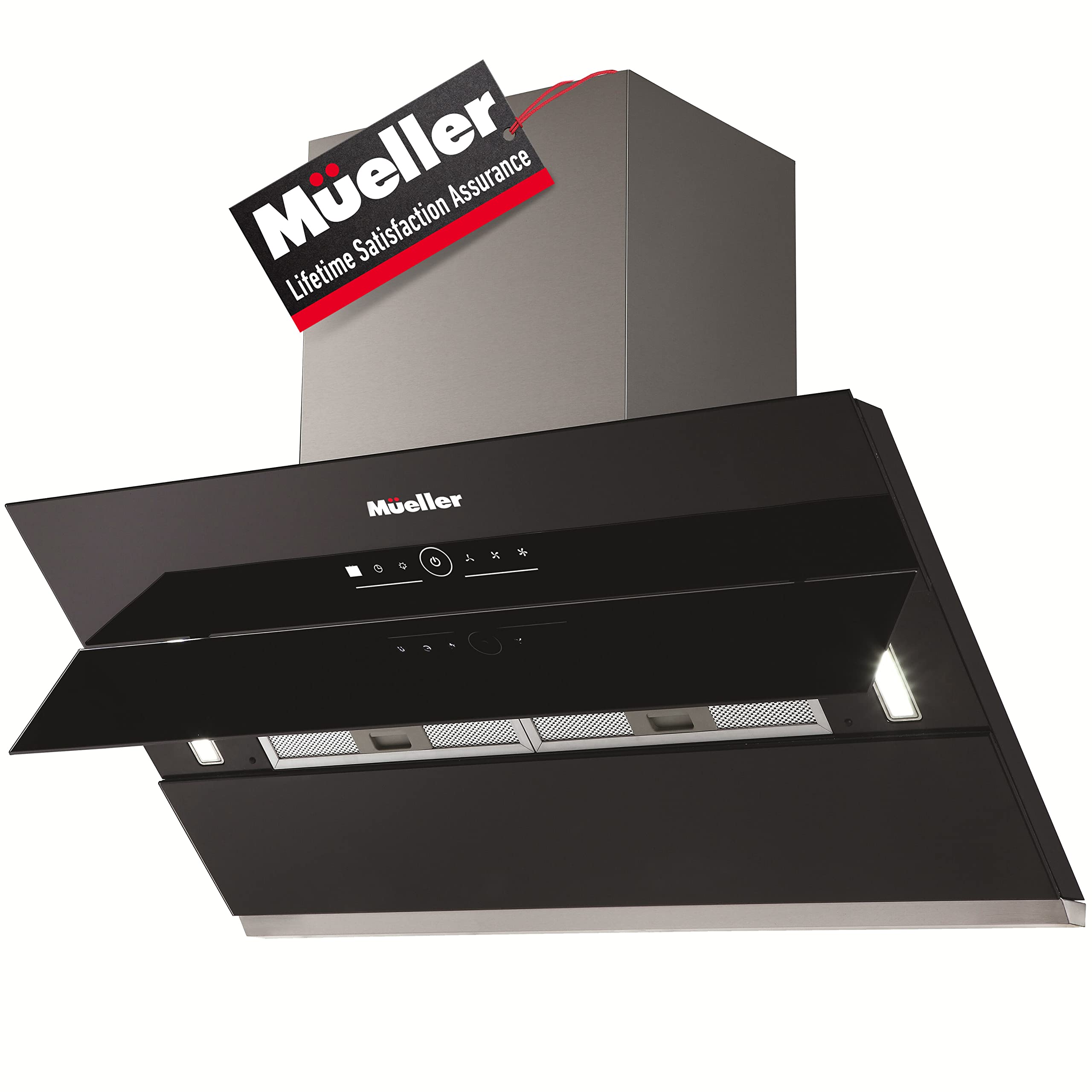

Image: The Mueller Deluxe 36-inch Wall Mount Range Hood installed above a cooktop, showcasing its design and LED lighting.
3. Setup and Installation
3.1 Unpacking and Inspection
Carefully remove all packaging materials. Inspect the range hood for any signs of damage during transit. Report any damage to the retailer immediately.
3.2 Location Requirements
This range hood is designed for wall-mount installation. Ensure the mounting surface is structurally sound and capable of supporting the unit's weight (approximately 66.9 pounds). Maintain a vertical distance of 13.8 to 17.7 inches (35 to 45 cm) between the cooking surface and the bottom of the range hood for optimal performance and safety.
Image: Installation diagram illustrating required clearances for standalone and embedded range hood setups.
3.3 Ducting
The unit requires ducted operation. Connect a standard 6-inch diameter exhaust duct to the range hood's outlet. For best performance, ensure the ductwork is as straight and short as possible, with minimal bends.
3.4 Electrical Connection
Connect the range hood to a dedicated, grounded electrical circuit in accordance with all applicable local and national electrical codes.
3.5 Chimney Cover Installation
Install the provided stainless-steel extendable chimney cover over the ductwork for a complete and aesthetic finish.
4. Operating Instructions
The range hood is operated via a touch control panel located on the front of the unit.
Image: A user cooking with the Mueller Deluxe 36-inch Wall Mount Range Hood actively extracting steam and odors.
- Power On/Off: Touch the Power Icon to turn the range hood on or off.
- Fan Speed Adjustment: Select from three fan speeds (Low, Medium, High) by touching the respective Fan Speed Icons. Adjust the speed according to the intensity of cooking fumes.
- LED Lighting: Touch the Light Icon to activate or deactivate the dual LED lights, providing illumination for your cooking area.
- Delay Timer: The Delay Timer Function allows the fan to continue operating for a preset duration after cooking, ensuring complete removal of residual odors. Consult the full manual for specific timer settings.
- Glass Panel Operation: The black tempered glass panel automatically extends forward when the unit is powered on and retracts when powered off, maintaining a sleek profile.
5. Maintenance
Regular maintenance is crucial for the optimal performance and longevity of your range hood.
5.1 Cleaning Grease Filters
The triple-layer aluminum grease filters should be cleaned regularly, typically monthly, depending on cooking frequency. Clean filters ensure efficient air extraction and prevent fire hazards.
- Disconnect the range hood from its power supply.
- Locate the filter release latch, pull it, and carefully lower the filter to remove it.
- Wash the filters in hot soapy water or place them in a dishwasher.
- Ensure filters are completely dry before re-installing.
- Re-install the filters by aligning them and pushing them into place until the latch engages securely.
5.2 Cleaning the Exterior
Wipe the stainless steel and tempered glass surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive pads, or steel wool, as these can scratch or damage the finish.
5.3 Grease Tray
Periodically empty and clean the easy-access grease tray to prevent overflow and maintain hygiene.
6. Troubleshooting
Refer to the table below for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate. | No power supply; motor malfunction. | Check power connection and circuit breaker. Ensure the unit is plugged in. If the problem persists, contact customer support. |
| Lights do not work. | LED bulb failure; electrical connection issue. | Check electrical connections. If LED bulbs are replaceable, replace them according to the full manual. Otherwise, contact customer support. |
| Poor suction performance. | Clogged grease filters; restricted ductwork; incorrect installation height. | Clean or replace grease filters. Check ductwork for obstructions. Verify installation height as per Section 3.2. |
| Excessive noise during operation. | Loose components; motor issue; ductwork obstruction. | Check for loose screws or parts. Inspect ductwork for obstructions. If noise persists after these checks, contact customer support. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | HAF-49 |
| Air Flow Capacity | 900 Cubic Feet Per Minute (CFM) |
| Material | Tempered Glass, Stainless Steel |
| Noise Level | Less than 69 Decibels |
| Mounting Type | Wall Mount |
| Controls Type | Touch Control |
| Number of Speeds | 3 |
| Light Source Type | Dual LED |
| Filter Type | Triple-layer Aluminum Grease Filters |
| Ventilation Type | Ducted Exhaust |
| Product Dimensions (D x W x H) | 27"D x 36"W x 20"H |
| Item Weight | 66.9 pounds |
| Power Source | AC |
| Special Features | Adjustable, Easy to Install, Quiet, Variable Speed |
