Marsrock 400W 12V Wind Turbine Generator with MPPT Controller User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Marsrock 400W 12V Wind Turbine Generator. This wind power kit includes a 3-blade turbine designed for automatic windward direction adjustment and an external MPPT controller for efficient energy conversion. It is suitable for various applications such as terraces, marine environments, motor homes, chalets, and boats.

2. Safety Information

Read all safety warnings and instructions carefully before installing or operating the wind turbine. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• Ensure all electrical connections are made by qualified personnel and comply with local electrical codes.
• Always disconnect power before performing any maintenance or installation procedures.
• Wear appropriate personal protective equipment (PPE) during installation, including gloves and eye protection.
• Mount the wind turbine securely to prevent it from falling or becoming dislodged in high winds.
• Keep children and pets away from the wind turbine during operation and maintenance.
• Avoid touching moving parts of the turbine while it is in operation.
• Do not install the turbine near power lines or other obstructions.

3. Product Overview

The Marsrock 400W 12V Wind Turbine Generator is designed for efficient and reliable power generation. Key features include:

• Excellent Generator: Features a 400W three-phase NdFeB permanent magnet synchronous motor for low noise and durability. The outer casing is designed for rapid heat dissipation.
• MPPT Controller: Includes an external MPPT controller for efficient tracking performance and optimized power output.
• Low Start-up Speed: The generator starts at a low wind speed of 2 m/s and automatically adjusts direction for maximum wind capture.
• Durable Materials: Blades are made of waterproof, corrosion-proof, and lightweight nylon fiber. The turbine body is die-casting aluminum, and the tail is stainless steel, treated with baking varnish for corrosion and water resistance.
• Wide Application: Suitable for home monitoring, motor homes, boats, gazebos, chalets, and marine use.

Components

The wind turbine kit typically includes the following components:

• Wind Turbine Generator Head
• Wind Turbine Blades (3 blades)
• Hub and Fixing Accessories
• MPPT Charge Controller
• User Manual

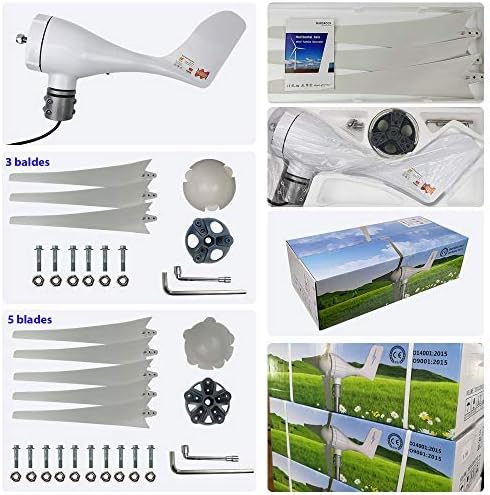

Figure 3.1: Included components for the Marsrock Wind Turbine Generator, showing the turbine head, blades, hub, and mounting hardware.

4. Setup and Installation

The Marsrock wind turbine is designed for easy assembly. Follow these steps for proper installation:

1. Mounting the Turbine: The wind turbine kit comes with a hoop installed for convenient mounting. Securely attach the turbine to a sturdy pole or mast in an area with unobstructed wind flow. Ensure the mounting location is stable and can support the weight and forces exerted by the turbine.
2. Blade Assembly: Attach the nylon fiber blades to the hub using the provided fixing accessories. Ensure each blade is securely fastened.
3. Electrical Connections: Connect the three-phase wires from the wind turbine generator to the MPPT charge controller. Then, connect the controller to your 12V battery system. Pay close attention to polarity when connecting to the battery. Refer to the wiring diagram in the MPPT controller manual for detailed instructions.

Figure 4.1: Illustration of the easy installation clamp mechanism and the waterproof wiring connection point on the turbine.

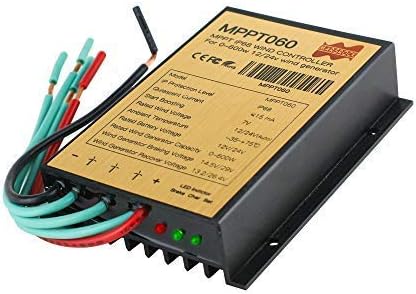

Figure 4.2: The MPPT controller with its various connection terminals for the wind generator and battery.

5. Operating Instructions

Once installed and connected, the Marsrock wind turbine operates automatically:

• The turbine begins generating power at a low start-up wind speed of 2 m/s.
• The tail fin automatically adjusts the turbine's direction to align with the wind, maximizing energy capture.
• The MPPT controller optimizes the power output from the turbine to efficiently charge your 12V battery bank.
• Monitor the indicator lights on the MPPT controller to confirm charging status and system health.

Figure 5.1: Close-up view of the indicator light on the wind turbine, which provides visual feedback on its operational status.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your wind turbine:

• Visual Inspection: Periodically inspect the blades, mounting hardware, and electrical connections for any signs of wear, damage, or corrosion.
• Cleaning: Clean the blades and turbine body as needed to remove dirt, debris, or ice buildup that could affect performance. Use a soft cloth and mild detergent.
• Tighten Fasteners: Check and tighten all bolts and fasteners on the turbine and mounting pole regularly.
• Cable Integrity: Ensure all cables are intact, free from fraying, and properly secured to prevent damage from movement or weather.
• Battery Check: Regularly check the connected battery's health and charge level.

7. Troubleshooting

If you encounter issues with your wind turbine, consider the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Marsrock customer support.

8. Specifications

Technical specifications for the Marsrock 400W 12V Wind Turbine Generator:

Figure 8.1: Detailed dimensions of the Marsrock Wind Turbine Generator components.

9. Warranty and Support

Marsrock products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase or visit the official Marsrock website.

Please retain your proof of purchase for warranty claims.
