West Bend IT500 Iced Tea and Coffee Maker Instruction Manual

Important Safety Information

Please read all instructions carefully before using your West Bend IT500 Iced Tea and Coffee Maker. Retain this manual for future reference.

• Always unplug the appliance from the outlet when not in use and before cleaning.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only attachments recommended by the manufacturer.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• The glass pitcher is fragile; handle with care. Avoid sudden temperature changes.

Product Overview

The West Bend IT500 Iced Tea and Coffee Maker is designed to brew delicious iced tea or coffee with customizable strength and flavor. It features a durable glass pitcher and an infusion tube for adding fresh ingredients.

Figure 1: Front view of the West Bend IT500 Iced Tea and Coffee Maker.

Components:

• Brewing Unit: Main body of the appliance.
• Water Reservoir: Located at the back of the brewing unit, with a 'MAX' fill line.
• Brew Basket: Holds loose tea or coffee grounds.
• Mesh Filter: Reusable filter for the brew basket.
• Adjustable Brew Strength Selector: Slide control on the front to choose desired strength.
• Glass Pitcher: 2.75-quart capacity with handle and measurement markings for water and ice.
• Infusion Tube: For adding fruits or herbs to customize flavor.
• Brew Button: One-touch operation to start brewing.
• Drip Tray: Integrated into the base to catch drips.

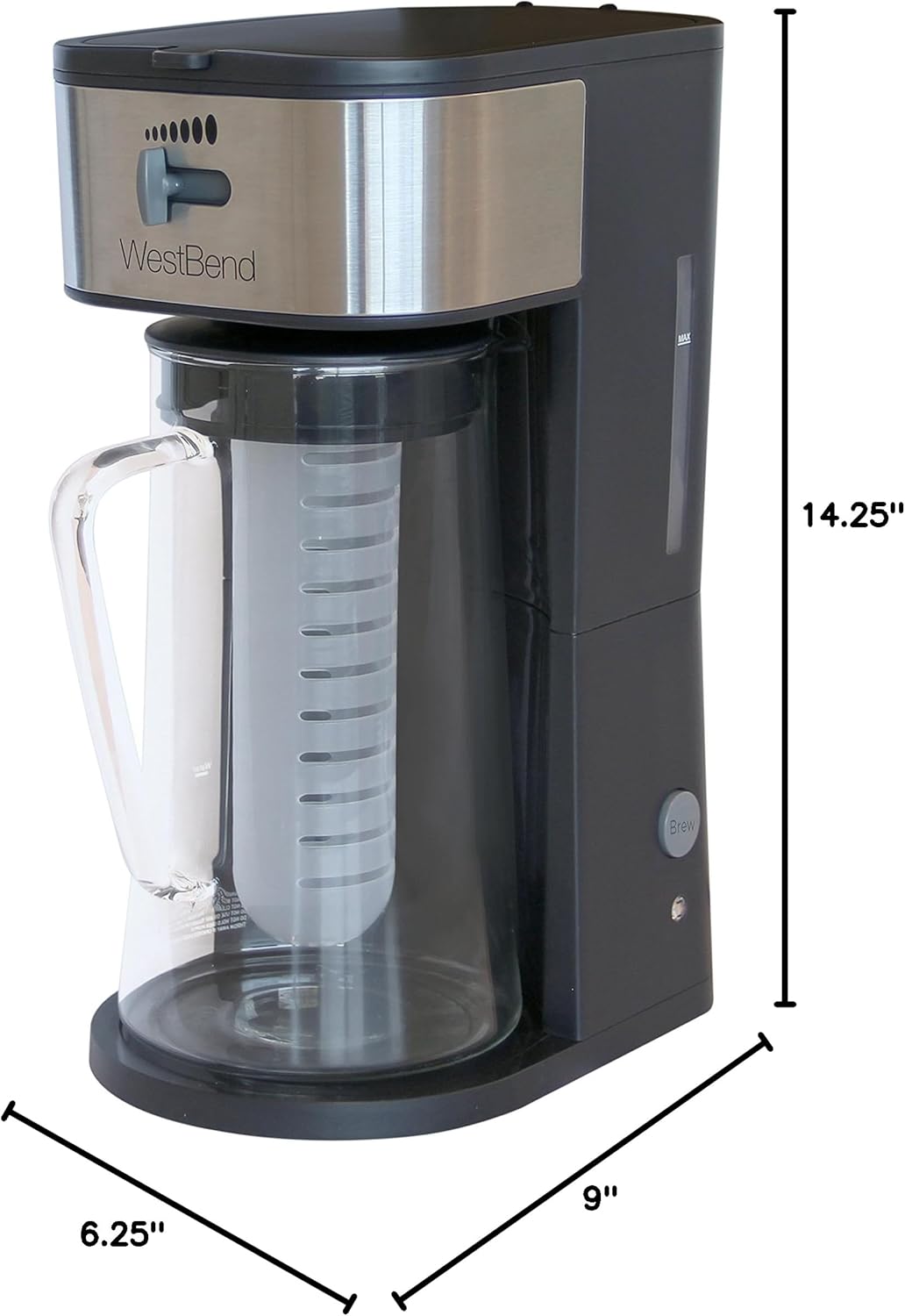

Figure 2: Dimensions of the West Bend IT500 Iced Tea and Coffee Maker (6.25"D x 9"W x 14.25"H).

Setup

1. Unpack: Carefully remove all components from the packaging. Retain packaging for storage or shipping if needed.
2. Clean: Before first use, wash the glass pitcher, brew basket, mesh filter, and infusion tube in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the brewing unit with a damp cloth.
3. Placement: Place the brewing unit on a flat, stable, heat-resistant surface near an electrical outlet. Ensure there is adequate clearance above the unit for the lid to open.
4. Assemble: Insert the mesh filter into the brew basket, then place the brew basket into the brewing unit. Ensure the glass pitcher is correctly positioned on the drip tray beneath the brew basket.

Operating Instructions

Brewing Iced Tea or Coffee:

1. Add Tea/Coffee: Open the lid of the brewing unit. Place your desired amount of loose tea, tea bags, or coffee grounds into the mesh filter within the brew basket. Close the lid securely.
2. Fill Water Reservoir: Fill the glass pitcher with cold water up to the 'Water' fill line. Pour this water into the water reservoir at the back of the brewing unit. Do not exceed the 'MAX' fill line on the reservoir.
3. Add Ice: Fill the glass pitcher with ice cubes up to the 'Ice' fill line. Place the pitcher back onto the drip tray.
4. Adjust Brew Strength: Use the adjustable brew strength selector on the front of the unit to choose your preferred strength. Slide towards the smaller dots for lighter brew, and towards the larger dots for stronger brew.
5. Optional Infusion: If desired, place sliced fruits (e.g., lemon, lime) or herbs into the infusion tube and insert it into the pitcher before brewing.


Figure 3: Infusion tube for adding custom flavors to your beverage.

6. Start Brewing: Plug the appliance into a standard electrical outlet. Press the 'Brew' button on the side of the unit. The indicator light will illuminate, and brewing will begin.
7. Automatic Shut-Off: The appliance will automatically shut off once the brewing cycle is complete. The indicator light will turn off.
8. Serve: Carefully remove the pitcher from the unit. The brew-through lid allows for easy serving. Enjoy your freshly brewed iced tea or coffee.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your appliance.

1. Unplug: Always unplug the appliance and allow it to cool completely before cleaning.
2. Discard Grounds/Tea: Remove the brew basket and mesh filter. Discard used tea leaves or coffee grounds.
3. Dishwasher Safe Parts: The glass pitcher, brew basket, mesh filter, and infusion tube are dishwasher safe (top rack recommended) or can be washed by hand in warm, soapy water. Rinse thoroughly.
4. Wipe Exterior: Wipe the exterior of the brewing unit with a damp cloth. Do not use abrasive cleaners or scouring pads. Never immerse the brewing unit in water.
5. Drip Tray: Remove and clean the drip tray as needed.
6. Descaling: Over time, mineral deposits may build up in the water reservoir. To descale, fill the water reservoir with a mixture of equal parts white vinegar and water. Run a brew cycle without tea/coffee. Repeat with clean water to rinse. Perform descaling every 1-3 months depending on water hardness.

Figure 4: Removable components for easy cleaning.

Troubleshooting

Specifications

Warranty and Support

The West Bend IT500 Iced Tea and Coffee Maker comes with a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal household use.

For warranty claims, technical support, or to purchase replacement parts, please contact West Bend Customer Service. Refer to the official West Bend website or your product registration card for the most current contact information.

Product registration is recommended to activate your warranty and receive important product updates.
