1. Introduction

This manual provides essential information for the safe installation, operation, and maintenance of your ARIEL Platinum PW1545930LW1 Whirlpool Bathtub. Please read all instructions carefully before installation and use to ensure proper function and longevity of the product.

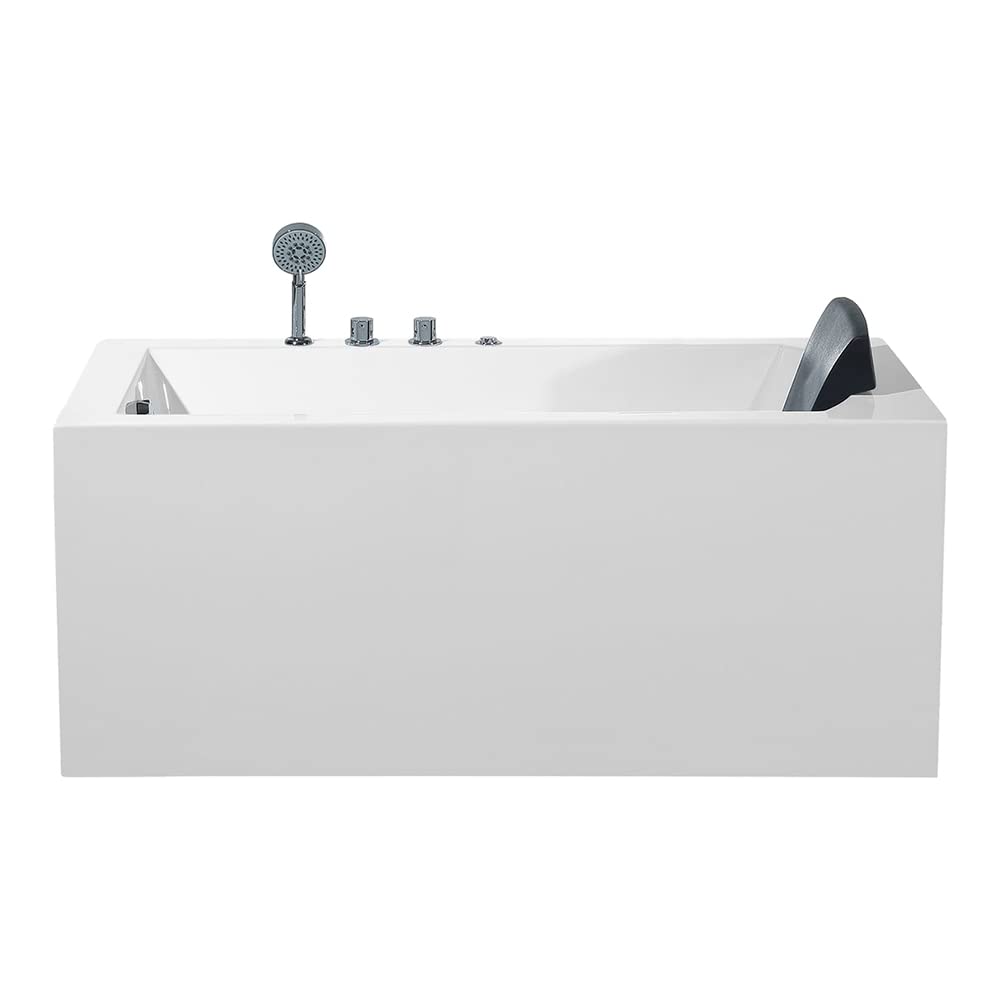

Image 1.1: The ARIEL Platinum PW1545930LW1 Whirlpool Bathtub, a rectangular jetted air bubble soaker tub.

2. Safety Information

Always adhere to local plumbing and electrical codes during installation. Failure to do so may result in property damage, injury, or death. Consult with a licensed professional for installation if you are unsure.

• Ensure the bathtub is installed on a level, structurally sound surface capable of supporting its weight when filled with water and occupied.
• Do not operate the whirlpool system without sufficient water in the tub to cover the jets.
• Keep electrical components dry and protected from water exposure.
• Avoid using abrasive cleaners or harsh chemicals that could damage the fiberglass surface or chrome fixtures.
• Supervise children and individuals with limited physical capabilities when using the bathtub.

3. Setup and Installation

The ARIEL Platinum PW1545930LW1 is a freestanding bathtub designed for easy integration into your bathroom space. Proper preparation of the installation area is crucial.

3.1 Pre-Installation Checks

• Verify that the floor can support the combined weight of the tub, water, and user.
• Ensure access to hot and cold water supply lines and a suitable drain connection. This model features a left-side drain.
• Confirm electrical supply meets the requirements for the hydro-massage system.

3.2 Positioning the Bathtub

Carefully move the bathtub to its desired location. Ensure there is adequate space for maintenance access around the unit, if required by local codes.

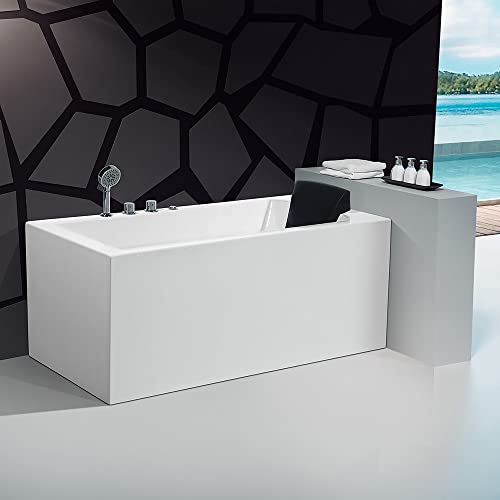

Image 3.1: The ARIEL Platinum PW1545930LW1 Bathtub positioned in a bathroom, illustrating its freestanding design.

3.3 Connecting Plumbing and Electrical

• Connect the hot and cold water supply lines to the bathtub's faucets.
• Connect the bathtub's drain to the floor drain system, ensuring a watertight seal.
• Connect the electrical supply for the hydro-massage system according to the manufacturer's instructions and local electrical codes. This typically involves a dedicated circuit with Ground Fault Circuit Interrupter (GFCI) protection.

4. Operating Instructions

Your ARIEL Platinum PW1545930LW1 Bathtub is equipped with advanced features for a comfortable bathing experience.

4.1 Filling the Bathtub

Before activating any jet functions, ensure the bathtub is filled with water to a level above the highest jets. Use the integrated faucet to fill the tub to your desired temperature and level.

4.2 Hydro-Massage System

The bathtub features a hydro-massage system with 6 multidirectional whirlpool jets and 11 bottom and back acupuncture massage jets. These jets provide customizable water action.

• Activating Jets: Locate the control panel or buttons on the tub rim. Press the designated button to activate the whirlpool jets.
• Adjusting Water Flow: Some jets may have adjustable nozzles or dedicated controls to modify water flow intensity and direction.

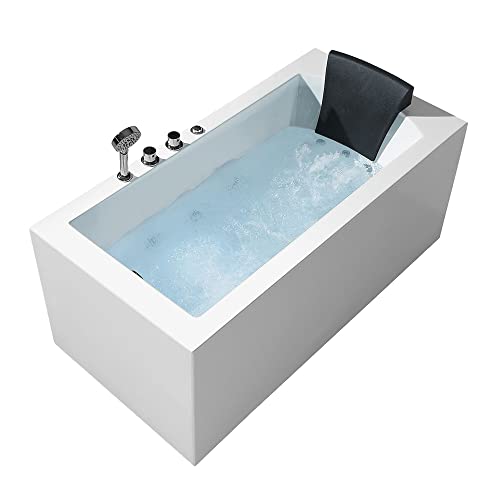

Image 4.1: The bathtub with water, demonstrating the active hydro-massage jets.

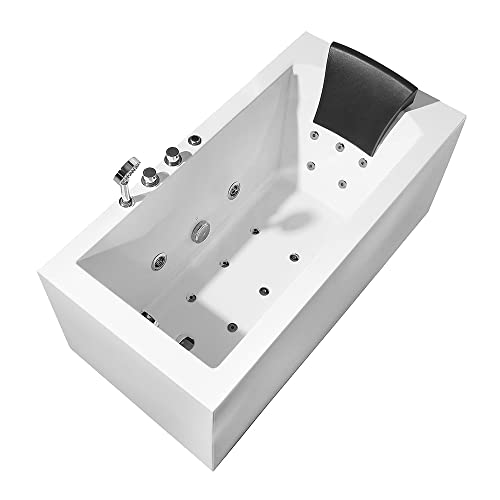

Image 4.2: A top-down view highlighting the arrangement of the whirlpool and acupuncture jets within the bathtub.

4.3 Additional Features

This model may include additional features such as a built-in heater to maintain water temperature and a Bluetooth connectivity option for audio. Refer to the specific controls on your unit for activation and adjustment of these features.

5. Maintenance and Cleaning

Regular maintenance ensures the longevity and hygienic operation of your bathtub.

5.1 General Cleaning

• Clean the bathtub surface regularly with a soft cloth and a non-abrasive, mild bathroom cleaner.
• For the chrome finish fixtures, use a soft cloth and a non-abrasive cleaner specifically designed for chrome.
• Rinse thoroughly after cleaning to remove any cleaner residue.

5.2 Jet and Plumbing System Cleaning

• Periodically fill the tub with warm water and add a small amount of a non-foaming jet cleaner or a cup of white vinegar.
• Run the hydro-massage system for 10-15 minutes to circulate the cleaning solution.
• Drain the tub, then refill with clean water and run the jets again for a few minutes to rinse the system.

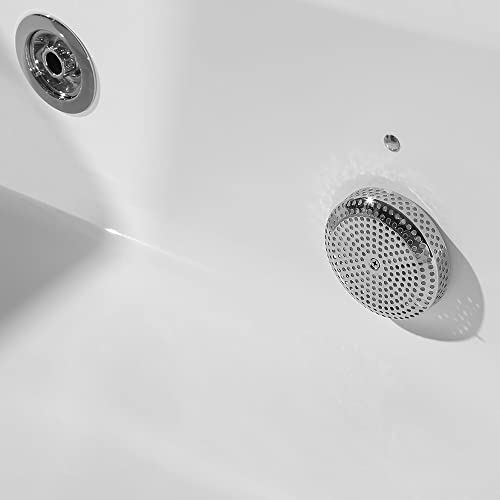

Image 5.1: A close-up view of the bathtub's drain and overflow components, important for maintenance.

6. Troubleshooting

This section addresses common issues you might encounter with your whirlpool bathtub.

6.1 Jets Not Activating

• Check Water Level: Ensure the tub is filled above the jet nozzles.
• Power Supply: Verify that the bathtub is properly connected to a power source and that the GFCI breaker has not tripped.
• Control Panel: Ensure the control panel is functioning and the correct button for jet activation has been pressed.

6.2 Weak Jet Pressure

• Jet Nozzle Adjustment: Some jets allow for individual pressure adjustment. Check if any nozzles are partially closed.
• System Clogging: Perform a jet system cleaning cycle as described in the Maintenance section to remove any blockages.

6.3 Leaks

• Drain Connections: Inspect all plumbing connections, especially around the drain and overflow, for loose fittings or damaged seals.
• Jet Seals: If leaks appear around jet nozzles, contact customer support for assistance.

If you encounter issues not covered here or require further assistance, please contact ARIEL customer support.

7. Specifications

8. Warranty and Support

For information regarding the product warranty, please refer to the documentation provided at the time of purchase or visit the official ARIEL website. For technical support, replacement parts, or any other inquiries, please contact ARIEL customer service directly.

Manufacturer: ARIEL

Contact Information: Please refer to your purchase documentation or the manufacturer's official website for current contact details.
