HYPERLITE LED UFO High Bay Light 250W - User Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your HYPERLITE 250W LED UFO High Bay Light. Please read this manual thoroughly before installation and retain it for future reference.

2. Safety Information

• Always disconnect power before installation or maintenance.
• Ensure the power supply voltage is compatible with the light fixture (AC120V-277V).
• Installation should be performed by a qualified electrician in accordance with local electrical codes.
• Do not look directly into the light source when it is illuminated to avoid eye strain.
• Ensure the fixture is securely mounted using the provided hanging hook and safety rope.
• Operating temperature range: -22°F to 104°F (-30°C to 40°C).

3. What's in the Box

Verify that all components are present before beginning installation:

• 1 x 250W 5000K UFO High Bay Light
• 1 x 5' Cable with 110V Plug
• 1 x Hanging Hook
• 1 x Safe Rope

4. Product Features

The HYPERLITE LED UFO High Bay Light is engineered for superior performance and durability:

• Unbeatable Illumination: Delivers 36,250 lumens with up to 145 lumens per watt, providing bright and wide illumination.

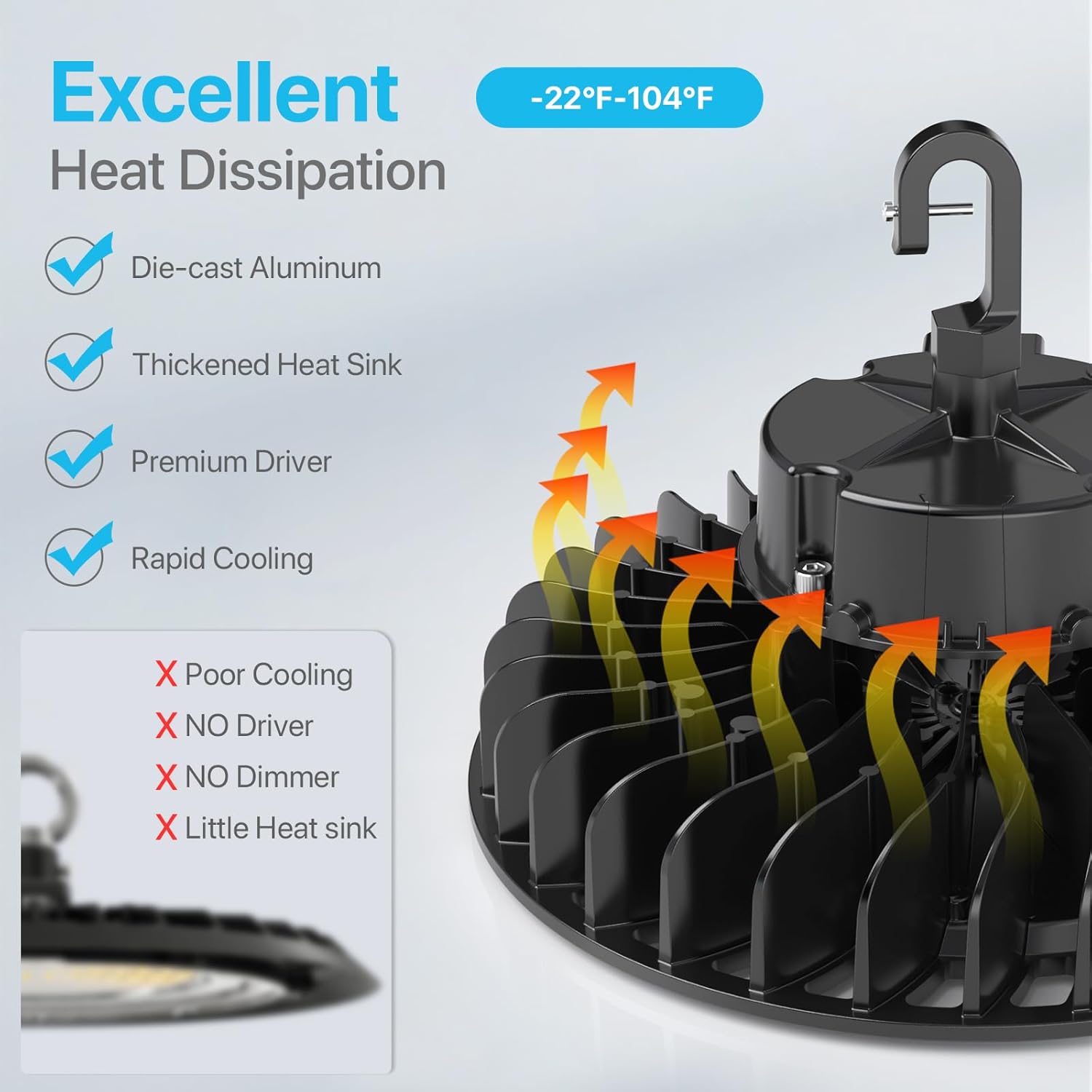

• Durable Construction: UL certified, IP65 rated waterproof and dustproof. Features pure aluminum cold-forged design for excellent thermal transfer, extending component life.
• Adjustable Power & Color Temperature: (Note: This model is 5000K, but other models may offer adjustable color temperature as shown in some videos).
• Flicker-Free Operation: Supports 120-277V with no buzzing and reduced eye strain.

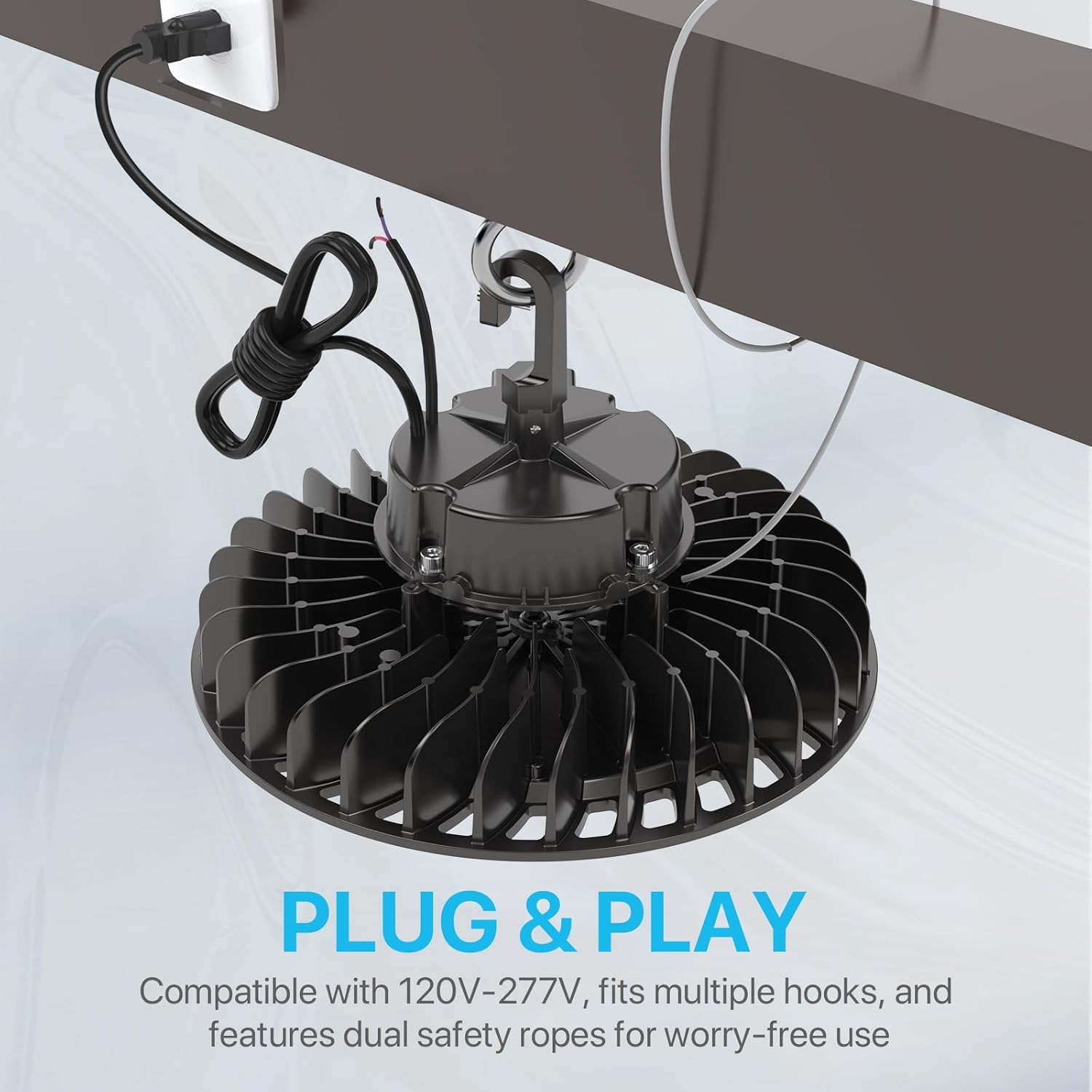

5. Setup & Installation

The HYPERLITE LED UFO High Bay Light is designed for quick and easy installation:

1. Attach the hanging hook to the top of the light fixture.
2. Securely hang the fixture from a suitable overhead structure.
3. Attach the safety rope to the fixture and a separate secure point on the overhead structure as an additional safety measure.
4. Plug the 5-foot power cord into a standard 110V outlet.

6. Operating Instructions

The HYPERLITE LED UFO High Bay Light is designed for straightforward operation:

• Once properly installed and plugged in, the light will illuminate.
• For dimming functionality, connect a compatible 1-10V dimmer (not included) to the designated pigtail wires on the fixture. Follow the dimmer manufacturer's instructions for wiring.
• The light is compatible with 1-10V dimmers, allowing brightness adjustment from 10% to 100%.

7. Maintenance

To ensure optimal performance and longevity of your HYPERLITE LED UFO High Bay Light, follow these maintenance guidelines:

• Cleaning: Periodically clean the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Inspection: Regularly inspect the power cord, hanging hook, and safety rope for any signs of wear or damage. Replace any damaged components immediately.
• Environment: Ensure the operating environment remains within the specified temperature range to prevent overheating.

8. Troubleshooting

If you encounter issues with your HYPERLITE LED UFO High Bay Light, refer to the following common troubleshooting steps:

9. Specifications

10. Warranty & Support

HYPERLITE offers a 5-year service warranty for this product. If you encounter any fault issues, please contact HYPERLITE customer service for assistance. Replacements are typically provided within 30 days for faulty products.

For further support or inquiries, please visit the official HYPERLITE website or contact their customer service department.
