1. Introduction
Thank you for choosing the HYPERLITE UFO LED High Bay Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before installation and retain them for future reference.

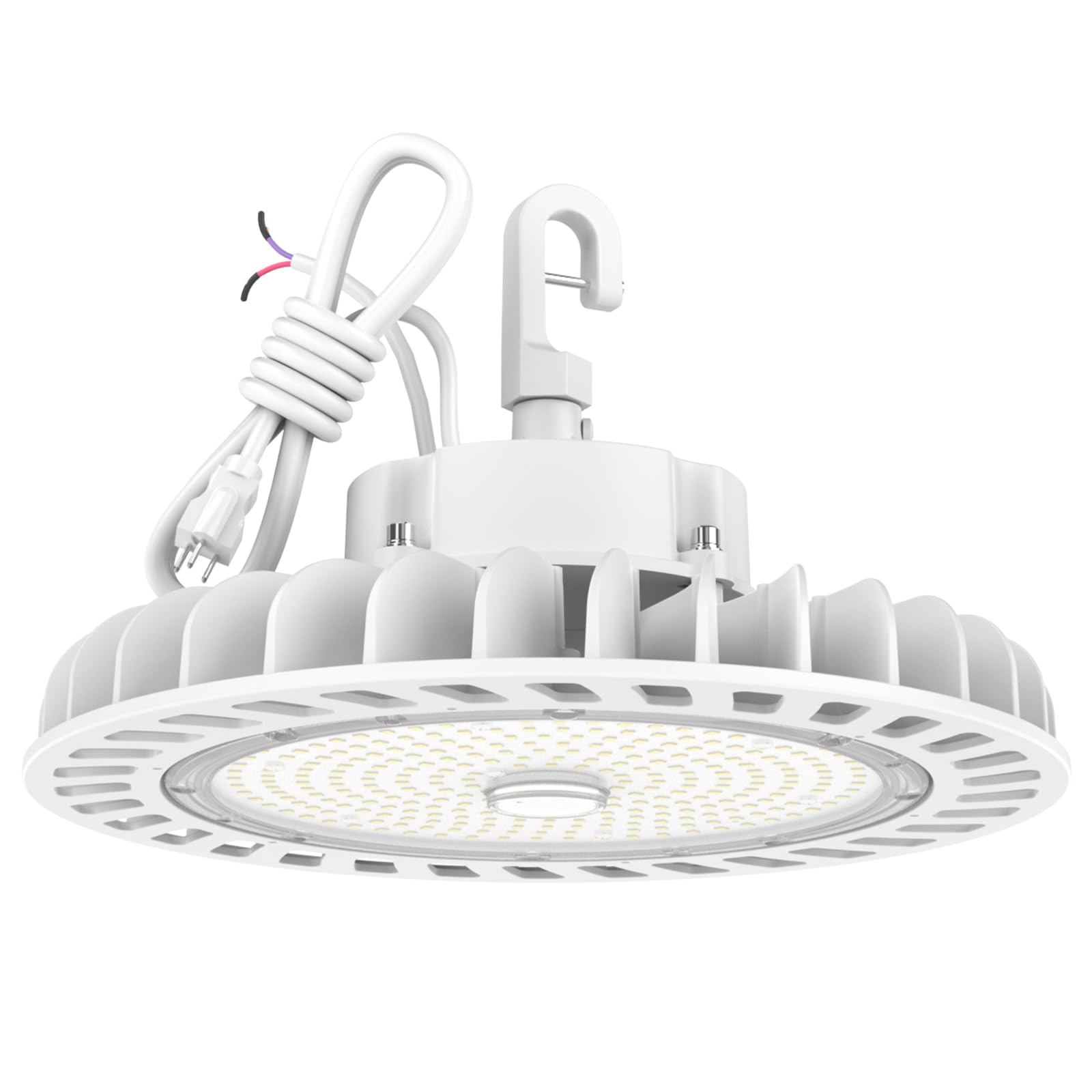

Figure 1: HYPERLITE UFO LED High Bay Light 200W
2. Safety Information
To reduce the risk of death, personal injury, or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards, please read all warnings and instructions included with and on the fixture box and all fixture labels.
- Installation must be performed by a qualified electrician in accordance with national and local electrical codes.
- Disconnect power at the fuse or circuit breaker before installation or servicing.
- Ensure the supply voltage is correct for the fixture.
- Do not handle energized fixtures, or attempt to energize any fixture with wet hands or while standing on wet or damp surfaces.
- Avoid direct eye exposure to the light source when the fixture is on.
- Do not operate the fixture if it is damaged.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x 200W 5000K UFO High Bay LED Shop Lighting
- 1 x 5' Cable with 110V Plug
- 1 x Safe Rope
- 1 x US Hanging Hook
- 1 x Instruction Manual

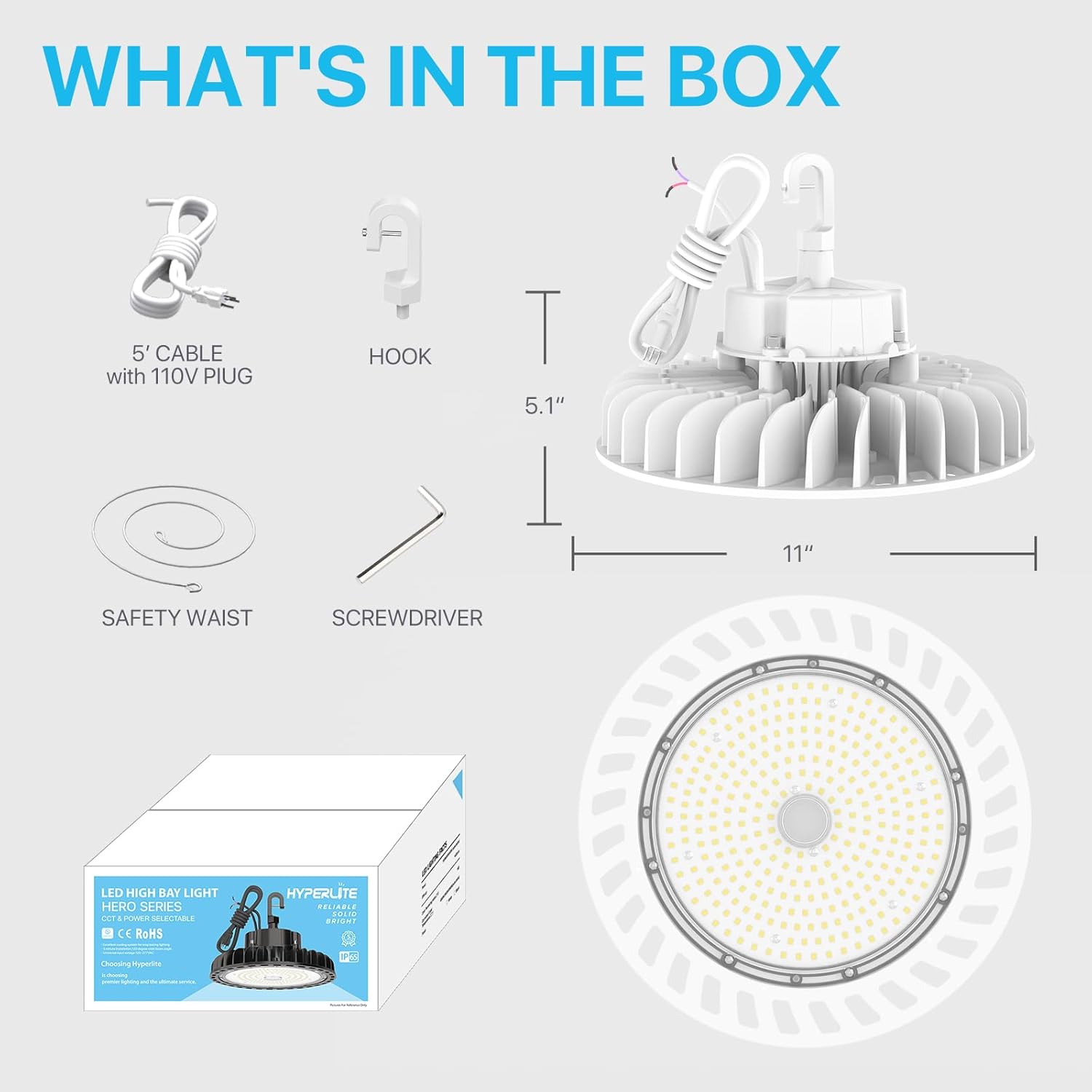

Figure 2: Included components: light fixture, cable, safety rope, hook, and manual.
4. Specifications
| Feature | Description |
|---|---|
| Brand | HYPERLITE |
| Model Number | 200W 5000K |
| Wattage | 200 watts |
| Brightness | 28,000 Lumens (27,000 Lumens listed in specifications) |
| Color Temperature | 5000K (Daylight White) |
| Dimmable | 1-10V Dimmable |
| Voltage | 100-277 Volts AC |
| Beam Angle | 120° |
| Material | Aluminum |
| Water Resistance Level | IP65 (Waterproof) |
| Certifications | UL Listed, FCC |
| Mounting Type | Hanging |
| Item Dimensions (L x W x H) | 11"L x 11"W x 7"H |
| Item Weight | 3.4 Pounds |
The fixture features a pure aluminum cold-forged design for excellent thermal transfer, extending component life.
Figure 3: Heat dissipation design with die-cast aluminum and thickened heat sink.
5. Setup and Installation
The HYPERLITE UFO LED High Bay Light is designed for quick and easy hanging installation. Ensure power is disconnected before proceeding.
- Prepare Mounting Location: Identify a suitable ceiling beam or structure capable of supporting the fixture's weight. Install a secure mounting point for the included US Hanging Hook.
- Attach Hanging Hook: Securely attach the provided US Hanging Hook to the top of the light fixture.
- Hang the Fixture: Carefully lift the fixture and hang it from the pre-installed mounting point using the hook.
- Install Safety Rope: For added security, attach the included Safe Rope from the fixture to a separate, secure anchor point on the ceiling structure.
- Connect Power: Plug the 5-foot cable with the 110V plug into a compatible power outlet. For hardwired installations, a qualified electrician should connect the fixture to the main power supply, ensuring proper grounding and wiring for the 1-10V dimming function if desired.
Figure 4: Illustration of hanging installation with hook, cable, and safety rope.
Video 1: Installation guide for the HYPERLITE LED High Bay Light in a warehouse or garage setting.
6. Operating Instructions
Once installed and powered, the HYPERLITE UFO LED High Bay Light is ready for operation.
- Power On/Off: Use the wall switch connected to the power outlet to turn the light on or off.
- Dimming Function (1-10V): This fixture supports 1-10V dimming. To utilize this feature, connect a compatible 1-10V dimmer switch (not included) to the dimming wires of the fixture. Follow the dimmer manufacturer's instructions for wiring and operation.
Figure 5: Demonstrates the 1-10V dimmable feature, showing light intensity from 10% to 100% in a large space.
Video 2: Overview of HYPERLITE lighting, highlighting its brightness and suitability for various applications.
7. Maintenance
The HYPERLITE UFO LED High Bay Light requires minimal maintenance. Always ensure power is disconnected before performing any maintenance.
- Cleaning: Periodically clean the exterior of the fixture with a soft, dry, or slightly damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Inspection: Regularly inspect the fixture, hanging hardware, and power cable for any signs of damage, wear, or loose connections. Address any issues promptly.
8. Troubleshooting
If you encounter issues with your HYPERLITE UFO LED High Bay Light, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply, loose connection, faulty switch | Check power outlet, ensure all connections are secure, test the switch. |
| Light flickers or dims unexpectedly | Unstable power, incompatible dimmer, wiring issue | Verify stable power, ensure dimmer is 1-10V compatible, check dimming circuit wiring. |
| Reduced brightness | Dust/dirt accumulation, dimming level set too low | Clean the fixture surface, adjust dimmer to a higher setting. |
If the problem persists after attempting these solutions, please contact HYPERLITE customer support.
9. Applications
The HYPERLITE UFO LED High Bay Light is suitable for a variety of indoor commercial and industrial applications, including:
- Warehouses
- Factories
- Garages
- Workshops
- Gyms
- Supermarkets
Figure 6: Examples of the high bay light used in warehouses, factories, garages, and workshops.
Video 3: HYPERLITE White High Bay Light illuminating various spaces, showcasing its brightness and versatility.
10. Warranty and Support
The HYPERLITE UFO LED High Bay Light comes with a 5-year manufacturer's warranty, ensuring long-lasting performance and reliability. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact HYPERLITE customer service through the retailer where the product was purchased or visit the official HYPERLITE website for contact information.
If there are any fault issues, please let us know and we will replace it within 30 days of purchase.
