Gardena PowerMax 1800/42 Electric Lawn Mower User Manual

1. Introduction and Product Overview

The Gardena PowerMax 1800/42 is a powerful and versatile electric lawn mower designed for efficient and effortless lawn care. This manual provides essential information for the safe operation, maintenance, and optimal performance of your new lawn mower. Please read it thoroughly before first use.

Figure 1: The Gardena PowerMax 1800/42 Electric Lawn Mower, showcasing its compact design and vibrant blue and grey color scheme.

Key Features:

• Powerful 1800 Watt motor for effective cutting.
• Generous 42 cm (16.5 inches) cutting width for efficient coverage.
• Integrated mulching function to naturally fertilize your lawn.
• Lightweight design (approximately 9.66 kg / 21.3 lbs) for easy maneuverability.
• 5-step cutting height adjustment for a perfectly tailored trim.
• Durable plastic construction built for longevity.

2. Safety Instructions

Always prioritize safety when operating any power tool. Failure to follow these instructions may result in serious injury.

General Safety Rules:

• Read and understand all instructions before operating the lawn mower.
• Keep children and bystanders away from the operating area.
• Wear appropriate personal protective equipment (PPE), including eye protection, sturdy footwear, and hearing protection.
• Inspect the area for objects that could be thrown by the blade before mowing.
• Never operate the mower in wet conditions or on steep slopes.
• Disconnect the power supply before cleaning, adjusting, or performing maintenance.
• Do not modify the lawn mower in any way.

3. Package Contents

Carefully unpack your Gardena PowerMax 1800/42 and ensure all components are present and undamaged. If any parts are missing or damaged, contact your retailer or Gardena customer service.

• Gardena PowerMax 1800/42 Lawn Mower Unit
• Handle Assembly (upper and lower parts)
• Grass Collection Box (multi-part assembly)
• Mulching Plug (if not pre-installed)
• User Manual
• Fasteners and small parts for assembly

4. Setup and Assembly

Follow these steps to assemble your lawn mower before first use.

4.1. Handle Assembly

1. Attach the lower handle bars to the mower body using the provided fasteners. Ensure they are securely tightened.
2. Connect the upper handle bar to the lower handle bars. The handle features an ergonomic design for comfortable use.

Figure 2: Illustration of attaching the handle assembly to the lawn mower, showing the ergonomic grip.

4.2. Grass Collection Box Assembly

Assemble the grass collection box according to the instructions provided with the box components. Once assembled, it can be easily attached to the rear of the mower.

Figure 3: A hand demonstrating the attachment of the grass collection box to the rear of the mower.

4.3. Adjusting Cutting Height

The mower offers 5 cutting height positions. Adjust the cutting height using the lever located on the side of the mower to suit your lawn's needs. For best results, avoid cutting more than one-third of the grass blade length at a time.

Figure 4: A close-up of a hand operating the orange lever to adjust the cutting height of the mower.

5. Operating Instructions

5.1. Starting the Mower

1. Ensure the power cord is securely connected to a suitable outdoor power outlet and to the mower.
2. Press and hold the safety button, then pull the bail lever towards the handle. The motor will start.
3. Release the safety button once the motor is running.

5.2. Mowing Your Lawn

Push the mower forward in overlapping rows. For an even cut, slightly overlap each pass. Mow across slopes, not up and down. Avoid sudden turns.

Figure 5: A man demonstrating the use of the Gardena PowerMax lawn mower on a green lawn, showing proper posture and operation.

Figure 6: A detailed view of the mower's wheels traversing freshly cut grass, highlighting the cutting action.

5.3. Mulching Function

To activate the mulching function, ensure the grass collection box is removed and the mulching plug is securely inserted into the discharge opening. The mower will then finely chop grass clippings and return them to the lawn as natural fertilizer.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Gardena PowerMax 1800/42.

6.1. Cleaning

• Always disconnect the power before cleaning.
• Clean the mower deck and blade area after each use to prevent grass buildup. Use a brush or damp cloth.
• Do not use high-pressure water jets directly on the motor or electrical components.

6.2. Blade Care

Regularly inspect the cutting blade for sharpness and damage. A sharp blade ensures a clean cut and reduces strain on the motor. If the blade is dull or damaged, it should be sharpened or replaced by a qualified service technician.

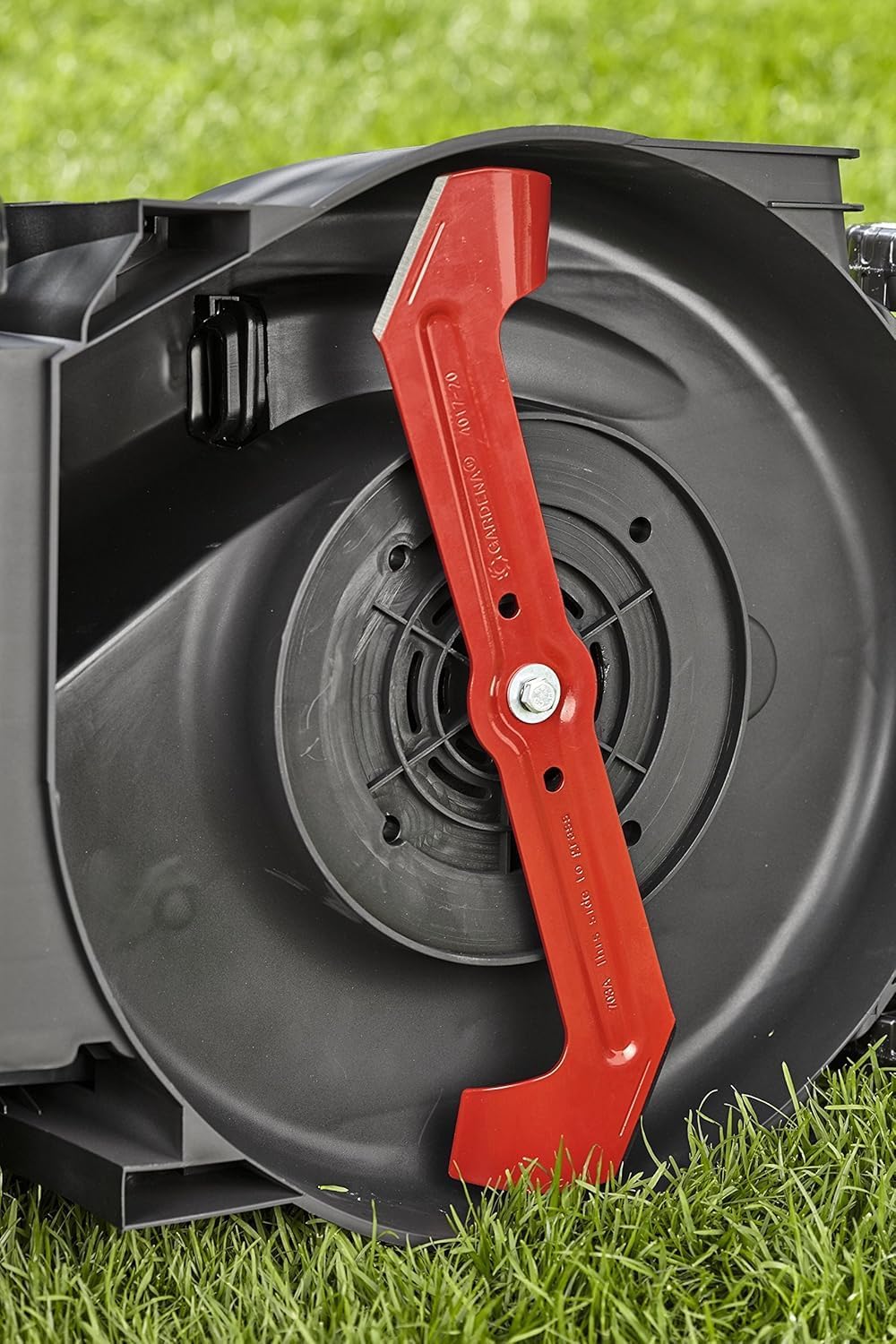

Figure 7: A detailed view of the red cutting blade underneath the mower deck, emphasizing its importance for effective cutting.

6.3. Storage

Store the lawn mower in a dry, protected area, away from direct sunlight and extreme temperatures. The handle can be folded for compact storage.

7. Troubleshooting

This section addresses common issues you might encounter with your lawn mower.

8. Technical Specifications

9. Warranty and Customer Support

For warranty information, please refer to the documentation included with your purchase or visit the official Gardena website. For technical assistance, spare parts, or service inquiries, please contact Gardena customer support through their official channels.

You can also visit the Gardena Store on Amazon for more product information and support resources.
