Lorelli 1028013 Digital Video Baby Monitor User Manual

1. Introduction

Thank you for choosing the Lorelli 1028013 Digital Video Baby Monitor. This device is designed to provide parents with peace of mind by allowing continuous monitoring of their child. Featuring advanced digital technology, this monitor ensures a secure and clear connection. Please read this manual thoroughly before using the product to ensure proper operation and safety.

2. Product Overview

The Lorelli 1028013 Digital Video Baby Monitor is a 100% digital, FHSS (Frequency Hopping Spread Spectrum) system designed for low interference and secure communication. It includes a parent unit with an LCD screen and a baby unit (camera).

Key Features:

• 2.4-inch color LCD screen on the parent unit.
• Automatic infrared night vision for clear monitoring in low light.
• Up to 300 meters (approx. 984 feet) outdoor transmission range.
• Two-way communication (talk-back function).
• VOX function (Voice Operated eXchange) for sound-activated monitoring.
• Baby room temperature sensor.
• Built-in lullabies.
• Feeding alarm.
• Low battery alert and out-of-range alert.
• High/low temperature alert.
• Rechargeable batteries for both camera and monitor units.
• Portable parent unit with belt clip and stand.

Components:

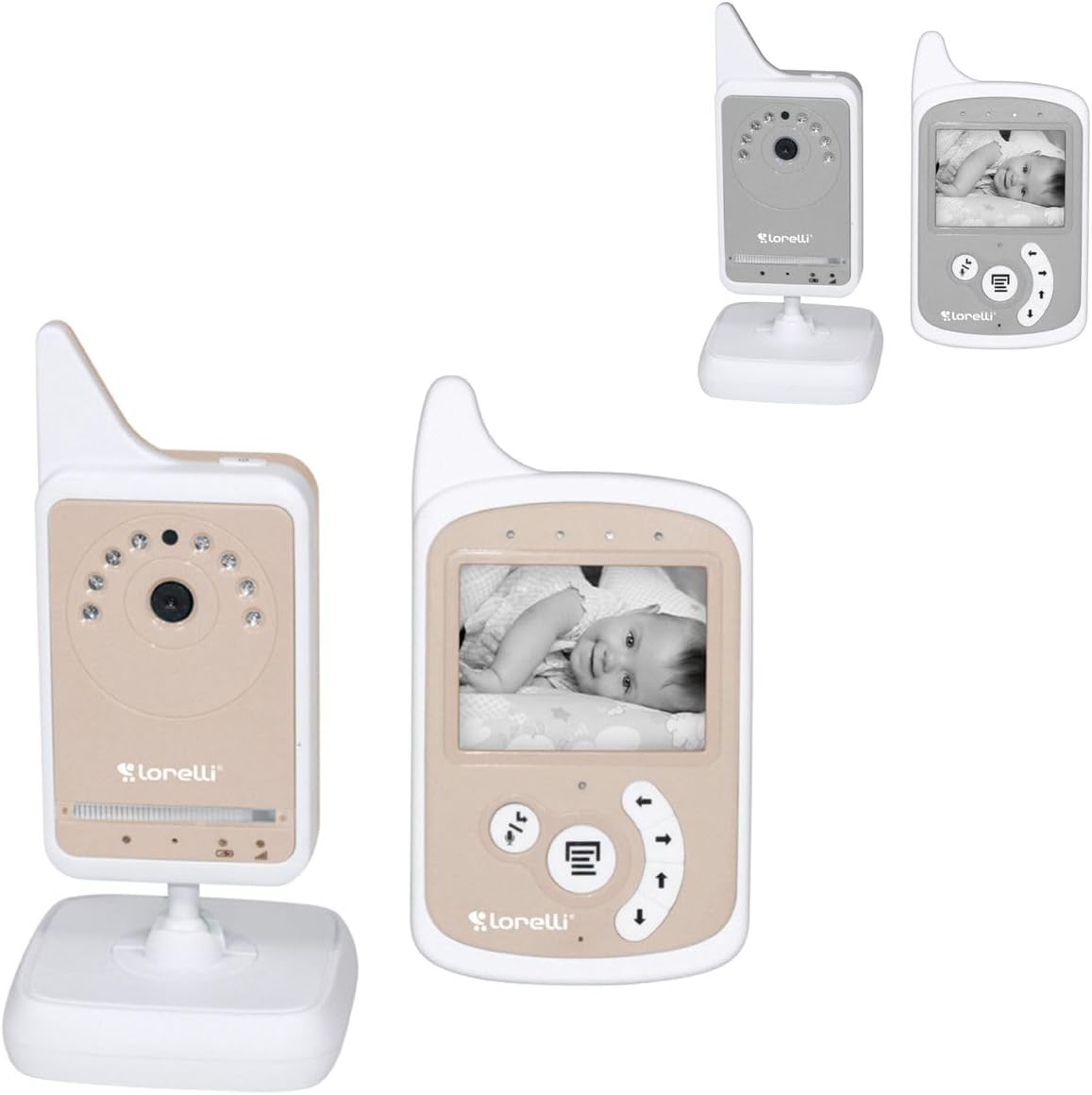

Image 1: The Lorelli 1028013 Digital Video Baby Monitor, displaying both the baby unit (camera) and the parent unit (monitor) with a baby's image on its screen. The units are beige and white.

Image 2: A closer view of the Lorelli 1028013 baby monitor units. The baby unit features an array of infrared LEDs around the camera lens, and the parent unit shows a clear image of a sleeping baby on its screen, with control buttons below.

3. Safety Warnings

WARNING:

• This product is not a toy. Keep out of reach of children.
• Not suitable for children under 1 month of age.
• Strangulation Hazard: Keep all cords out of reach of children (at least 1 meter / 3 feet away). Never place the camera or cords within a crib or playpen.
• Choking Hazard: This product contains small parts. Adult assembly required.
• Electric Shock Hazard: Do not expose the product to water or moisture. Do not open the units.
• Use only the provided power adapters.
• Ensure proper ventilation around both units. Do not cover them with cloth or other materials.
• This product is intended for indoor use only.

4. Setup

4.1 Charging the Units

1. Connect the power adapter to the Baby Unit (camera) and plug it into a wall outlet.
2. Connect the power adapter to the Parent Unit (monitor) and plug it into a wall outlet.
3. Charge both units for at least 8 hours before first use to ensure optimal battery life. The battery indicator on the Parent Unit will show charging status.
4. Both units come with rechargeable batteries. The Parent Unit is designed for portability, and the Baby Unit can also operate on battery power for short periods or during power outages.

4.2 Positioning the Baby Unit (Camera)

1. Place the Baby Unit on a flat surface in the baby's room, such as a dresser or shelf.
2. Ensure the camera has a clear, unobstructed view of the baby's crib or sleeping area.
3. Important: Keep the Baby Unit and its power cord at least 1 meter (3 feet) away from the crib or playpen to prevent strangulation hazards.
4. Avoid placing the unit in direct sunlight or near heat sources.

4.3 Positioning the Parent Unit (Monitor)

1. Place the Parent Unit in a location where you can easily see and hear your baby.
2. The unit has a built-in stand for tabletop use and a belt clip for portability.
3. For optimal signal, try to minimize obstacles between the Parent Unit and Baby Unit. The maximum range is 300 meters in open areas; walls and furniture will reduce this range.

5. Operating Instructions

5.1 Powering On/Off

• To turn on the Baby Unit, slide the ON/OFF switch to the "ON" position.
• To turn on the Parent Unit, press and hold the Power button until the screen illuminates.
• To turn off either unit, reverse the process.

5.2 Basic Monitoring

Once both units are powered on and within range, the Parent Unit will automatically connect to the Baby Unit and display live video and audio from your baby's room.

• Volume Control: Use the UP/DOWN arrow buttons on the Parent Unit to adjust the listening volume.
• Brightness Control: Refer to the Parent Unit's menu for screen brightness adjustments.

5.3 VOX Function (Voice Operated eXchange)

The VOX function puts the Parent Unit into standby mode when no sound is detected from the baby's room, conserving battery power. When the Baby Unit detects sound above a certain threshold, the Parent Unit's screen will activate, and audio will resume.

• Activate/Deactivate VOX mode via the Parent Unit's menu.
• Adjust VOX sensitivity (low, medium, high) to suit your environment. Higher sensitivity means the monitor will activate with softer sounds.

5.4 Two-Way Communication (Talk-Back)

To speak to your baby through the Baby Unit:

1. Press and hold the Talk button (often represented by a microphone icon) on the Parent Unit.
2. Speak clearly into the microphone on the Parent Unit.
3. Release the Talk button to resume listening to your baby.

5.5 Night Vision

The Baby Unit is equipped with automatic infrared night vision. When the room light is low, the camera will automatically switch to night vision mode, providing a clear black and white image on the Parent Unit's screen.

5.6 Lullabies

To play lullabies to your baby:

1. Access the Lullaby menu on the Parent Unit.
2. Select a lullaby to play. You may also have options to loop or stop playback.

5.7 Temperature Monitoring and Alerts

The Baby Unit has a built-in temperature sensor that displays the room temperature on the Parent Unit's screen. You can set high and low temperature alert thresholds in the Parent Unit's menu. If the temperature goes outside these limits, an alarm will sound.

5.8 Other Alerts

• Feeding Alarm: Set reminders for feeding times through the Parent Unit's menu.
• Low Battery Alert: An icon and/or audible alert will indicate when the Parent Unit's battery is low and needs recharging.
• Out-of-Range Alert: If the Parent Unit loses connection with the Baby Unit (e.g., due to distance or interference), an alert will sound. Move the units closer together or reduce obstacles.

Image 3: A young child holding the Lorelli 1028013 parent unit, demonstrating its portable size. A baby's crib is visible in the background, indicating the monitor's use in a nursery setting.

6. Maintenance

• Cleaning: Wipe the units with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Battery Care: To prolong battery life, fully charge the units before first use and avoid completely draining the batteries regularly. If storing the unit for an extended period, charge the batteries every few months.
• Storage: Store the monitor in a cool, dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

8. Specifications

• Model: Lorelli 1028013
• Connectivity Technology: Wireless (FHSS Digital)
• Screen Size: 2.4-inch Color LCD
• Range: Up to 300 meters (open field)
• Special Features: Lullabies, Night Vision, VOX, Two-Way Talk, Temperature Sensor, Various Alerts
• Power Source: Battery Powered (Rechargeable batteries included)
• Dimensions (L x W x H): Approximately 30 x 30 x 30 cm (for packaging/overall product, individual units are smaller)
• Weight: Approximately 300 grams (total product)
• Recommended Age: 1 month and up

9. Warranty and Support

Specific warranty information is not provided in the product details. Please refer to the retailer or manufacturer's website for detailed warranty terms and conditions.

For technical support or further assistance, please contact Lorelli customer service or your point of purchase. Keep your purchase receipt as proof of purchase.
