1. Introduction
This manual provides comprehensive instructions for the SHENGLE Power Button Start Switch, Model 687879549047. This replacement part is specifically designed for children's electric ride-on cars, ensuring reliable power control. Please read this manual thoroughly before installation and operation to ensure proper function and safety.
Figure 1: SHENGLE Power Button Start Switch (Front View)
2. Product Features
- Type: Power Button Start Switch.
- Application: Designed for kids' electric ride-on cars and similar electric vehicles.
- Connectors: Features 4 connectors for secure and straightforward wiring.
- Ease of Replacement: Engineered for easy replacement of existing switches.
- Design: Red push-button with a clear power symbol for intuitive operation.
3. Installation Guide
Follow these steps to properly install the SHENGLE Power Button Start Switch. Ensure the electric ride-on car is turned off and disconnected from its power source before beginning any installation work.
- Safety First: Disconnect the battery from the electric ride-on car to prevent accidental power-on or electrical shock.
- Locate Existing Switch: Identify the current power button switch on the vehicle's dashboard or control panel.
- Remove Old Switch: Carefully disconnect the wiring from the old switch. Note the position of each wire for correct re-connection. Gently unclip or unscrew the old switch from its mounting hole.
- Prepare New Switch: The SHENGLE Power Button Start Switch has 4 terminals. Ensure they are clean and free from debris.
- Connect Wiring: Connect the wires to the corresponding terminals on the new switch. Refer to the wiring diagram of your specific ride-on car if available, or match the connections as they were on the old switch.
- Mount New Switch: Insert the new switch into the mounting hole. Ensure it clicks securely into place or is fastened with any provided retaining nuts/clips.
- Test Connection: Reconnect the battery. Briefly test the switch to ensure it powers the vehicle on and off correctly before fully reassembling the vehicle.

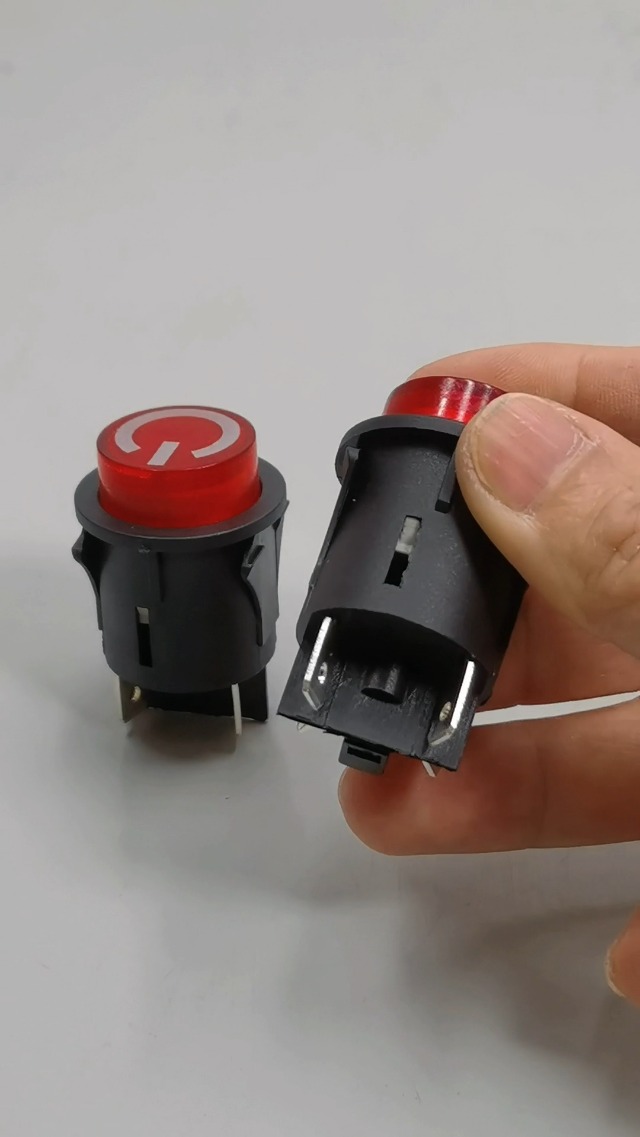

Video 1: Demonstration of the Power Button Switch and its terminals, showing its physical characteristics and how it operates.
Figure 2: Close-up of the SHENGLE Power Button Start Switch, highlighting its terminals.
Video 2: Overview of the Electric Vehicle Kids Power Wheels Power Switch, demonstrating its function and appearance.

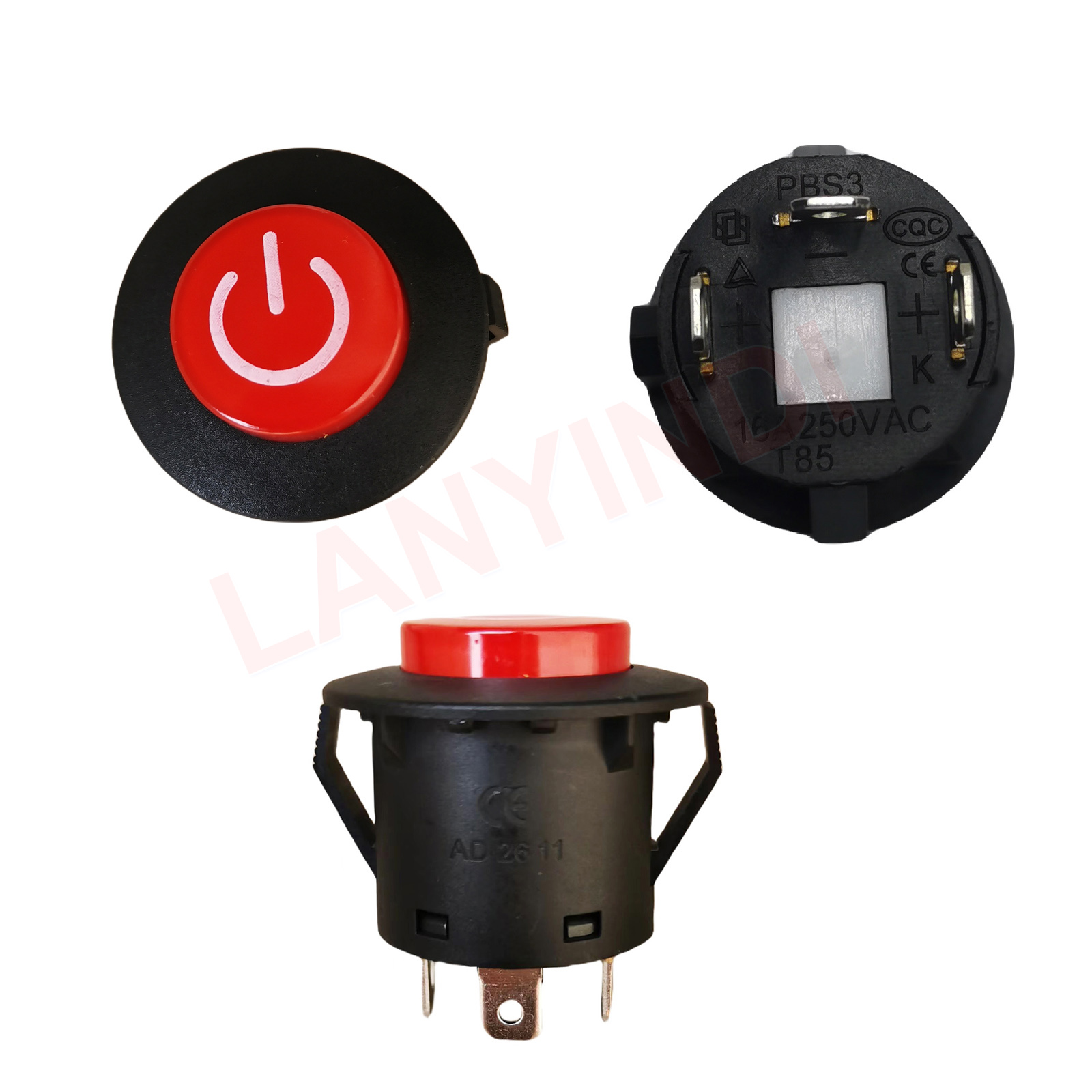

Figure 3: Various views of the Power Button Start Switch, including its internal components and terminals.
4. Operating Instructions
The SHENGLE Power Button Start Switch operates as a simple push-button mechanism for controlling the power to your child's electric ride-on car.
- To Turn On: Press the red button firmly. The vehicle should power on.
- To Turn Off: Press the red button firmly again. The vehicle should power off.
Ensure the vehicle's battery is charged and properly connected for the switch to function.
5. Maintenance
Proper maintenance ensures the longevity and reliable operation of your power button switch.
- Cleaning: Periodically wipe the surface of the button with a soft, dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners.
- Connection Check: Occasionally inspect the wiring connections to the switch to ensure they are secure and free from corrosion.
- Avoid Force: Do not apply excessive force when pressing the button, as this can damage the internal mechanism.
- Environmental Protection: While the switch has an IP65 rating for dust and water resistance, avoid prolonged exposure to extreme weather conditions or direct water jets.
6. Troubleshooting
If you encounter issues with your SHENGLE Power Button Start Switch, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Switch does not respond (vehicle does not turn on/off). |
|
|
| Intermittent power (vehicle turns on/off unexpectedly). |
|
|
If troubleshooting steps do not resolve the issue, contact customer support or a qualified technician.
7. Specifications
| Brand | SHENGLE |
| Model Number | 687879549047 |
| Operation Mode | Manual |
| Contact Type | Normally Open |
| Connector Type | Button |
| Terminal | Button |
| Item Dimensions (L x W x H) | 3.94 x 3.15 x 3.54 inches |
| Circuit Type | 1-way |
| Actuator Type | Push Button |
| Contact Material | Copper |
| International Protection Rating | IP65 |
| Number of Positions | 4 |
| Controller Type | Push Button |
| Control Method | Touch |
| Connectivity Protocol | Wi-Fi (Note: This typically refers to the vehicle's overall system, not the switch itself.) |
| Color | Red |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Manufacturer | Chunxin Factory |
| Vehicle Service Type | Kids Electric Ride On Car |
| Compatible Devices | Kids Electric Ride On Cars |
| UPC | 687879549047 |
| Item Weight | 0.81 ounces |
| Recommended Age | 24 months - 14 years |
| Switch Type | Push Button |
| Material | Copper, Plastic |
| Mounting Type | Flush Mount |
8. Warranty and Support
For warranty information or technical support regarding your SHENGLE Power Button Start Switch, please refer to the original purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.
For general inquiries or assistance, you may also visit the SHENGLE brand's official website or contact their customer service department if available.
