Introduction
This instruction manual provides detailed guidance for the assembly, painting, and care of your Trumpeter 1:35 scale M270/A1 US Multiple Launch Rocket System model kit. This kit is designed for model enthusiasts aged 14 and above, offering a highly detailed and engaging building experience.
Illustration of the completed M270/A1 US Multiple Launch Rocket System model.
Safety Information and Important Notes
WARNING: This product is not a toy. It contains small parts and sharp components. It is suitable for ages 14 and up only. Adult supervision is recommended for younger builders within the age range.
- Study and understand these instructions thoroughly before beginning assembly.
- When working with photo-etch parts, use a modeling knife or photo-etch sprue cutter carefully to avoid damage or loss of small parts.
- Exercise extreme caution when handling photo-etch parts to prevent injury.
- Apply instant cement sparingly to photo-etch parts where indicated.
- Glue and paint are not included in the kit. Use plastic cement and hobby paints only. A color guide for purchasing paint is provided within the kit instructions.
Important 'Read Before Assembly' guidelines and recommended tools.
Kit Contents
Your Trumpeter M270/A1 model kit includes a variety of plastic sprues and components necessary for assembly. Please verify all parts are present before beginning construction.
- Multiple plastic sprues containing over 900 detailed parts.
- Main body and chassis components.
- Decal sheet for markings and insignia.
- Detailed instruction manual with assembly steps and painting guide.
Main body and chassis components.
Example of a detailed plastic sprue.
Additional plastic sprue with various parts.

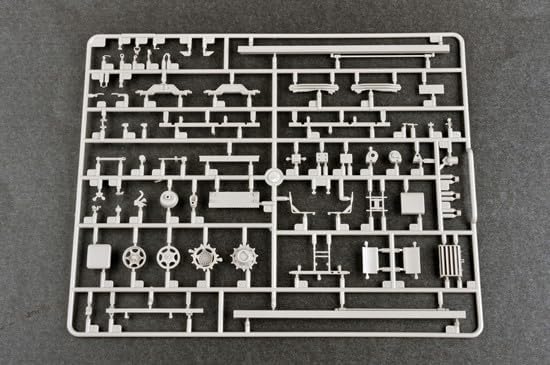

Sprue with intricate mechanical components.
Assembly Instructions
The assembly of this detailed model kit requires careful attention to the included instruction booklet. Follow the step-by-step diagrams and text provided in the physical manual for precise construction.
Recommended Tools (Not Included):
- Plastic cement and instant cements
- Sprue cutters
- Long nose pliers
- Modeling knife
- Small files
- Tweezers
- Pin vise & scissors
- Soft cloth and sandpaper
Always dry-fit parts before applying adhesive to ensure proper alignment. Remove any excess plastic (flash) from parts using a modeling knife or file for a clean fit.
Painting and Decal Application
Once assembly is complete, or at stages indicated in the manual, you can proceed with painting and decal application to achieve a realistic finish.
Painting Guide:
Refer to the color guide provided in your instruction manual for recommended paint colors and camouflage patterns. Use hobby-specific paints for best results.

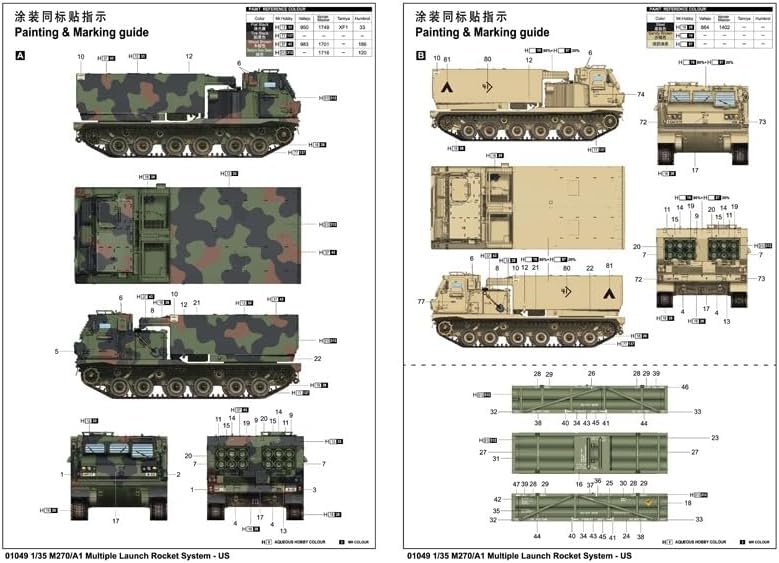

Painting and marking guide example 1.
Painting and marking guide example 2.
Decal Application:
The kit includes a decal sheet for adding authentic markings. Follow these steps for proper application:
- Carefully cut the desired decals from the sheet.
- Dip the decal in warm water for approximately 10 seconds, then place it on a clean cloth.
- Hold the decal backing sheet edge and gently slide the decal onto the model in its proper position.
- While the decal is still wet, it can be adjusted for better fit by gently dampening it with your finger.
- Once positioned correctly, gently press the decal down with a soft cloth to remove excess water and air bubbles.
- Allow the decal to dry completely before handling the model further.
Included decal sheet for authentic markings.
Care of Finished Model
To maintain the appearance of your finished model, keep it in a clean, dust-free environment. Avoid direct sunlight, which can cause paint fading or decal deterioration over time. Handle the model carefully to prevent damage to delicate parts.
Specifications
| Specification | Detail |
|---|---|
| Brand | Trumpeter |
| Model Name | M270/A1 Multiple Launch Rocket System-US |
| Item Model Number | 751049 |
| Scale | 1:35 |
| Age Range (Description) | 14+ |
| Material | Plastic, Metal |
| Number of Pieces | 970 |
| Item Weight | 3.52 ounces (0.1 Kilograms) |
| Release Date | March 1, 2018 |
Support
For further assistance or inquiries regarding your Trumpeter model kit, please refer to the contact information provided on the product packaging or visit the official Trumpeter website.
