ITM Multi Angle Drill Bit Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of the ITM Multi Angle Drill Bit, Model 314MA4064. This Forstner-style drill bit is designed for precision work in various woodworking applications, offering directional control for cutting, milling, drilling, and routing tasks. Please read this manual thoroughly before operation and retain it for future reference.

2. Safety Instructions

Always observe general power tool safety guidelines when using this drill bit. Failure to follow these instructions may result in injury or damage to the tool or workpiece.

• Eye Protection: Always wear appropriate eye protection (safety glasses or goggles) to shield against flying debris.
• Hand Protection: Wear gloves to protect hands from splinters and sharp edges.
• Secure Workpiece: Ensure the material being worked on is securely clamped or held to prevent movement during drilling.
• Correct Speed: Use the appropriate drill speed for the material and bit size. Refer to your drill's manual for recommended settings.
• Inspect Bit: Before each use, inspect the drill bit for any signs of damage, dullness, or wear. Do not use damaged bits.
• Clearance: Keep hands and body clear of the rotating drill bit during operation.
• Ventilation: Work in a well-ventilated area to avoid inhaling wood dust.

3. Product Overview

The ITM Multi Angle Drill Bit is a specialized tool designed for versatile material removal in various directions. Its unique design allows for precise control in applications beyond standard drilling.

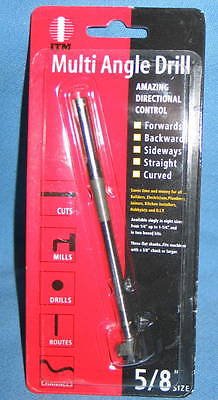

Figure 1: The ITM Multi Angle Drill Bit (Model 314MA4064) in its original packaging. The packaging highlights its multi-directional control capabilities and various functions such as cutting, milling, drilling, and routing. The bit size is indicated as 5/8 inch.

Key Features:

• Multi-Directional Control: Capable of movement Forwards, Backward, Sideways, Straight, and Curved during operation.
• Versatile Applications: Suitable for cutting, milling, drilling, and routing.
• Material Compatibility: Designed for use in soft woods, hardwoods, chipboard, MDF, and other soft materials.
• Chuck Compatibility: Can be used with any drill featuring a 3/8-inch chuck or larger.

4. Setup

Proper setup ensures safe and efficient operation of the drill bit.

1. Select Appropriate Drill: Ensure your drill has a chuck size of 3/8 inch or larger.
2. Insert Bit: Open the drill chuck jaws sufficiently. Insert the straight shank of the ITM Multi Angle Drill Bit into the chuck, ensuring it is seated as deeply as possible without touching the back of the chuck.
3. Tighten Chuck: Securely tighten the drill chuck using the chuck key (if applicable) or by hand until the bit is firmly gripped. Verify that the bit is centered and does not wobble.
4. Test Run: Before applying to a workpiece, briefly run the drill at a low speed to confirm the bit is securely fastened and runs true.

5. Operating Instructions

The ITM Multi Angle Drill Bit offers unique capabilities for various woodworking tasks.

General Operation:

1. Material Preparation: Securely clamp your workpiece to a stable surface. Mark the desired starting point for your cut or hole.
2. Speed Selection: Set your drill to an appropriate speed for the material. Harder materials generally require slower speeds, while softer materials can tolerate higher speeds.
3. Initiate Cut: Start the drill before making contact with the workpiece. Gently bring the rotating bit into contact with the material.
4. Apply Pressure: Apply steady, even pressure. Allow the bit to cut; do not force it, as this can lead to overheating, dulling, or breakage.
5. Clear Chips: Periodically withdraw the bit slightly to clear chips and dust from the cutting area, especially when drilling deep holes.

Multi-Angle Functionality:

This drill bit's design allows for directional control, enabling tasks such as routing and milling that are not typically possible with standard drill bits.

• Directional Control: Once the bit has penetrated the material, you can carefully guide it Forwards, Backward, Sideways, Straight, or in a Curved path to create slots, grooves, or irregular shapes.
• Controlled Movement: Always maintain firm control of the drill. Make small, controlled movements to achieve the desired shape. Avoid sudden or jerky motions.
• Depth Control: Adjust the depth of cut by controlling the pressure and the extent to which the bit is engaged in the material.
• Cooling: For extended cutting or routing, allow the bit to cool periodically to prevent overheating.

6. Maintenance

Regular maintenance will extend the life and performance of your ITM Multi Angle Drill Bit.

• Cleaning: After each use, clean the drill bit to remove wood dust, resin, and debris. A brush or compressed air can be used.
• Inspection: Regularly inspect the cutting edges for signs of dullness, nicks, or damage. A sharp bit performs better and is safer to use.
• Storage: Store the drill bit in a dry place to prevent rust. Keep it in its original packaging or a protective case to prevent damage to the cutting edges.
• Lubrication: A light coat of machine oil can be applied to the bit for rust prevention, especially during long-term storage.

7. Troubleshooting

If you encounter issues during operation, consider the following common problems and solutions:

• Poor Cut Quality / Excessive Tearing:
  Possible Cause: Dull bit, incorrect speed, or excessive feed pressure.
  Solution: Inspect bit for sharpness; replace if dull. Adjust drill speed. Reduce feed pressure.
• Bit Overheating / Smoking:
  Possible Cause: Too high speed, insufficient chip clearance, or dull bit.
  Solution: Reduce drill speed. Clear chips more frequently. Replace dull bit.
• Bit Getting Stuck:
  Possible Cause: Excessive pressure, insufficient chip clearance, or incorrect drill speed.
  Solution: Reduce pressure. Clear chips. Adjust drill speed.
• Excessive Vibration:
  Possible Cause: Bit not properly secured in chuck, bent bit, or damaged drill.
  Solution: Re-tighten chuck. Inspect bit for bends; replace if necessary. Check drill for damage.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage, technical support, or replacement parts for your ITM Multi Angle Drill Bit, please contact the manufacturer directly. Refer to the product packaging or the ITM official website for contact details.
