Project Source 6-Pack 10-inch Brushed Nickel Flush Mount Light Instruction Manual

Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Project Source 6-Pack 10-inch Brushed Nickel Flush Mount Lights. These fixtures feature a brushed nickel finish and frosted glass shades, designed for indoor use. Please read all instructions carefully before beginning installation and retain this manual for future reference.

Important Safety Information

Always follow basic safety precautions when installing and operating electrical fixtures to reduce the risk of fire, electric shock, and personal injury.

• WARNING: Risk of electric shock. Disconnect power at the main circuit breaker or fuse box before installation, servicing, or changing bulbs.
• Consult a qualified electrician if you are unsure about the installation process or have questions regarding electrical wiring.
• Do not exceed the maximum wattage specified for the bulbs (60 watts per bulb).
• Ensure all electrical connections are secure and properly insulated.
• This fixture is designed for indoor use only and is not water resistant. Do not install in wet locations.
• Wear safety glasses during installation.

Package Contents

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact customer service.

• 6 x Flush Mount Light Fixtures (Brushed Nickel)
• 6 x Frosted Glass Shades
• Mounting Hardware (e.g., screws, wire nuts, mounting bracket)

Note: Six (6) A19 60-watt maximum bulbs are required per fixture and are not included.

Setup and Installation

Follow these steps carefully to install your flush mount light fixture. Repeat for each of the six fixtures.

1. Step 1: Prepare for Installation. Turn off the power to the junction box at the circuit breaker or fuse box. Ensure the power is off by testing the existing light switch.
2. Step 2: Attach Mounting Bracket. Secure the fixture's mounting bracket to the ceiling junction box using the screws provided. Ensure it is firmly attached.
3. Step 3: Make Electrical Connections. Carefully connect the wires from the fixture to the corresponding wires from the junction box using the provided wire nuts. Typically, black (hot) to black, white (neutral) to white, and bare copper or green (ground) to bare copper or green. Ensure all connections are tight and secure.
4. Step 4: Mount Fixture to Ceiling. Carefully push the wired fixture base up to the ceiling, aligning the screw holes on the fixture with the mounting bracket. Secure the fixture to the bracket using the decorative nuts or screws provided.
5. Step 5: Install Bulbs. Screw in six (6) A19 60-watt maximum bulbs (not included) into the sockets of the fixture.
6. Step 6: Attach Glass Shade. Carefully place the frosted glass shade onto the fixture. Secure it by screwing the finial onto the threaded rod at the bottom of the fixture until the shade is snug. Do not overtighten.

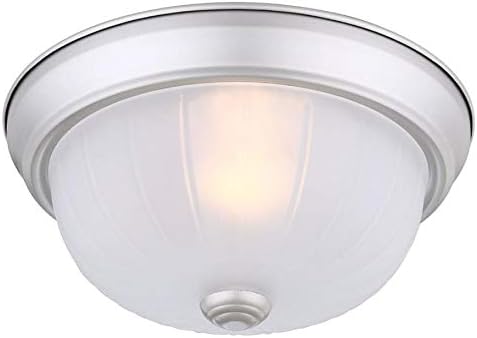

Figure 1: Assembled Flush Mount Light Fixture. This image shows a single 10-inch flush mount light fixture with its brushed nickel base and frosted glass shade, ready for installation.

Figure 2: Fixture Base and Mounting Area. A detailed view of the brushed nickel base of the light fixture, highlighting the rim where the glass shade rests and the mounting points.

Figure 3: Finial for Securing Glass Shade. A close-up of the decorative finial, which is used to secure the frosted glass shade to the light fixture's base.

Operating Instructions

Once all fixtures are securely installed and bulbs are in place, restore power at the main circuit breaker. The flush mount lights are operated by a standard wall switch (not included) connected to the circuit. Simply toggle the wall switch to the 'ON' position for illumination and 'OFF' to turn the lights off.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your light fixtures.

• Cleaning: To clean the fixture, ensure the power is turned off at the circuit breaker. Wipe the brushed nickel finish and glass shade with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
• Bulb Replacement: Before replacing bulbs, turn off the power to the fixture at the circuit breaker and allow the bulbs to cool completely. Unscrew the finial and carefully remove the glass shade. Unscrew the old bulbs and replace them with new A19 60-watt maximum bulbs. Reattach the glass shade and secure it with the finial. Restore power.

Troubleshooting

If you encounter issues with your light fixture, refer to the following common problems and solutions:

• Light does not turn on:
  • Check that the power is on at the circuit breaker.
  • Ensure the wall switch is in the 'ON' position.
  • Verify that all wire connections are secure and properly made.
  • Confirm that the bulbs are screwed in tightly and are not burnt out.
• Light flickers:
  • Check for any loose wire connections within the fixture or junction box.
  • Ensure the bulbs are fully screwed in and are not faulty.
  • Verify that the bulbs are compatible with the fixture's specifications.

Specifications

Warranty and Support

For technical assistance, warranty claims, or to inquire about replacement parts, please contact Project Source customer service. Refer to your purchase documentation or the retailer's website for specific warranty terms and contact information. Keep your proof of purchase for any warranty claims.
