Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Ranch Hand Legend Series Full Width Black Front HD Bumper with Full Grille Guard, model FBD101BLRS. Engineered from one-piece diamond plate steel, this bumper offers robust protection and is designed as a direct replacement for your truck's factory bumper. Please read all instructions carefully before proceeding with installation or use.
Safety Information
Always prioritize safety during installation and maintenance. This product is heavy and requires multiple individuals or appropriate lifting equipment for safe handling. Failure to follow safety guidelines may result in injury or damage to property.
- Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- Ensure the vehicle is securely supported on a level surface before beginning work.
- Use proper lifting techniques or equipment when handling the bumper due to its significant weight (approximately 205 lbs / 104 kg).
- Be aware of potential interference with vehicle sensors (e.g., parking sensors) after installation.
What's in the Box
Verify that all components are present and undamaged before beginning installation.
- Ranch Hand Legend Series Full Width Black Front HD Bumper with Full Grille Guard (Model FBD101BLRS)
- Installation Hardware (bolts, nuts, washers - specific quantities may vary, refer to included hardware list if provided)
Note: Additional tools required for installation are not included.
Setup and Installation
The Ranch Hand Legend Series Bumper is designed for direct replacement of your vehicle's factory bumper. While no drilling is typically required for the main bumper installation, some modifications to existing components may be necessary.
Tools Required (Not Included):
- Socket Wrench Set
- Grinder or Saw (for cutting factory bolts, if necessary)
- Utility Knife or Shears (for trimming plastic splash shield, if necessary)
- Lifting Equipment (e.g., engine hoist, floor jack with support, or multiple assistants)
- Torque Wrench
Installation Steps:
- Prepare Vehicle: Park the vehicle on a level surface and engage the parking brake. Disconnect the negative terminal of the vehicle's battery.
- Remove Factory Bumper: Carefully remove the existing factory bumper. This typically involves unbolting it from the frame. Some models may require cutting or grinding of factory bolts or brackets for removal. If your vehicle has front sensors, carefully disconnect their wiring before removing the bumper.
- Prepare New Bumper: If your vehicle is equipped with front parking sensors, transfer them from the old bumper to the designated grommets on the new Ranch Hand bumper. It is recommended to secure these sensors with RTV silicone or adhesive to prevent them from dislodging, as they may not stay in place otherwise.
- Position New Bumper: With the assistance of others or appropriate lifting equipment, carefully lift and align the Ranch Hand bumper with the vehicle's frame mounting points.
- Secure Bumper: Install the provided hardware to secure the new bumper to the vehicle frame. Hand-tighten all bolts initially.
- Adjust and Torque: Once the bumper is loosely mounted, adjust its position for proper alignment. Then, progressively tighten all bolts to the manufacturer's specified torque settings.
- Trim Splash Shield (If Necessary): Some vehicles may require slight trimming of the inner fender plastic splash shield to ensure proper clearance and a clean appearance with the new bumper.
- Reconnect Sensors (If Applicable): Reconnect any front parking sensor wiring.
- Final Checks: Reconnect the vehicle's battery. Verify all connections are secure and that the bumper is firmly mounted.
Image 1: Ranch Hand Legend Series Bumper (FBD101BLRS) installed on a truck, showcasing its full width and grille guard.
Image 2: Front view of the Ranch Hand Legend Series Bumper, highlighting the diamond plate steel construction and grille design.

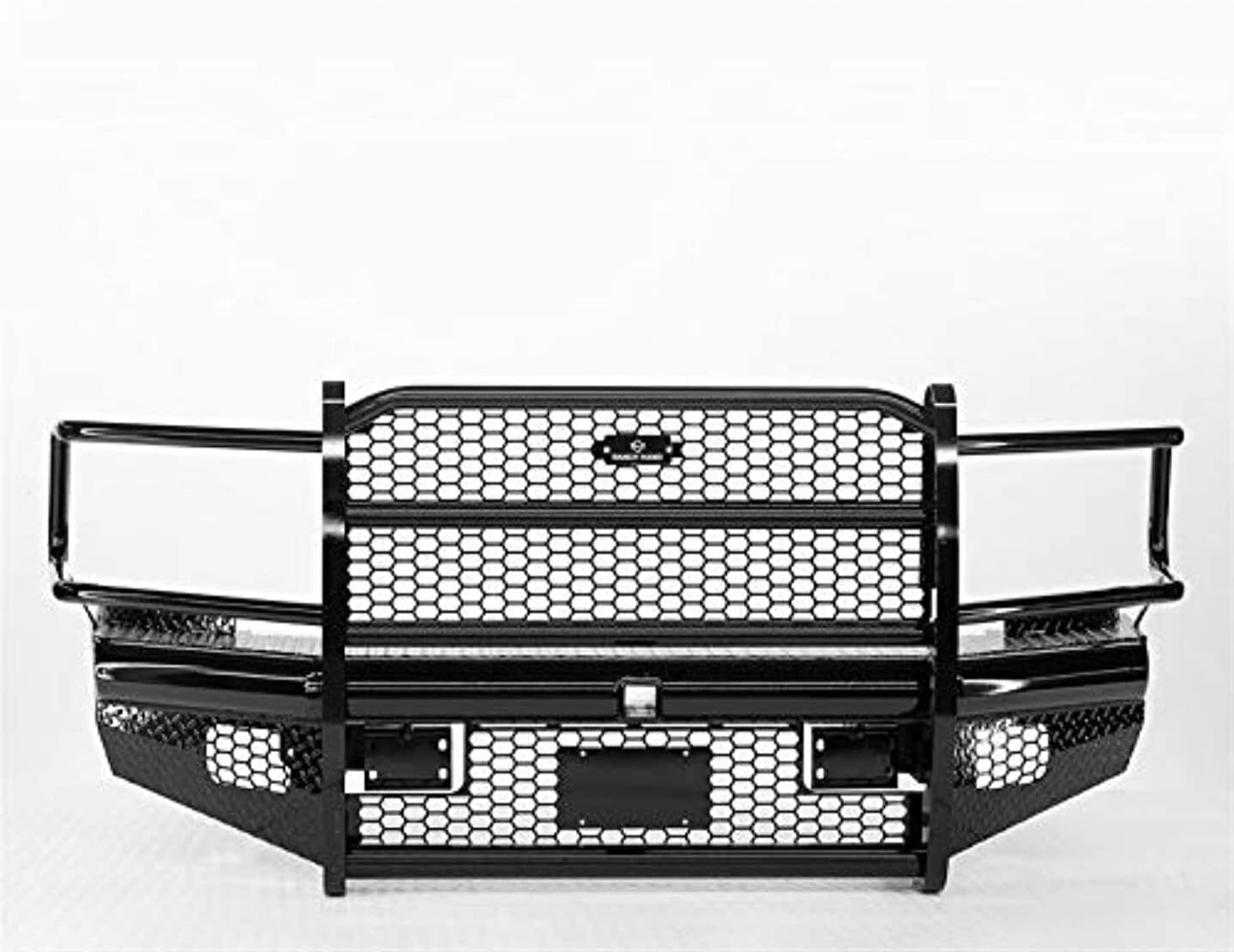

Image 3: Angled front view of the Ranch Hand Legend Series Bumper, showing the robust construction and integrated grille guard.
Image 4: Side angled view of the Ranch Hand Legend Series Bumper, illustrating the protective design extending to the sides.
Image 5: Close-up front view of the Ranch Hand Legend Series Bumper, detailing the mesh pattern and Ranch Hand logo.

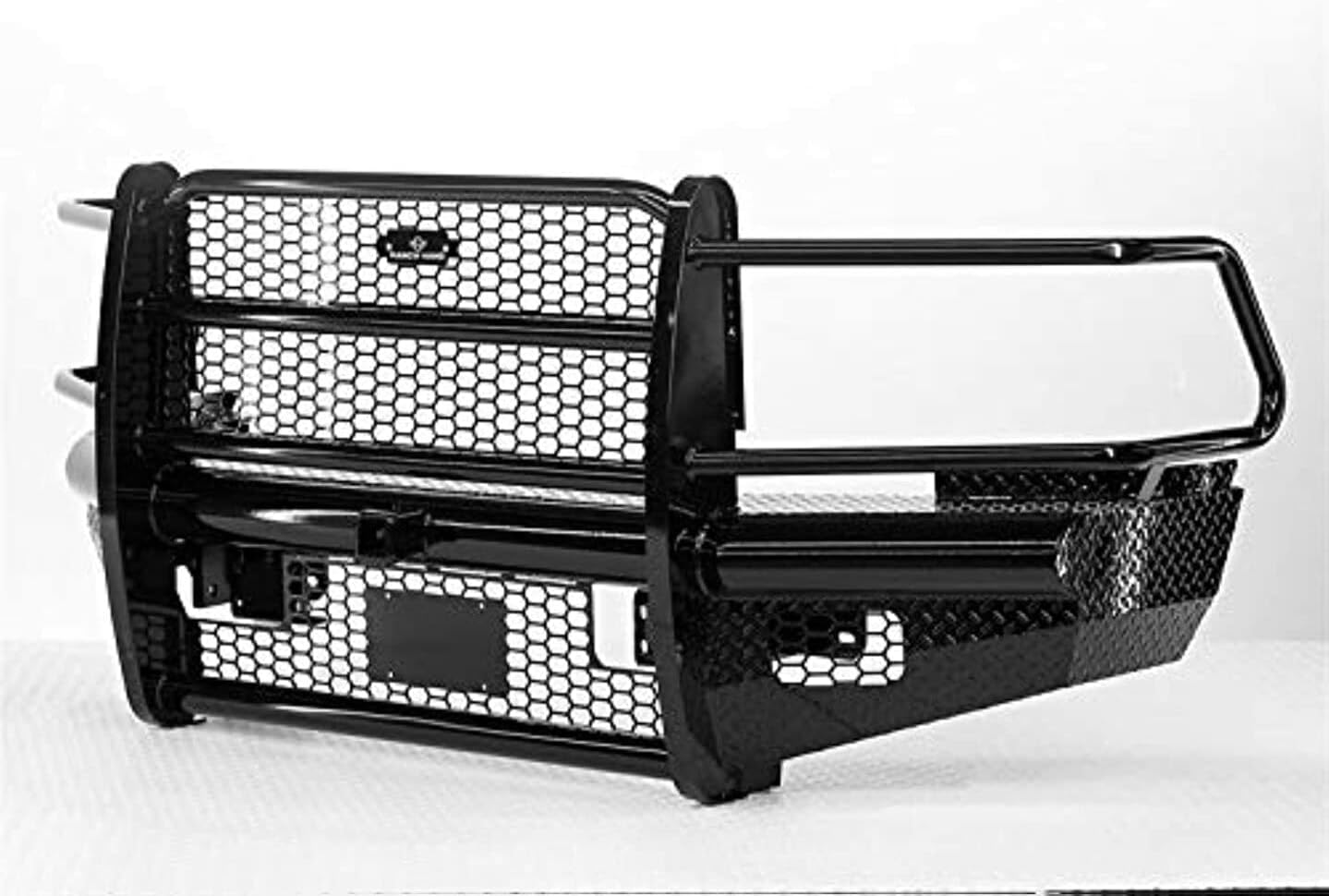

Image 6: Side view of the Ranch Hand Legend Series Bumper, showing the depth and protective bars.
Image 7: Another side view of the Ranch Hand Legend Series Bumper, emphasizing the robust construction.
Image 8: Rear view of the Ranch Hand Legend Series Bumper, showing the mounting points and internal structure.

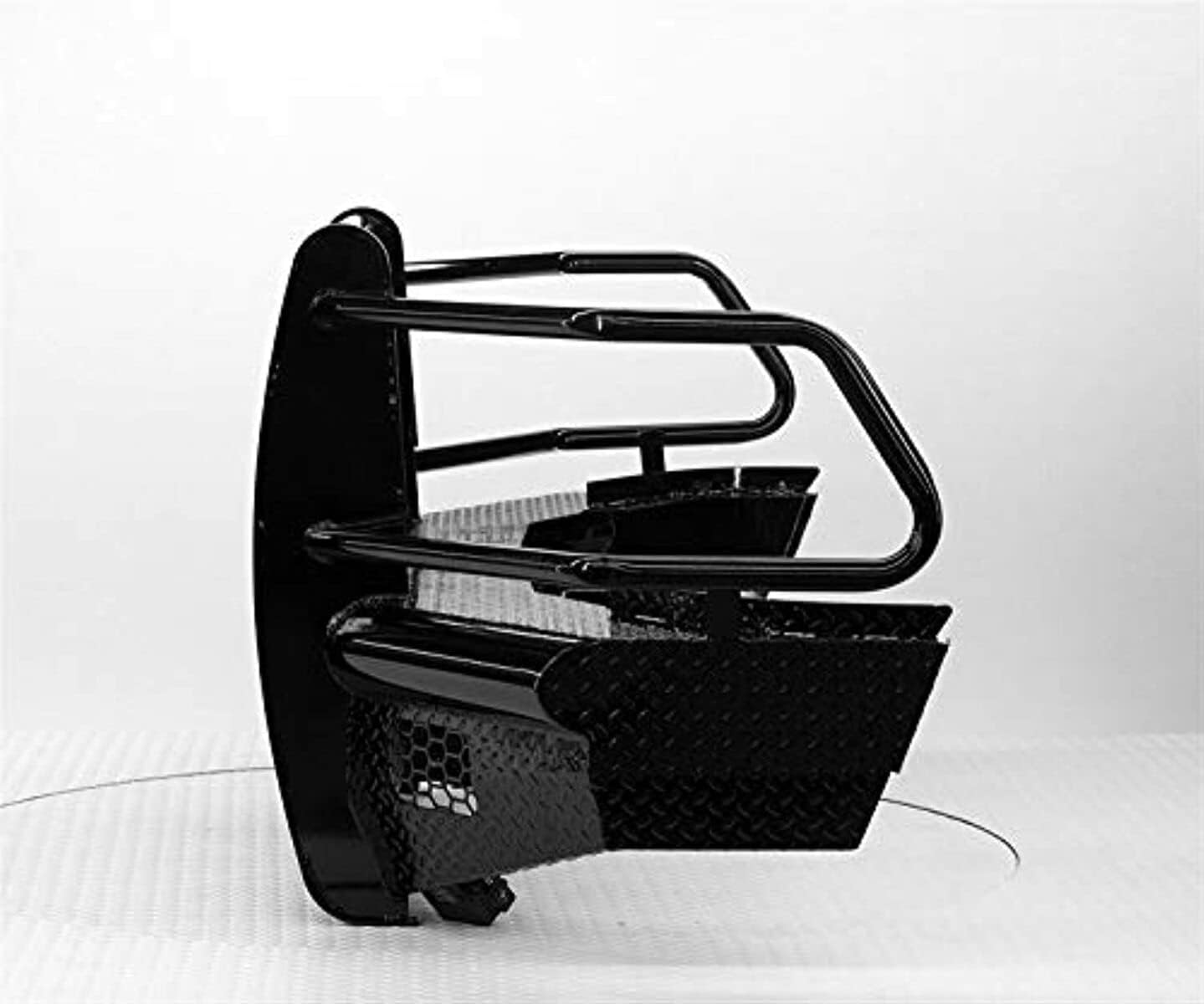

Image 9: Angled rear view of the Ranch Hand Legend Series Bumper, providing a different perspective of its design.

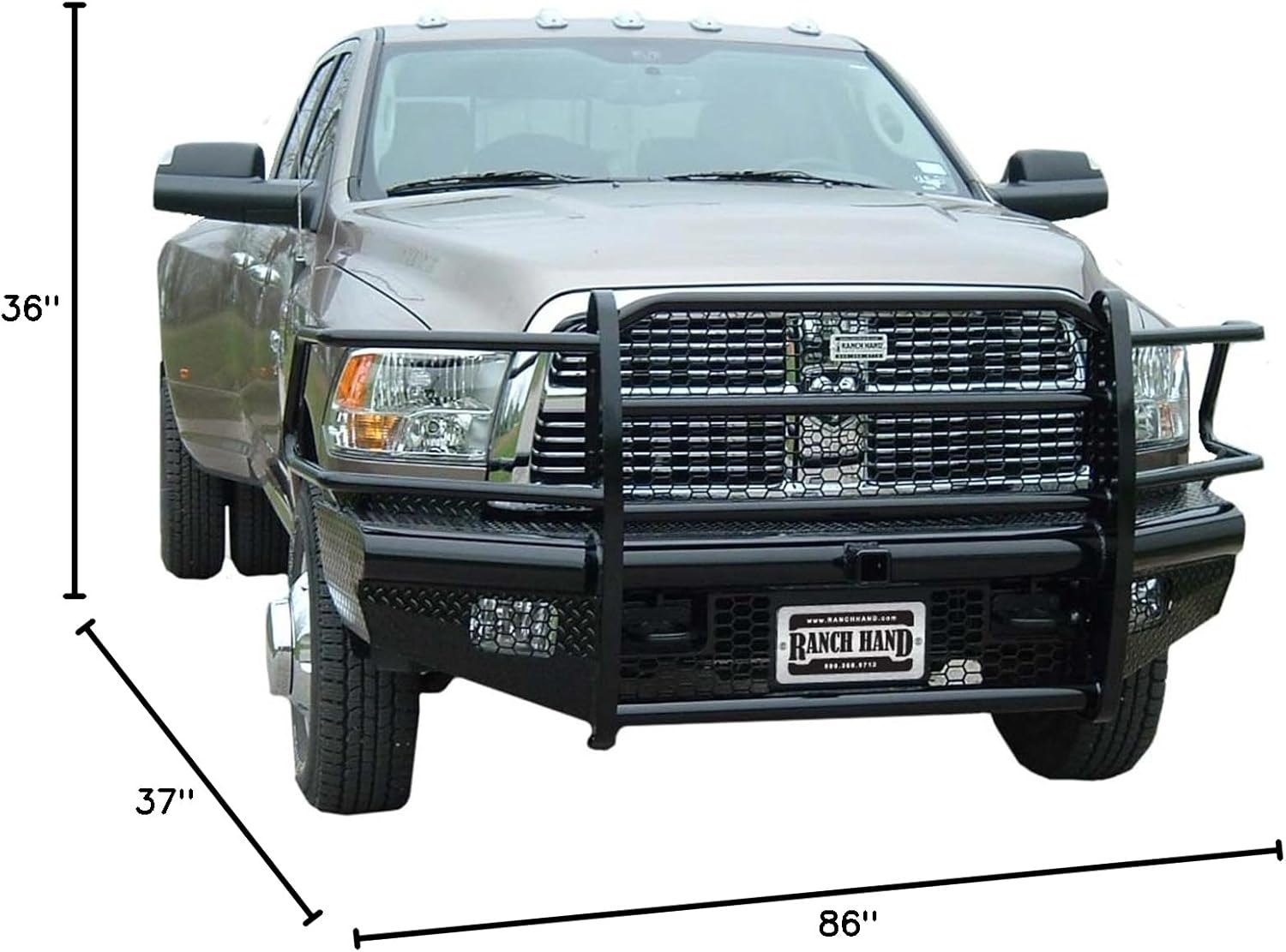

Image 10: Diagram illustrating the dimensions of the Ranch Hand Legend Series Bumper: 37"D x 86"W x 36"H.
Operation and Functionality
The Ranch Hand Legend Series Bumper serves as a protective barrier for the front of your truck, designed to withstand impacts and provide enhanced safety. Its primary function is passive protection.
Key Features:
- Robust Protection: Constructed from one-piece diamond plate steel, offering superior defense against road hazards and impacts.
- Integrated Grille Guard: Provides additional protection for the vehicle's grille and headlights.
- Direct Replacement: Engineered to directly replace the factory bumper without extensive modifications.
Important Considerations:
- Front Parking Sensors: The design of the bumper, particularly the grille guard, may interfere with the functionality of factory-installed front parking sensors. This can lead to false alarms or complete sensor malfunction. If your vehicle has these sensors, be aware of this potential limitation.
- Vehicle Weight: The bumper adds significant weight to the front of the vehicle (approximately 205 lbs / 104 kg). This may slightly affect vehicle handling, fuel economy, and front suspension performance.
Maintenance
Regular maintenance will help preserve the appearance and integrity of your Ranch Hand bumper.
- Cleaning: Wash the bumper regularly with mild soap and water to remove dirt, road grime, and salt. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Inspection: Periodically inspect the bumper for any signs of damage, such as dents, scratches, or rust. Check all mounting bolts for tightness and re-torque if necessary.
- Rust Prevention: If the finish is scratched or chipped, promptly touch up the affected area with appropriate paint to prevent rust formation, especially in corrosive environments.
Troubleshooting
This section addresses common issues that may arise after installing the Ranch Hand bumper.
| Issue | Possible Cause | Solution |
|---|---|---|
| Front parking sensors not working or giving false alarms. | The bumper's design, particularly the grille guard, obstructs the sensor's field of view. Sensors may not be securely seated in grommets. | This is a known limitation with aftermarket bumpers. Some vehicle systems may allow disabling front sensors. Ensure sensors are securely mounted in their grommets, using RTV or adhesive if necessary. Consult your vehicle manufacturer or a qualified technician for potential sensor recalibration or alternative solutions. |
| Bumper appears loose or rattles. | Mounting bolts are not sufficiently tightened. | Inspect all mounting bolts and re-torque them to the specified settings. |
| Difficulty aligning bumper during installation. | Improper lifting technique or insufficient assistance. | Ensure adequate lifting equipment or sufficient personnel are available to properly support and align the heavy bumper during installation. |
Specifications
| Attribute | Detail |
|---|---|
| Product Type | Vehicle Bumper |
| Brand | Ranch Hand |
| Model Number | FBD101BLRS |
| Material | Alloy Steel (Diamond Plate Steel) |
| Color | Black |
| Auto Part Position | Front |
| Vehicle Service Type | Trucks |
| Exterior Finish | Black |
| Product Dimensions (D x W x H) | 37"D x 86"W x 36"H |
| Item Weight | 205 pounds (approx. 104.326 kg) |
| Country of Origin | United States |
| UPC | 848917005547 |
Warranty and Support
For specific warranty information regarding your Ranch Hand Legend Series Bumper, please refer to the documentation provided with your purchase or contact Ranch Hand directly. General customer support is available for product inquiries and assistance.
Customer Support: For assistance, please visit the official Ranch Hand website or contact their customer service department. Contact information may also be available on your purchase receipt or packaging.
