Introduction
Thank you for choosing the Sylvania Sylcircle Sensor 18 Watt LED Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
Image 1: Front view of the Sylvania Sylcircle Sensor 18 Watt LED Ceiling Light. This image displays the sleek, white, circular design of the fixture, suitable for various indoor environments.
Safety Information
WARNING: Electrical installation should only be performed by a qualified electrician in accordance with all local and national electrical codes.
- Always switch off the main power supply at the circuit breaker before commencing any installation, maintenance, or repair work.
- Ensure the voltage supply matches the requirements of the fixture (240 Volts).
- Do not attempt to modify the fixture in any way.
- Keep packaging materials out of reach of children.
- This product is designed for indoor use unless otherwise specified.
- If you are unsure about any part of the installation or operation, consult a qualified professional.
Package Contents
Please check that all components are present and undamaged before installation:
- Sylvania Sylcircle Sensor 18 Watt LED Ceiling Light Fixture (1 unit)
- Mounting Hardware (screws, wall plugs)
- Instruction Manual (this document)
Setup and Installation
Tools Required: Screwdriver, drill, wire strippers, voltage tester.
Note: Assembly is required for this product. Ensure power is OFF before proceeding.
- Prepare the Installation Area: Ensure the power supply to the installation area is switched off at the main circuit breaker. Use a voltage tester to confirm no power is present.
- Mount the Bracket: Detach the mounting bracket from the light fixture. Position the bracket on the ceiling or wall where the light is to be installed. Mark the drilling points. Drill holes and insert appropriate wall plugs (if necessary). Secure the mounting bracket using the provided screws.
- Electrical Connection: Connect the electrical wires from the ceiling/wall to the terminals on the light fixture. Ensure correct polarity: Live (L) to Live, Neutral (N) to Neutral, and Earth (E) to Earth. Double-check all connections for security.
- Attach the Fixture: Carefully align the light fixture with the mounted bracket and secure it in place. Ensure it is firmly attached and stable.
- Restore Power: Once the fixture is securely installed and all connections are checked, restore power at the main circuit breaker.

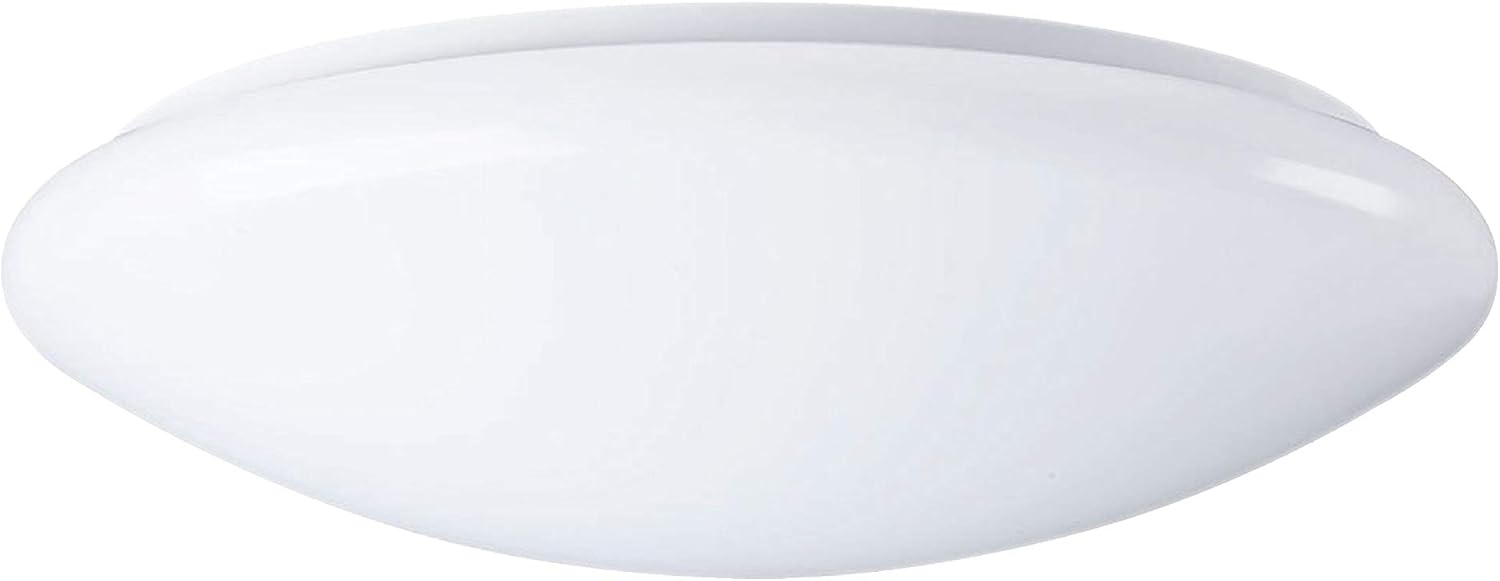

Image 2: Side profile of the Sylvania Sylcircle Sensor 18 Watt LED Ceiling Light. This view illustrates the fixture's depth and how it sits against a surface, which is relevant for installation planning.
Operating Instructions
The Sylvania Sylcircle Sensor LED Ceiling Light features an integrated sensor for automatic operation.
- Automatic Activation: Once power is supplied, the integrated sensor will detect motion within its range and activate the light automatically.
- Deactivation: The light will automatically turn off after a set period of no motion detection. Specific sensor settings (e.g., sensitivity, duration) may be adjustable via internal controls; refer to specific product diagrams if available on the fixture itself.
- Power Cycle: To reset the sensor or if the light is not functioning as expected, turn off the power at the wall switch or circuit breaker for a few seconds, then turn it back on.
Image 3: Sylvania Sylcircle light in a bathroom setting. This image demonstrates the fixture's aesthetic integration and illumination capabilities when installed above a vanity.

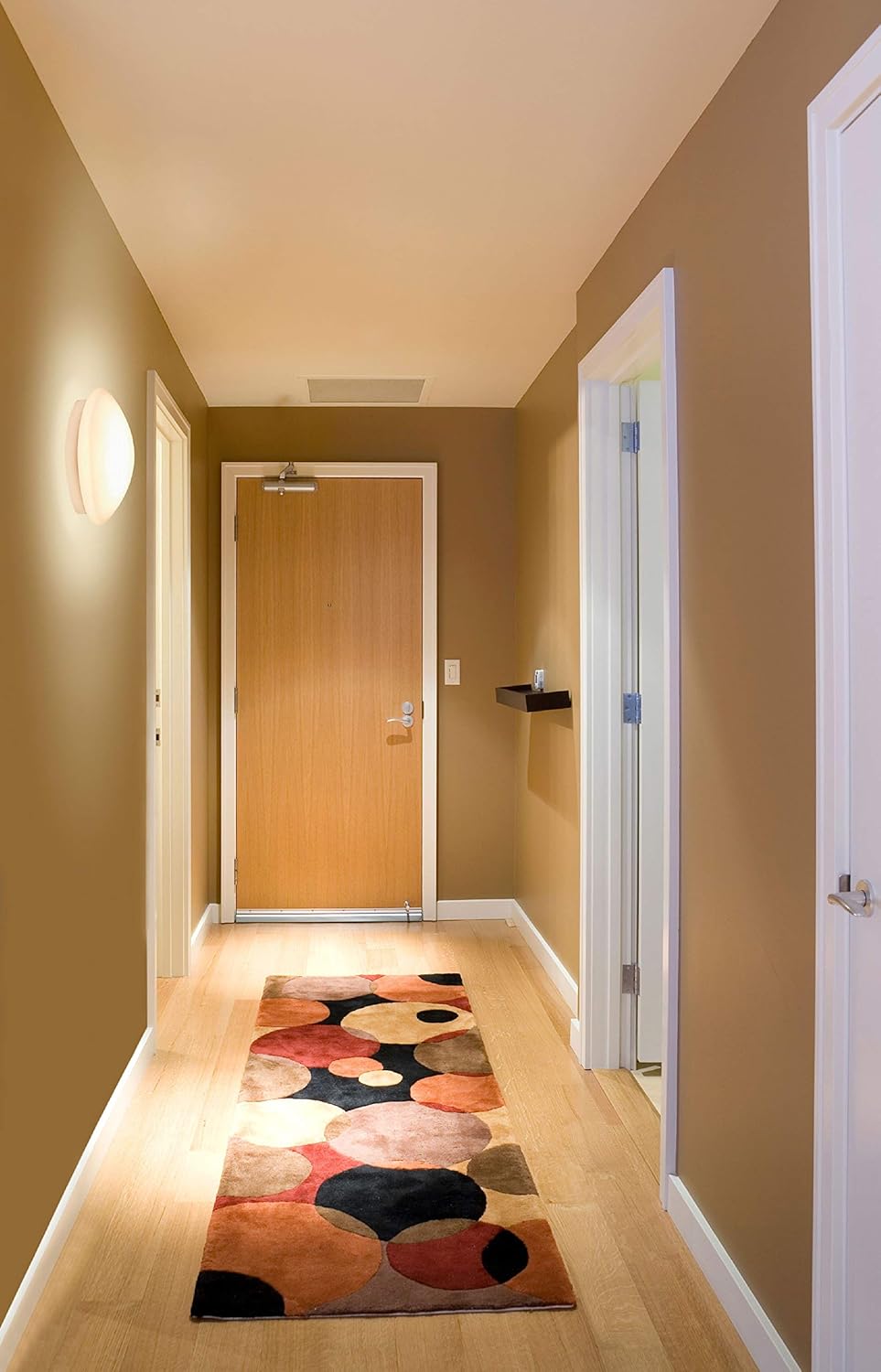

Image 4: Sylvania Sylcircle light in a hallway setting. This image shows the fixture providing effective ambient lighting in a common area, highlighting its versatility.
Maintenance
To ensure the longevity and optimal performance of your Sylvania Sylcircle LED Ceiling Light, follow these maintenance guidelines:
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
- LEDs: The integrated LED light source is designed for long life and is not user-replaceable.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Loose wiring connection. Faulty fixture. | Check circuit breaker and wall switch. Ensure all wires are securely connected (power off first). Contact customer support if power and connections are confirmed. |
| Light flickers. | Unstable power supply. Loose wiring. Incompatible dimmer (if applicable). | Check power supply stability. Verify wiring connections (power off first). This fixture is not designed for dimming unless explicitly stated. |
| Sensor not detecting motion. | Obstruction in sensor's field of view. Incorrect sensor settings. Sensor malfunction. | Ensure clear path for sensor. Refer to specific sensor adjustment instructions if available. Power cycle the fixture. If issue persists, contact support. |
| Light stays on continuously. | Constant motion in detection zone. Sensor malfunction. | Ensure no continuous motion is present. Power cycle the fixture. If issue persists, contact support. |
If the problem persists after attempting these solutions, please contact Sylvania customer support.
Specifications
- Model Number: 0043264
- Brand: SYLVANIA
- Product Dimensions: 38.97 x 39 x 10.17 cm
- Item Weight: 1.03 Kilogram
- Wattage: 18 Watt
- Voltage: 240 Volt
- Power Source: Electric with cord
- Material: Metal
- Color: Bianco (White)
- Style: Classic
- Room Type: Garden (Note: While listed as 'Tuin' (Garden), the product images suggest indoor use. Please verify suitability for outdoor use if intended.)
- Assembly Required: Yes
- Batteries Required: No
- First Available Date: 15 January 2020
Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official SYLVANIA website. Keep your proof of purchase for any warranty claims.
Manufacturer: SYLVANIA
