1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Tier1 1 Micron 10 x 2.5 Inch Spun Wound Polypropylene Whole House Sediment Water Filter Replacement Cartridge. Adhering to these guidelines will ensure optimal performance and longevity of the filter.
2. Safety Information
- Always turn off the main water supply before installing or replacing the filter cartridge.
- Depressurize the system before opening the filter housing.
- Use appropriate tools and follow all local plumbing codes.
- Ensure proper sealing to prevent leaks.
- Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
3. Product Overview
The Tier1 1 Micron 10 x 2.5 Inch Spun Wound Polypropylene Sediment Water Filter is designed to reduce various particulate matter from your water supply. This filter is constructed from durable polypropylene and is compatible with most standard 10-inch water filter housings.
Figure 1: Tier1 1 Micron 10 x 2.5 Inch Sediment Water Filter 6-Pack. This image displays six individual white cylindrical water filter cartridges, each with a label indicating "Tier1 Water Filters P1-10 Whole House Sediment Water Filter" and key specifications.
It effectively reduces sediment, rust, dirt, sand, silt, and corrosion particles down to 1 micron in size, contributing to improved water quality throughout your home.
Figure 2: Visual representation of contaminants reduced by Tier1 filters. Icons depict sediment, turbidity, sand, silt, and rust & corrosion, illustrating the filter's capabilities.
4. Specifications
| Brand | Tier1 |
| Model Number | P1_10 |
| Material | Polypropylene (PP) |
| Filtration Rating | 1 Micron (Nominal) |
| Dimensions | 10 inches (Length) x 2.5 inches (Diameter) |
| Flow Rate | 5 GPM (Gallons Per Minute) |
| Operating Temperature Range | 40 - 145 °F (4.4 - 62.7 °C) |
| Filter Life | Up to 3 months (depending on water quality and usage) |
| Product Benefits | Reduces sediment, rust, dirt, sand, silt, and corrosion |
| Compatible Housings | Most 10 inch water filter housings |
| Compatible Replacements | Pentek P1, PX01-9-78, SDC-25-1001, 93113, 255690, 1193113, 1227865-V, 155225-43, 255690-43, IF-SP-1001, PS1-10C, VX01-978 |
5. Setup and Installation
Follow these steps to install or replace your sediment filter cartridge:
- Turn off Water Supply: Locate the main water shut-off valve for your home and turn it off.
- Depressurize System: Open a nearby faucet to relieve pressure in the water lines.
- Open Filter Housing: Use a filter wrench to unscrew and remove the filter housing sump.
- Remove Old Filter: Discard the used filter cartridge. Clean the inside of the filter housing with warm, soapy water and rinse thoroughly. Inspect the O-ring for any damage and replace if necessary. Lubricate the O-ring with a silicone lubricant if needed.
- Insert New Filter: Carefully unwrap the new Tier1 sediment filter cartridge and insert it into the filter housing sump. Ensure it is seated correctly on the center standpipe.
- Close Filter Housing: Screw the filter housing sump back onto the cap, hand-tightening it first, then using the filter wrench for a snug fit. Do not overtighten.
- Restore Water Supply: Slowly turn on the main water supply.
- Check for Leaks: Monitor the filter housing for any leaks. If leaks occur, turn off the water, depressurize, and re-tighten the housing.
- Flush System: Open a cold water faucet for several minutes to flush out any air and fine particles from the new filter.

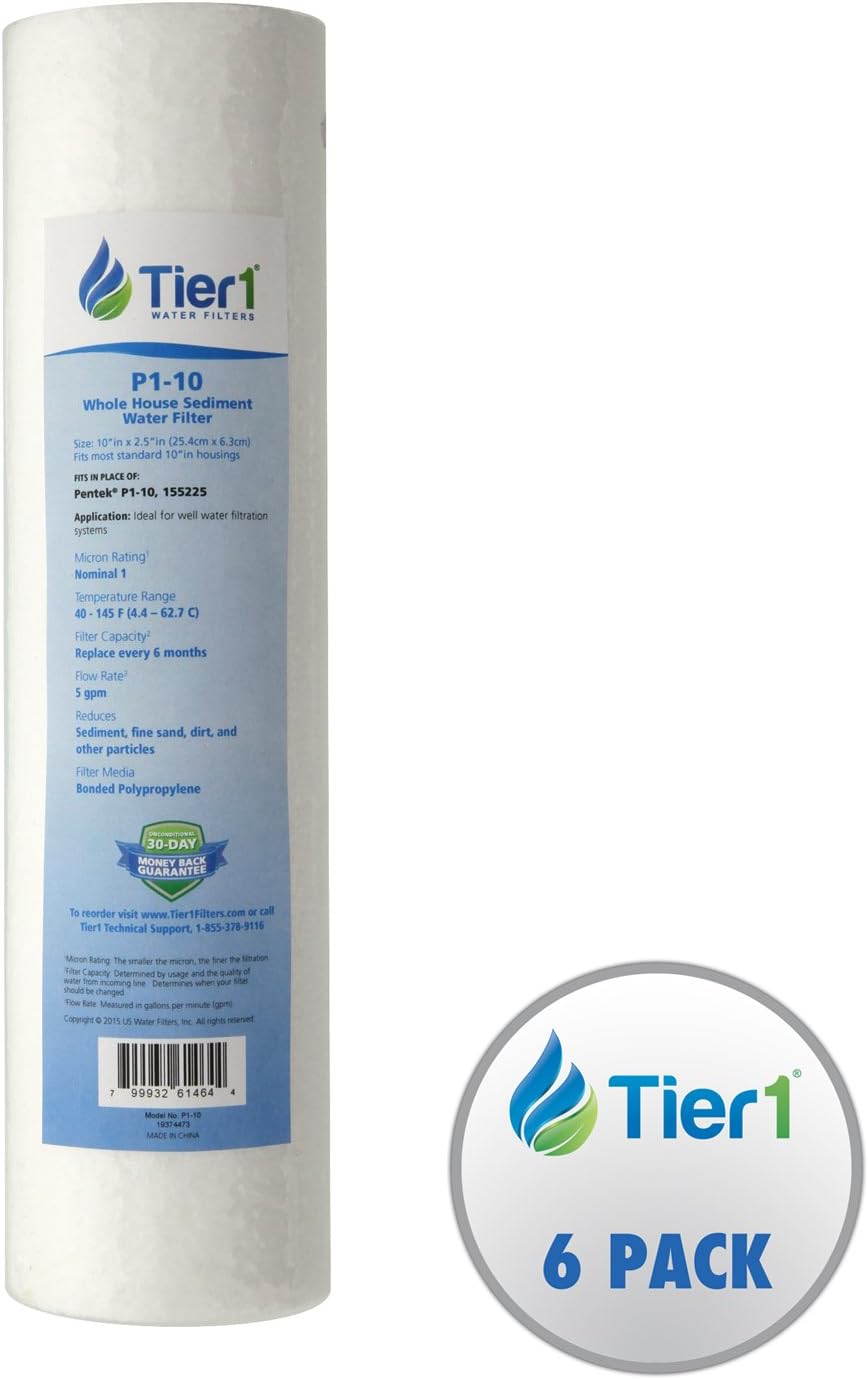

Figure 3: A single Tier1 P1-10 sediment water filter cartridge, showing its label with specifications and compatibility information.
6. Operating Instructions
Once installed, the Tier1 sediment filter operates continuously as water flows through your whole house filtration system. It is designed for a flow rate of 5 gallons per minute (GPM) and effectively captures particles as small as 1 micron.
No further user interaction is required during normal operation until filter replacement is due.
7. Maintenance
Regular replacement of your sediment filter is crucial for maintaining optimal water quality and system performance. The recommended replacement interval for the Tier1 P1_10 filter is every 3 months. This interval may vary depending on the quality of your incoming water supply and household water usage. A noticeable decrease in water pressure is often an indicator that the filter is becoming clogged and requires replacement.
8. Troubleshooting
- Reduced Water Pressure:
Cause: The filter cartridge is likely clogged with accumulated sediment.
Solution: Replace the filter cartridge. Refer to Section 7: Maintenance.
- Water Leaks from Filter Housing:
Cause: Improperly seated O-ring, damaged O-ring, or loose housing sump.
Solution: Turn off water supply, depressurize, remove housing, inspect and reseat or replace the O-ring, then re-tighten the housing. Do not overtighten.
- Visible Sediment in Water After Filter Change:
Cause: Insufficient flushing after installation or improper filter seating.
Solution: Flush the system for a longer period (5-10 minutes). If the problem persists, turn off water, depressurize, and re-check filter seating.
9. Warranty Information
For specific warranty details regarding your Tier1 water filter cartridge, please refer to the documentation included with your purchase or visit the official Tier1 website. Warranty terms typically cover manufacturing defects.
10. Support and Contact
If you require further assistance or have questions about your Tier1 water filter, please contact Tier1 Technical Support:
- Website: www.Tier1filters.com
- Phone: 1-855-378-9116
