Introduction
This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and care of your Uten Potato Twister Spiral Potato Cutter, Model B-1. Please read this manual thoroughly before using the device to ensure proper function and longevity.
Safety Information
- Always handle the stainless steel blade with care to prevent injury.
- Keep the device out of reach of children.
- Ensure the device is placed on a stable, flat, and non-slip surface during operation.
- Do not attempt to disassemble the main unit beyond routine cleaning.
- Use only for its intended purpose of slicing fruits and vegetables.
Product Components
The Uten Potato Twister Spiral Potato Cutter consists of the following main components:
- Main Stainless Steel Body
- Durable Hand Crank
- Non-slip Base Feet
- Stainless Steel Blade (with spares)
- Fixed Shaft for Skewer
- Fixed Lock Mechanism
- Spiral Shaft
This image provides an exploded view of the Uten Potato Twister, highlighting its main components such as the durable handle, non-slip base, and stainless steel blade. It also includes key dimensions of the device for reference.
Setup
- Unpack all components from the packaging.
- Place the Uten Potato Twister on a clean, stable, and flat surface. The non-slip feet will help secure the device during use.
- Ensure the stainless steel blade is securely in place. Spare blades are provided for future replacement.

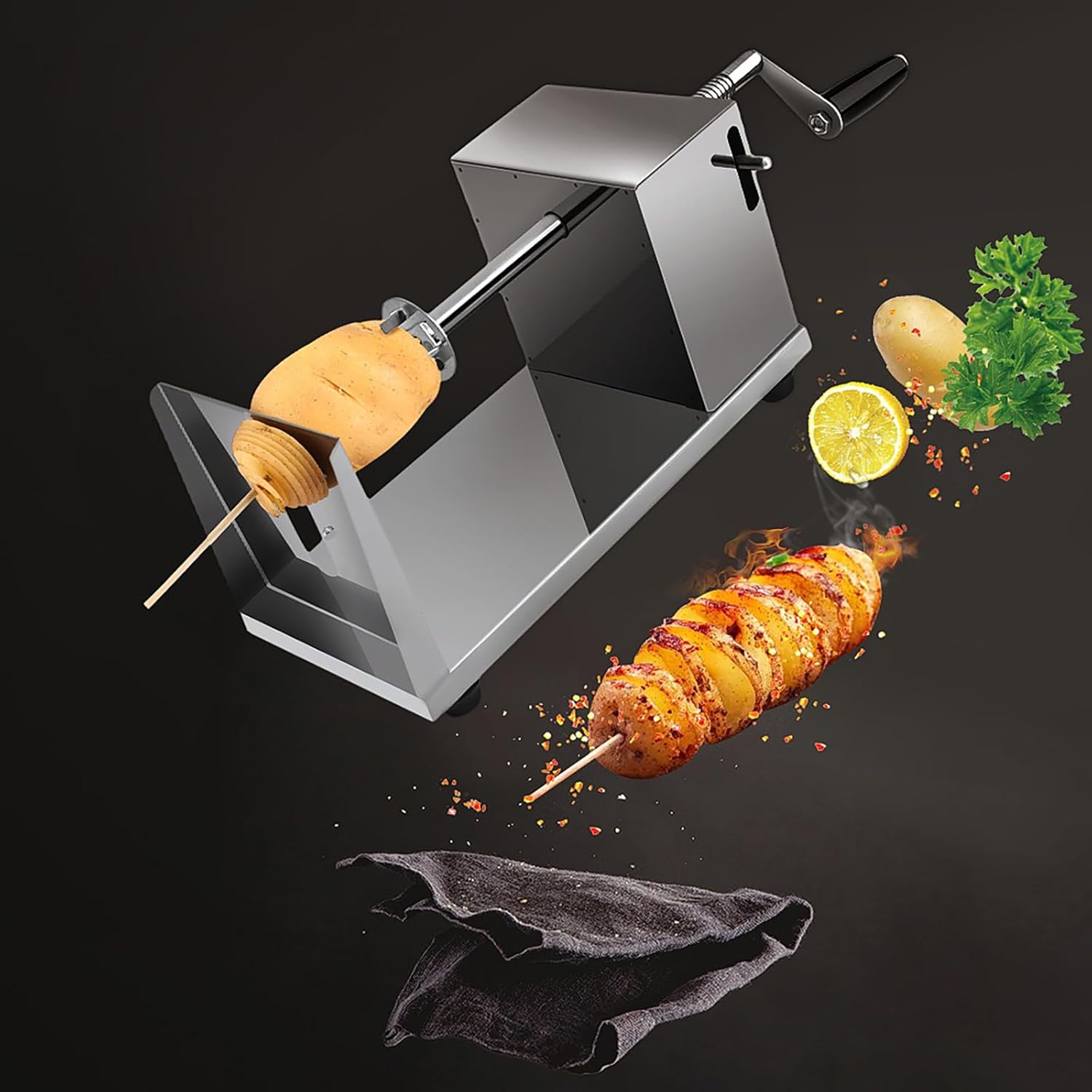

This image displays the Uten Potato Twister Spiral Potato Cutter in action, demonstrating how a potato is transformed into a continuous spiral on a skewer. The device is made of stainless steel and features a hand crank for manual operation.
Operating Instructions
Follow these steps to create spiral-cut potatoes or other vegetables:
- Prepare the Vegetable: Select a firm potato, cucumber, or carrot. Wash and peel if desired.
- Insert Skewer: Carefully push a bamboo skewer through the center of the vegetable, ensuring it penetrates completely.
- Position Skewer: Insert the tail end of the bamboo skewer into the designated hole above the blade on the device.
- Secure Vegetable: Place the vegetable onto the central axis of the push shaft, ensuring it is firmly seated.
- Engage Lock: Push the fixed dial lock to secure the potato in place.
- Begin Slicing: While holding the device steady, turn the hand crank clockwise. The blade will spiral-cut the vegetable as it rotates.
- Complete Cut: Continue turning until the entire vegetable has been sliced into a spiral.
- Remove: Carefully remove the skewer with the spiral-cut vegetable from the device.
This detailed nine-panel image provides a step-by-step visual instruction on how to operate the potato twister. It covers preparing the potato, inserting the skewer, securing the potato in the machine, and turning the crank to create the spiral.
This image showcases several culinary applications for spiral-cut potatoes, illustrating different ways the output from the slicer can be prepared, such as baked, fried, or seasoned tornado chips.
Maintenance and Care
- Cleaning: The Uten Potato Twister is designed for hand washing only. After each use, disassemble the removable parts (blade, skewer holder) and wash them with warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
- Storage: Store the device in a clean, dry place. Its compact design makes it suitable for small storage spaces.
- Blade Care: The stainless steel blade is sharp. Handle with extreme care during cleaning and replacement. Replace blades when they become dull to ensure optimal cutting performance.
Troubleshooting
- Potato not cutting smoothly: Ensure the potato is firm and properly centered on the skewer and the push shaft. Check if the blade is clean and sharp. Replace the blade if it appears dull.
- Device is unstable during use: Verify that the device is placed on a flat, stable, and non-slip surface. The non-slip rubber feet should provide adequate stability.
- Skewer not advancing: Ensure the skewer is correctly inserted into the hole above the blade and that the potato is firmly secured against the spiral shaft.
Specifications
| Feature | Specification |
|---|---|
| Brand | Uten |
| Model Number | B-1 |
| Material | Stainless Steel |
| Color | Stainless Steel |
| Product Dimensions (L x W x H) | 11.02" x 4.53" x 5.51" (28 x 11.5 x 14 cm) |
| Item Weight | 2.2 pounds (1 kg) |
| Operation Mode | Manual |
| Blade Material | Stainless Steel |
| Blade Length | 6 Centimeters |
| Recommended Uses | Vegetable Slicing (Potatoes, Cucumbers, Carrots) |
| Product Care Instructions | Hand Wash Only |
Warranty Information
For detailed warranty information, please refer to the official Uten website or contact Uten customer service. Keep your purchase receipt as proof of purchase.
Support
If you have any questions, concerns, or require assistance with your Uten Potato Twister Spiral Potato Cutter, please contact Uten customer service. Contact details can typically be found on the manufacturer's official website or product packaging.
