Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Avalon Countertop Self Cleaning Bottleless Water Cooler Water Dispenser. This appliance is designed to provide convenient access to both crisp cold and piping hot filtered water directly from your water line. Please read this manual thoroughly before use to ensure safe and efficient operation.
Safety Information
- Electrical Safety: The water cooler is UL Listed. Ensure it is connected to a properly grounded electrical outlet. Do not operate with a damaged power cord or plug.
- Hot Water Safety: The hot water faucet dispenses water at approximately 185°F (85°C). A child safety lock is integrated into the hot water faucet to prevent accidental burns. Always supervise children around the dispenser.
- Leak Detection: The unit features a built-in leak detector to automatically monitor water flow from the source. In case of a leak, the system is designed to shut off water supply.
- Installation: Ensure all connections are secure and leak-free during installation. Refer to the "Setup" section for detailed instructions.
- Maintenance: Disconnect power before performing any maintenance or cleaning.
Product Overview
The Avalon Countertop Water Cooler offers a range of features for convenient and safe water dispensing.

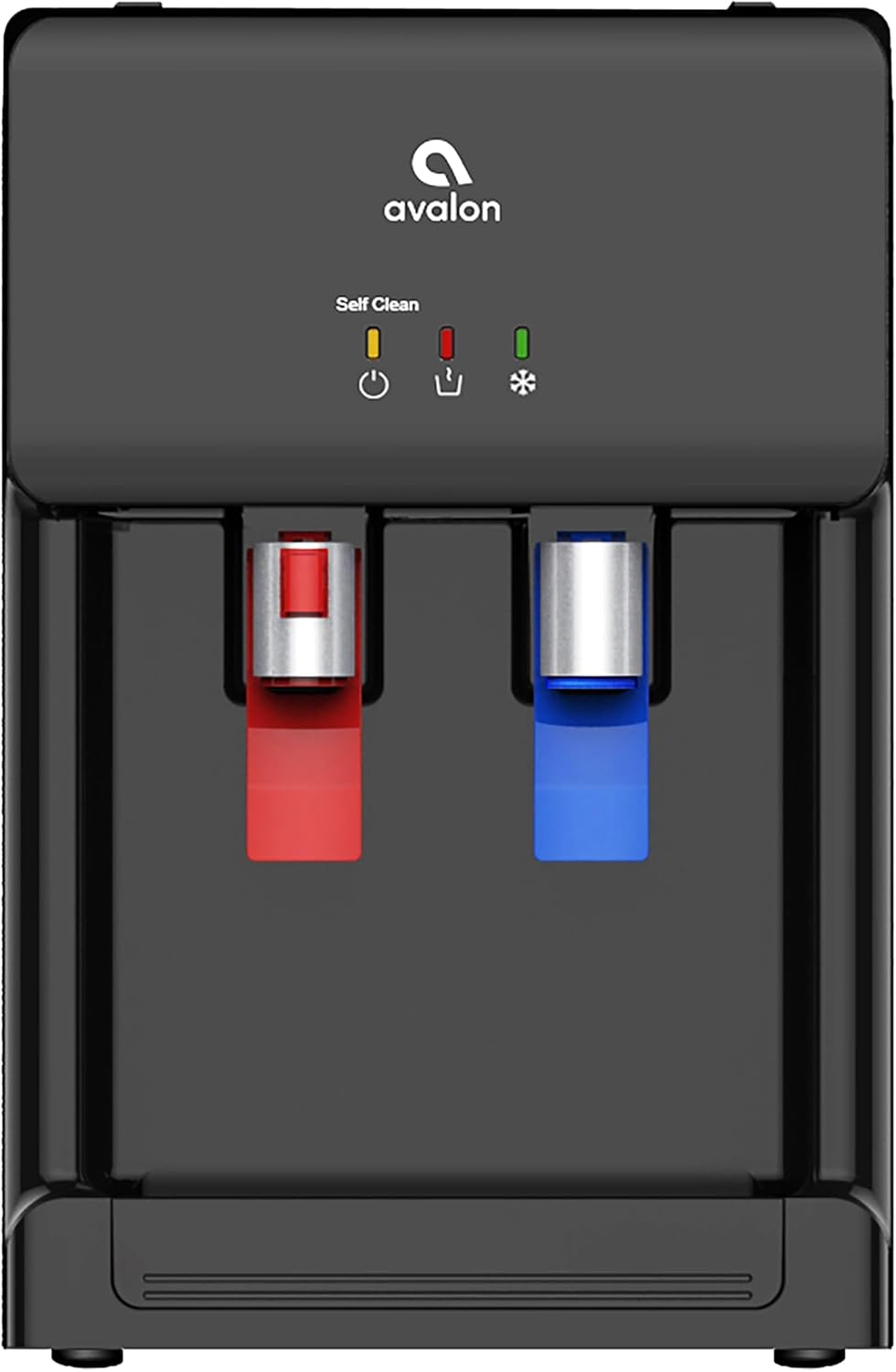

Figure 1: Front view of the Avalon Countertop Water Cooler. This image displays the sleek black design, the red hot water spout, the blue cold water spout, and the indicator lights for self-clean, hot water, and cold water.
Figure 2: Angled view of the Avalon Countertop Water Cooler. This perspective highlights the compact size and the ventilation grilles on the side of the unit.
Figure 3: Avalon Countertop Water Cooler in a kitchen setting. The image shows the dispenser positioned on a countertop, demonstrating its suitable size for kitchen environments.
Key Features:
- Hot & Cold Water Spouts: Provides water at approximately 47°F (8°C) for cold and 185°F (85°C) for hot beverages.
- Bottleless Design: Connects directly to your water line, eliminating the need for water bottles.
- Dual Filtration System: Includes an NSF certified Activated Carbon filter (Avalon A4FILTER) and a Sediment filter (Avalon A5FILTER) to purify tap water, removing chlorine and lead. Filters last approximately 6 months or 1500 gallons.
- Self-Cleaning Feature: Automatically cleans the machine's water tank with the press of a switch.
- Nightlight: Built-in nightlight illuminates the water spouts for visibility in low light conditions.
- Paddle Spouts: Easy-to-use design; simply press your cup against the paddle to dispense water.
- Child Safety Lock: Located on the hot water spout for enhanced safety.
- Leak Detector: Monitors water flow and automatically shuts off water in case of a leak.
Setup
The Avalon water cooler comes with a full installation kit for direct connection to your existing sink water line. Professional installation is recommended but not required.
Figure 4: Installation kit components. This image shows the included 1/4" tubing, 3-way plastic push connect adapter, under-sink 3/8" adapter with shut-off valve, and filter flushing adapter.
Installation Steps:
- Unpack and Inspect: Carefully remove all components from the packaging. Inspect for any damage.
- Position the Unit: Place the water cooler on a stable, level countertop near a water source and an electrical outlet. Ensure adequate ventilation around the unit.
- Connect to Water Source:
- Locate your cold water supply line under the sink.
- Install the provided under-sink 3/8" adapter with shut-off valve to your cold water line.
- Connect the 1/4" tubing from the installation kit to the adapter.
- Route the tubing to the back of the water cooler and connect it to the water inlet port. Ensure the tubing is pushed firmly into the quick-connect fitting until the black mark on the tubing is no longer visible, indicating a secure connection.
- Install Filters: Insert the Sediment filter (Avalon A5FILTER) and Activated Carbon filter (Avalon A4FILTER) into their designated compartments. Follow the directional arrows on the filters for correct orientation.
- Flush Filters: Before turning on the water cooler, flush the filters. Connect the filter flushing adapter to the water line and run water through the filters for several minutes until the water runs clear. This removes carbon fines and air from the filters.
- Check for Leaks: Slowly open the shut-off valve on the water supply line. Carefully check all connections for any leaks. Tighten connections if necessary.
- Plug In: Once all connections are secure and leak-free, plug the power cord into a grounded electrical outlet.
- Activate Hot and Cold Functions: Locate the hot and cold water switches on the back of the unit. Turn them ON. Allow the unit to operate for at least 15-20 minutes to reach optimal temperatures before dispensing.
Operating Instructions
Dispensing Water:
- Cold Water: Place your cup under the blue cold water spout. Press the paddle with your cup to dispense cold water. Release the paddle to stop the flow.
- Hot Water: Place your cup under the red hot water spout. Simultaneously push the child safety lock button and press the paddle with your cup to dispense hot water. Release both to stop the flow.
Self-Cleaning Function:
The self-cleaning feature sanitizes and purifies the dispenser's water tank. It is recommended to use this function periodically.
- Ensure the unit is plugged in and powered on.
- Locate the "Self Clean" button or switch on the control panel.
- Press the "Self Clean" button. An indicator light will typically illuminate to confirm the cycle has started.
- Allow the cycle to complete. The duration may vary, refer to the indicator lights for completion.
Maintenance
Filter Replacement:
The dual filters (Avalon A4FILTER and A5FILTER) should be replaced every 6 months or after 1500 gallons of use, whichever comes first. A "replace filter" indicator light will illuminate when replacement is needed.
- Turn off the water supply to the unit using the shut-off valve.
- Unplug the water cooler from the electrical outlet.
- Open the filter compartment.
- Carefully remove the old filters. Be prepared for some residual water.
- Insert new Avalon A4FILTER (Activated Carbon) and A5FILTER (Sediment) filters, ensuring correct orientation.
- Close the filter compartment.
- Restore water supply and check for leaks.
- Plug the unit back in.
- Flush the new filters by dispensing several cups of water from both hot and cold spouts until water runs clear and free of air bubbles.
- Reset the filter indicator light if applicable (refer to specific unit instructions for reset procedure).
Exterior Cleaning:
Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No water dispensed. | Water supply valve is closed; filters are clogged; airlock in system. | Ensure water supply valve is fully open. Replace filters if due. Dispense water for a few minutes to clear air. |
| Water is not hot/cold enough. | Hot/cold switch is off; unit recently plugged in; insufficient time to reach temperature. | Ensure hot/cold switches on the back are ON. Allow 15-20 minutes for the unit to reach optimal temperature after initial setup or power cycle. |
| Water tastes bad or has odor. | Filters need replacement; new unit (initial carbon fines). | Replace filters. For new units, flush several gallons of water through the system. |
| Unit is leaking. | Loose connections; damaged tubing/fittings; internal leak. | Immediately turn off water supply and unplug the unit. Check all external connections and tighten. If leak persists, contact customer support. |
| Self-clean function not working. | Unit not powered; malfunction. | Ensure unit is plugged in and powered on. If issue persists, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | A8CTBOTTLELESSBLK |
| Color | Black |
| Material | Plastic |
| Capacity | 3.6 Liters |
| Product Dimensions (D x W x H) | 13" x 12" x 19" (33cm x 30.5cm x 48.3cm) |
| Installation Type | Countertop |
| Access Location | Bottom |
| Number of Settings | 2 (Hot, Cold) |
| Cold Water Temperature | Approx. 47°F (8°C) |
| Hot Water Temperature | Approx. 185°F (85°C) |
| Power Source | Corded Electric |
| Item Weight | 30 pounds (13.6 kg) |
| Included Components | Water cooler, filter set (A4FILTER, A5FILTER), installation kit |
| Certifications | UL Listed, NSF Certified Filters |
Warranty and Support
Warranty Information:
This Avalon water cooler comes with a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please refer to the official documentation provided with your product or visit the manufacturer's website.
Customer Support:
If you encounter any issues or have questions regarding your Avalon water cooler, please contact Avalon customer support. You may find contact information on the manufacturer's official website or in the packaging materials.
An official User Manual (PDF) is also available for download: Download User Manual PDF
