Radenso XP Radar & Laser Detector User Manual

1. Introduction

1.1 Product Overview

The Radenso XP is a high-performance radar and laser detector designed to provide advanced warning of radar and laser signals. It features an OLED display, voice alerts, and advanced filtering technologies to minimize false alarms, ensuring a quiet and reliable driving experience.

1.2 Key Features

• Long Range & False Alert Filtering: Detects radar alerts from several miles away while filtering out blind spot monitor and traffic monitor false alerts.
• GPS Lockout Technology: Remembers and mutes common false alerts along frequently driven routes.
• Low Speed Muting: Automatically mutes alerts below a user-selectable speed.
• USA Support / Warranty: In-house telephone and e-mail support with a 1-year manufacturer warranty.
• Ready Out of the Box: Simple plug-and-play operation with pre-configured settings.
• Windows & Mac OS Compatible: Supports firmware updates via both Windows and Apple computers.
• OLED Display: Clear and bright display for easy readability.
• Voice Alerts: Provides 260 different voice messages for various alerts.

2. Setup

2.1 What's Included

Your Radenso XP package includes the following items:

• Radenso XP Radar & Laser Detector
• Travel Case
• Suction Cup Mount
• Power Cord (RJ11 connection)
• USB Cable (for updates)

Figure 2.1: Radenso XP Radar Detector with its travel case, suction cup mount, power cord, and USB cable.

2.2 Installation

To install your Radenso XP, simply mount it to your windshield using the provided suction cup mount and plug in the power cord. The device is designed for immediate use with optimal factory settings.

2.3 Controls and Display

Familiarize yourself with the controls and OLED display of your Radenso XP:

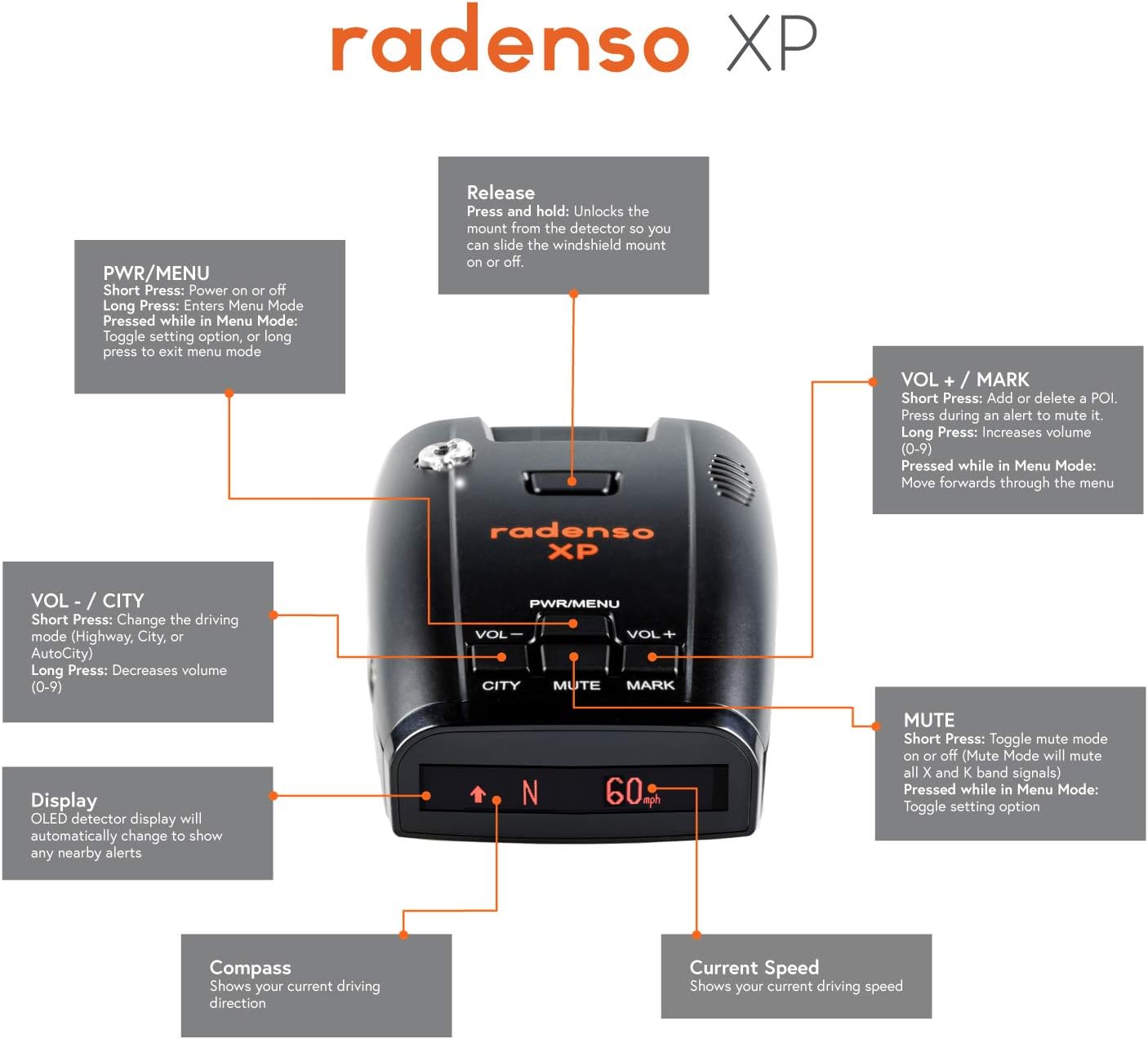

Figure 2.2: Overview of Radenso XP controls and display elements.

• PWR/MENU Button: Short press to power on or off. Long press to enter/exit Menu Mode. Pressed while in Menu Mode: Toggle setting option, or long press to exit menu mode.
• VOL - / CITY Button: Short press to change driving mode (Highway, City, or AutoCity). Long press to decrease volume (0-9).
• MUTE Button: Short press to toggle mute mode on or off. In mute mode, it will mute all X and K band signals. Pressed while in Menu Mode: Toggle setting option.
• VOL + / MARK Button: Short press to add or delete a Point of Interest (POI). Press during an alert to mute it. Long press to increase volume (0-9). Pressed while in Menu Mode: Move forwards through the menu.
• Release Button: Unlocks the mount from the detector to slide the windshield mount on or off.
• Display: OLED detector display will automatically change to show any nearby alerts.
• Compass: Shows your current driving direction.
• Current Speed: Shows your current driving speed.

3. Operating the Device

3.1 Powering On/Off

Press the PWR/MENU button briefly to turn the device on or off. The device will perform a self-test upon startup.

3.2 Driving Modes

The Radenso XP offers three driving modes to optimize performance based on your driving environment:

• Highway Mode: Provides maximum sensitivity for long-range detection, suitable for open road driving.
• City Mode: Reduces sensitivity to X and K bands to minimize false alerts from automatic doors and other urban sources.
• AutoCity Mode: Automatically adjusts sensitivity based on your speed, offering a balance between detection range and false alert filtering.

Toggle between these modes using the VOL - / CITY button.

3.3 GPS Lockouts

The GPS Lockout feature allows the detector to remember and automatically mute common false alerts at specific locations. To set a GPS lockout, simply press and hold the VOL + / MARK button when a consistent false alert is detected. The device will then learn to ignore this signal at that location in the future.

3.4 Low Speed Muting

Configure the Radenso XP to automatically mute audio alerts when your vehicle's speed drops below a user-selectable threshold. This feature is particularly useful in heavy traffic or urban areas where constant alerts might be distracting.

3.5 Radar and Laser Detection

The Radenso XP detects X, K, Ka, and Laser frequency bands. When a signal is detected, the OLED display will show the band and signal strength, accompanied by a voice alert. The device's advanced filtering helps distinguish between legitimate threats and common false sources like Blind Spot Monitors (BSM) and Traffic Sensor Rejection (TSR).

4. Maintenance

4.1 Cleaning

To maintain optimal performance and appearance, regularly clean your Radenso XP. Use a soft, dry cloth to wipe the exterior. Avoid using abrasive cleaners or solvents, as they may damage the device's finish or internal components.

4.2 Software Updates

Radenso regularly releases firmware updates to improve performance, add new features, and update the red light/speed camera database. You can update your Radenso XP using a Windows or Mac OS computer. Visit the official Radenso website for the latest firmware and update instructions.

5. Troubleshooting

If you encounter issues with your Radenso XP, refer to the following common troubleshooting tips:

• No Power: Ensure the power cord is securely connected to both the detector and the vehicle's power outlet. Check the vehicle's fuse for the power outlet.
• Frequent False Alerts: Adjust the driving mode to City or AutoCity. Utilize the GPS Lockout feature for recurring false alert locations. Ensure the Blind Spot Monitor filter is enabled in settings.
• No Radar/Laser Detection: Verify the device is powered on and not in mute mode. Ensure the detector has a clear line of sight to the road.
• Display Issues: Check for any physical damage. If the display is dim, adjust brightness settings in the menu.

For persistent issues or advanced troubleshooting, please contact Radenso customer support.

6. Specifications

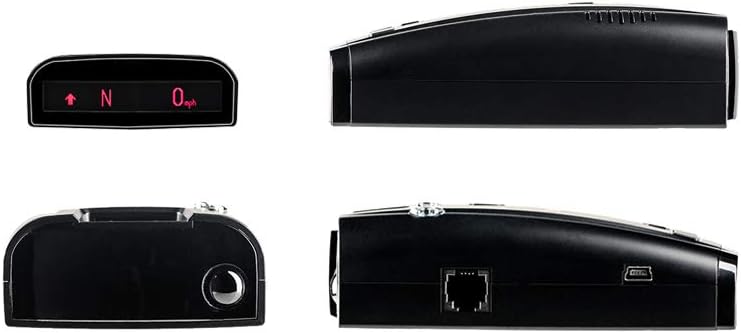

Figure 6.1: Various views of the Radenso XP Radar Detector.

Figure 6.2: FCC ID and Patent Information.

Legal Disclaimer: This device complies with part 15 of FCC rules. (FCC ID: 2AEE3XP)

7. Warranty and Support

7.1 Warranty Information

The Radenso XP comes with a 1-year manufacturer warranty. Additionally, Radenso offers a 1-year radar speeding ticket guarantee, providing peace of mind for users.

7.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact Radenso's in-house USA Technical Support staff via telephone or e-mail. Detailed contact information can be found on the official Radenso website.

An official User Manual (PDF) is also available for download: Download User Manual (PDF)
