Juki TL Series Sewing Machine 1/4" Foot Without Guide Instruction Manual

Introduction

This instruction manual provides detailed guidance for the proper installation, operation, and maintenance of your Juki TL Series Sewing Machine 1/4" Foot Without Guide. This presser foot is designed to assist in achieving precise 1/4-inch seams, particularly useful for quilting and garment construction.

Product Overview

The Juki TL Series 1/4" Foot Without Guide is a specialized presser foot for Juki TL series sewing machines. It is engineered to provide a consistent 1/4-inch seam allowance from the needle to the edge of the fabric, enhancing accuracy in sewing projects.

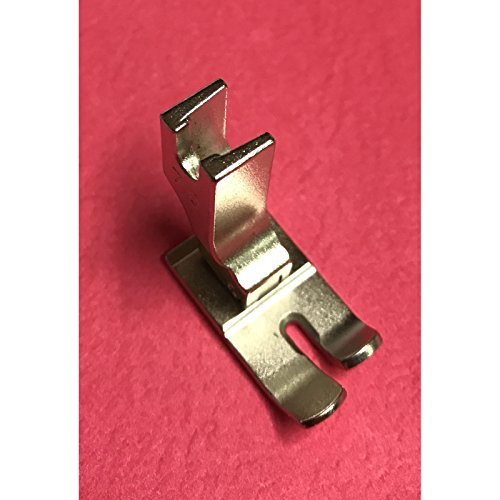

Image 1: The Juki TL Series 1/4" Foot Without Guide. This image shows the metal presser foot designed for precise seam allowances on Juki TL series sewing machines.

Compatibility

This presser foot is compatible with the following Juki TL series models:

• Juki TL-2010Q
• Juki TL-2000QI
• Juki TL-98P
• Juki TL-98Q
• Juki TL-98QE

Dimensions

• Distance from needle position to left side: 7.5mm
• Distance from needle position to right side: 7.0mm

Setup and Installation

Follow these steps to correctly install the 1/4" Foot on your Juki TL Series sewing machine:

1. Power Off: Ensure your sewing machine is turned off and unplugged from the power outlet for safety.
2. Raise Needle and Presser Foot Lever: Raise the needle to its highest position and lift the presser foot lever.
3. Remove Current Presser Foot: Loosen the screw that holds the current presser foot in place. Carefully remove the existing presser foot.
4. Attach 1/4" Foot: Position the Juki TL Series 1/4" Foot so that its pin aligns with the presser foot holder. Lower the presser foot lever to secure the foot.
5. Tighten Screw: Tighten the screw firmly to ensure the foot is securely attached and does not wobble.
6. Verify Installation: Gently lower the presser foot to ensure it sits flat and is properly aligned with the needle plate opening.

Always refer to your sewing machine's main instruction manual for specific details regarding presser foot attachment if you encounter difficulties.

Operating Instructions

This 1/4" foot is designed for precise seam allowances. Here’s how to use it effectively:

1. Prepare Fabric: Place your fabric under the presser foot, aligning the raw edge of the fabric with the right edge of the 1/4" foot.
2. Lower Presser Foot: Lower the presser foot lever to hold the fabric in place.
3. Select Stitch: Choose a straight stitch setting on your sewing machine.
4. Begin Sewing: Start sewing, guiding the fabric so that its edge consistently runs along the right edge of the presser foot. This will ensure a precise 1/4-inch seam allowance.
5. Maintain Alignment: Pay close attention to keeping the fabric edge aligned with the foot's edge throughout the entire seam for consistent results.

This foot eliminates the need for marking or measuring 1/4-inch seams, making it ideal for quilting blocks and other projects requiring accuracy.

Care and Maintenance

To ensure the longevity and optimal performance of your 1/4" Foot, follow these simple maintenance guidelines:

• Cleaning: Periodically wipe the presser foot with a soft, dry cloth to remove any lint or dust accumulation.
• Storage: Store the presser foot in a dry, safe place when not in use to prevent damage or loss.
• Inspection: Regularly inspect the foot for any signs of wear, bending, or damage. If the foot appears damaged, replace it to avoid affecting stitch quality.

Troubleshooting

If you encounter issues while using the 1/4" Foot, consider the following:

• Inconsistent Seam Allowance:
  • Ensure the fabric edge is consistently aligned with the foot's edge.
  • Check if the foot is securely attached and not loose.
• Foot Not Sitting Flat:
  • Re-attach the foot, ensuring it is properly seated and the screw is tightened.
  • Verify compatibility with your specific Juki TL series model.
• Difficulty Attaching Foot:
  • Ensure the needle and presser foot lever are in their highest positions.
  • Consult your sewing machine's main manual for detailed instructions on changing presser feet.

For persistent issues, contact Juki customer support or a certified sewing machine technician.

Specifications

Warranty and Support

For information regarding product warranty, please refer to the documentation provided with your Juki sewing machine or visit the official Juki website. For technical assistance or support, please contact Juki customer service directly.

Juki Official Website: www.juki.com
