Introduction
The Protimeter BLD5086 Calcheck Device is designed to verify the calibration and functionality of Protimeter pin-type moisture meters. This device provides a reliable reference point to ensure your moisture meter is operating within specified parameters, crucial for accurate moisture content measurements in various materials.
Safety Information
- Keep the device dry and away from liquids.
- Handle the device with care to prevent physical damage.
- This device is not a toy; keep out of reach of children.
- Do not attempt to open or modify the device, as this may void any warranty and could lead to malfunction.
Package Contents
Upon unpacking, please ensure all items are present and undamaged:
- 1 x Protimeter BLD5086 Calcheck Device
- 2 x Replacement Pin Electrodes (typically included with compatible meters or sold separately)
Product Overview
The Calcheck device is a compact, robust tool used to confirm the operational integrity of your pin-type moisture meter. It features a calibrated resistance that simulates a specific moisture content reading, allowing for quick and easy verification.

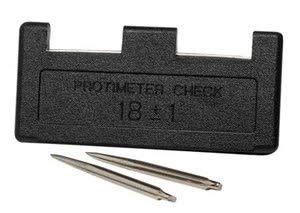

Image Description: A black rectangular Protimeter BLD5086 Calcheck device with "PROTIMETER CHECK 18 ± 1" embossed on its surface. Two metallic pin electrodes are shown separately below the device, indicating they are used with the device or are replacement parts.
Setup
- Ensure your Protimeter pin-type moisture meter is clean and in good working condition.
- Insert the pins of your moisture meter into the two designated holes on the Protimeter BLD5086 Calcheck Device. Ensure a firm and secure connection.
Operating Instructions
- With the moisture meter pins inserted into the Calcheck device, power on your moisture meter.
- Observe the reading displayed on your moisture meter.
- The expected reading for a properly functioning meter should be between 17% and 19% Moisture Content (MC). This range is typically indicated as "18 ± 1" on the device itself.
- If the reading falls within this range, your moisture meter is functioning correctly and is calibrated.
- If the reading is outside this range, refer to the Troubleshooting section or consult your specific moisture meter's manual for further guidance.
Maintenance
- Keep the Calcheck device clean and dry. Use a soft, dry cloth for cleaning.
- Store the device in a cool, dry place away from direct sunlight, extreme temperatures, and corrosive substances.
- Avoid dropping or subjecting the device to physical shock, as this can affect its calibration.
- Periodically inspect the device for any signs of damage or wear.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Meter reading outside 17-19% range | Meter pins are dirty, corroded, or damaged. | Clean or replace the moisture meter pins. Ensure they are making good electrical contact. |
| Meter reading outside 17-19% range | Moisture meter calibration issue. | Refer to your specific moisture meter's manual for calibration procedures or contact Protimeter technical support. |
| No reading or erratic reading | Poor contact between meter pins and Calcheck device. | Ensure the meter pins are fully inserted and making firm, secure contact with the Calcheck device's terminals. |
Specifications
- Model: BLD5086
- Function: Calibration check for Protimeter pin-type moisture meters
- Reference Reading: 18% ± 1% Moisture Content (MC)
- Manufacturer: Protimeter
Warranty and Support
For detailed warranty information or technical support regarding your Protimeter BLD5086 Calcheck Device, please refer to the documentation provided with your original purchase. You may also visit the official Protimeter website for up-to-date contact details for customer service and support resources.
