Traxon TI.IC.0030000 TX-Connect Smart Indoor Interconnection Cable User Manual

1. Introduction

This manual provides essential instructions for the proper installation, operation, and maintenance of the Traxon TI.IC.0030000 TX-Connect Smart Indoor Interconnection Cable. Please read this manual thoroughly before using the product to ensure safe and efficient functionality.

The Traxon TI.IC.0030000 is an 11.82-inch interconnection cable designed exclusively for use with the Traxon TX-Connect System in indoor environments. It facilitates reliable data and power transmission between compatible Traxon devices.

2. Product Overview

The Traxon TI.IC.0030000 cable is a compact and durable solution for connecting components within the Traxon TX-Connect ecosystem. Its design ensures secure and stable connections for various indoor applications.

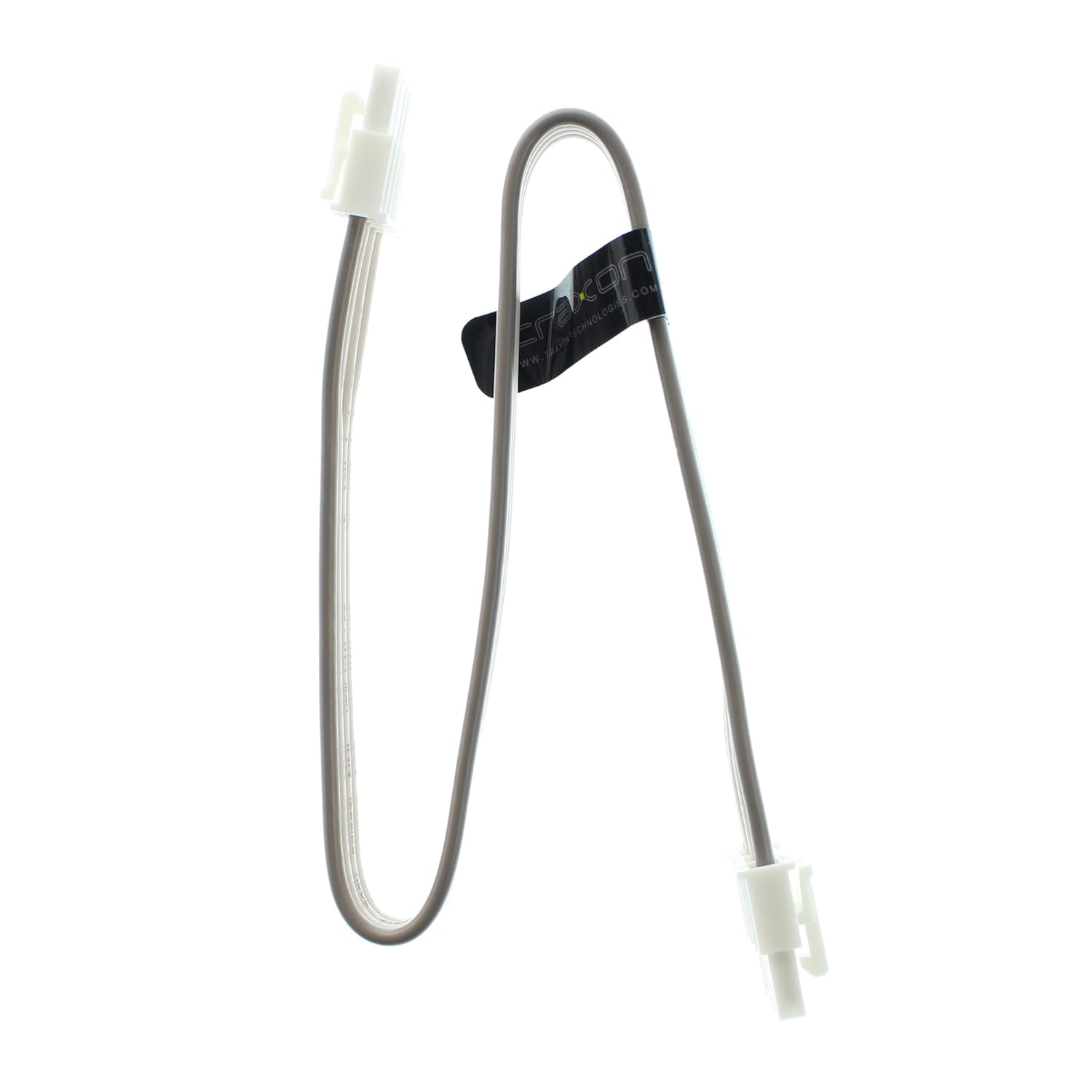

Figure 1: Traxon TI.IC.0030000 TX-Connect Smart Indoor Interconnection Cable. This image displays the full length of the 11.82-inch cable with its white connectors at each end.

3. Setup and Installation

This cable is designed for plug-and-play functionality within the specified system. Ensure all devices are powered off before making connections.

Identify Compatible Ports: Locate the designated TX-Connect ports on your Traxon devices. These ports are typically labeled or identifiable by their specific connector shape.
Connect the Cable: Gently insert one end of the TI.IC.0030000 cable into the TX-Connect output port of the first device. Ensure the connector is fully seated and secure.
Connect to Second Device: Insert the other end of the cable into the TX-Connect input port of the second device. Verify a firm connection.
Power On: Once all connections are secure, power on your Traxon TX-Connect System components.

Important Note: This cable is exclusively for indoor use and must only be connected to Traxon TX-Connect System components. Using it with incompatible systems or in outdoor environments may result in damage or malfunction.

Close-up of Traxon TX-Connect cable connector

Figure 2: Close-up view of the cable's connector. This image highlights the specific design of the connector, which ensures proper fit and secure connection within the Traxon TX-Connect System.

4. Operation

Once properly connected, the Traxon TI.IC.0030000 cable operates passively, facilitating the intended communication and power transfer between the connected Traxon TX-Connect devices. No user interaction is required for its operation beyond initial setup.

5. Maintenance and Care

To ensure the longevity and optimal performance of your Traxon TI.IC.0030000 cable, follow these guidelines:

Cleaning: Use a soft, dry cloth to gently wipe the cable and connectors. Avoid using liquid cleaners or abrasive materials.
Storage: Store the cable in a cool, dry place away from direct sunlight and extreme temperatures when not in use. Avoid sharp bends or kinks in the cable.
Handling: Always grasp the connector housing when plugging or unplugging the cable. Do not pull on the cable itself, as this can damage the internal wiring.
Environment: Ensure the cable is used strictly in indoor environments, as it is not designed to withstand outdoor elements.

6. Troubleshooting

If you experience issues with your Traxon TX-Connect System that you suspect are related to the interconnection cable, consider the following:

No Connection/Intermittent Connection:
- Ensure both ends of the cable are fully and securely seated in their respective ports.
- Verify that the cable is not visibly damaged (e.g., cuts, severe kinks).
- Test with a known working Traxon TI.IC.0030000 cable if available, to rule out the cable as the source of the problem.
System Not Powering On:
- Confirm that all power supplies for the Traxon TX-Connect System components are correctly connected and functioning.
- Ensure the cable is properly connected between the power-distributing and power-receiving components.

If problems persist after following these steps, consult the user manuals for your specific Traxon TX-Connect devices or contact Traxon customer support.

7. Specifications

The following are the technical specifications for the Traxon TI.IC.0030000 TX-Connect Smart Indoor Interconnection Cable:

Model Number	TI.IC.0030000
Brand	Traxon
Length	11.82 inches (approximately 30 cm)
Connector Type	Proprietary TX-Connect (RJ45-like)
Cable Type	Interconnection Cable (Ethernet-based signaling)
Compatible Devices	Traxon TX-Connect System components
Recommended Uses	Indoor networking, Connecting electronic devices, Stage/studio equipment
Product Dimensions	12 x 0.6 x 0.1 inches
Item Weight	1 Pound

Close-up of cable label showing model number TI.IC.0030000

Figure 3: Close-up of the cable's identification label. This image clearly shows the model number TI.IC.0030000 printed on the cable's label, confirming the product's identity.

8. Warranty and Support

For information regarding warranty coverage, technical support, or service inquiries for your Traxon TI.IC.0030000 cable, please refer to the documentation provided with your complete Traxon TX-Connect System or visit the official Traxon website. Contact details for customer support are typically available on the manufacturer's website.
