Product Overview
This manual provides instructions for the assembly, operation, and maintenance of your Hampton Bay 80-inch Antique Bronze 3-Arc Floor Lamp. This elegant floor lamp features three burlap drum shades suspended from adjustable curved metal poles, designed to enhance any room decor. It includes a rotary switch on the pole for convenient control of its lighting options.

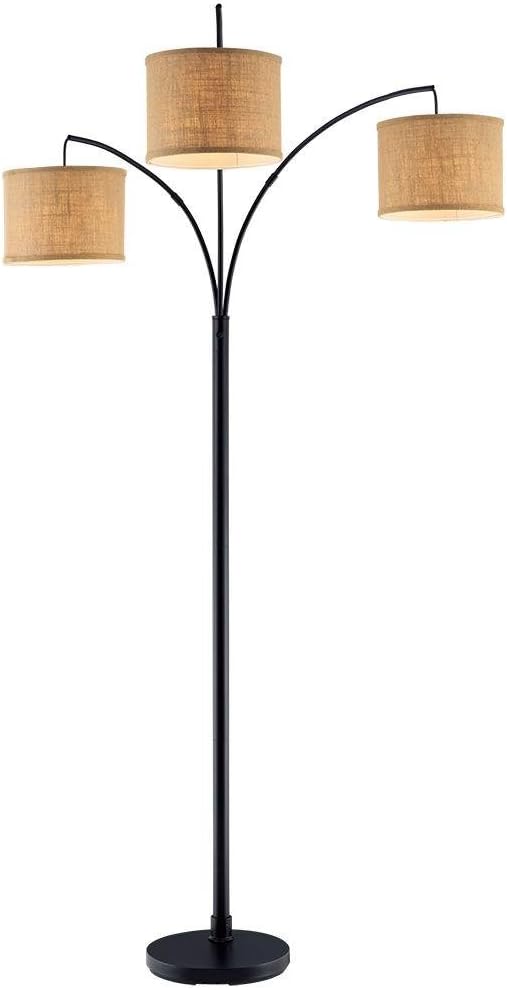

The Hampton Bay 3-Arc Floor Lamp, showcasing its antique bronze finish and three burlap drum shades.
Package Contents
Please ensure all components are present before beginning assembly:
- Floor Lamp Base and Pole Sections
- 3 x Burlap Drum Shades
- (Bulbs are NOT included and must be purchased separately)
Assembly Instructions
Follow these steps to assemble your floor lamp. No special tools are required.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
- Assemble Pole: Screw the pole sections together clockwise until secure. Ensure all connections are tight.
- Attach Base: Secure the assembled pole to the lamp base by screwing it clockwise.
- Attach Arc Arms: Connect the three arc arms to the top of the main pole. These arms are designed to curve outwards.
- Install Shades: Carefully attach each burlap drum shade to the end of its respective arc arm.
- Insert Bulbs: Screw three 60-Watt incandescent bulbs or CFL equivalent (E17 base, not included) into the sockets. Do not exceed the maximum wattage.
- Position Lamp: Place the lamp in your desired location, ensuring the power cord can reach an electrical outlet safely.
The assembled floor lamp positioned in a room, demonstrating its height and how it complements furniture.
Operating Your Lamp
The Hampton Bay 3-Arc Floor Lamp features a convenient rotary switch located on the main pole, allowing you to control the lighting output.
- Power On/Off: Rotate the switch clockwise to turn the lamp on or off.
- Adjusting Light Levels: The rotary switch offers multiple lighting configurations:
- First Turn: Activates one light (typically the front-most shade).
- Second Turn: Activates two lights (the two front shades).
- Third Turn: Activates all three lights for maximum illumination.
- Fourth Turn: Turns all lights off.
Video demonstrating the multi-light functionality of the 3-Arc Floor Lamp.
Care and Maintenance
- Cleaning: Always unplug the lamp before cleaning. Use a soft, dry cloth to dust the metal parts and shades. Do not use abrasive cleaners or polishes as they may damage the finish.
- Bulb Replacement: Ensure the lamp is unplugged and bulbs are cool before replacing. Use only E17 base bulbs, up to 60 watts incandescent or equivalent CFL/LED bulbs.
- Cord Care: Regularly inspect the power cord for any damage. Do not place heavy objects on the cord or expose it to sharp edges.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Power cord not plugged in. | Ensure the power cord is securely plugged into a working electrical outlet. |
| Bulb is loose or burnt out. | Tighten the bulb or replace it with a new one of the correct type and wattage. | |
| Faulty rotary switch. | Contact customer support if the switch appears to be malfunctioning after checking other causes. | |
| Lights flicker. | Loose bulb connection. | Tighten the bulb in its socket. |
| Incorrect bulb type or wattage. | Ensure bulbs are E17 base, 60-Watt incandescent or equivalent. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Hampton Bay |
| Model Number | AF40818AB |
| Product Dimensions | 10"D x 34.5"W x 80"H |
| Item Weight | 20.02 Pounds |
| Finish Type | Antique Bronze |
| Base Material | Metal |
| Shade Material | Burlap |
| Number of Light Sources | 3 |
| Bulb Base | E17 |
| Max Wattage (per bulb) | 60 Watts (Incandescent or CFL equivalent) |
| Switch Type | Rotary |
| Power Source | Corded Electric |
| Indoor/Outdoor Usage | Indoor |
| Certification | ETL |
Warranty Information
For specific warranty details, please refer to the warranty card included with your product or contact Hampton Bay customer service. General warranty terms typically cover manufacturing defects for a limited period from the date of purchase.
Customer Support
If you have any questions, require assistance with assembly, or need troubleshooting support, please contact Hampton Bay customer service. Contact information can usually be found on the product packaging or the manufacturer's official website.
Online Resources: Visit the Hampton Bay official website for FAQs, product registration, and additional support materials.
