1. Safety Information
Read all instructions carefully before using the appliance to prevent potential hazards and ensure proper operation. Keep this manual for future reference.
- Electrical Safety: Ensure the oven is properly grounded. Do not operate with a damaged cord or plug. Disconnect power before servicing.
- Burn Hazard: Oven surfaces become hot during use. Use oven mitts when handling hot items. Keep children away from the oven during operation.
- Fire Hazard: Do not store flammable materials in or near the oven. Clean spills immediately to prevent smoke or fire.
- Installation: Installation must be performed by a qualified technician in accordance with local codes and the provided instructions.
- Cleaning: Use non-abrasive cleaners. Ensure the oven is cool before cleaning.
2. Unpacking and Installation
Carefully unpack the oven and inspect for any damage. Retain all packaging materials until you are satisfied with the product.
2.1 Unpacking the Oven
Refer to the video below for a visual guide on safely unpacking your Empava Electric Single Wall Oven.
Video: Empava 24-Inch Electric Single Wall Oven Unboxing Guide. This video demonstrates the proper steps for unboxing and removing packaging from the oven.
After removing the outer packaging, open the oven door and remove all internal packing materials, including any cardboard inserts, foam, and accessories wrapped inside.
2.2 Dimensions and Cut-out Requirements
Ensure your cabinet opening meets the specified dimensions for proper fit and ventilation. The oven requires a 20-amp breaker and operates on 240 volts/60Hz.
Image: Product approximate dimensions are 23.42 in. W x 23.83 in. D x 23.6 in. H. Cut-out dimensions are 22.24 in. W x 22.64 in. D x 23.42 in. H. These measurements are critical for proper installation.
The oven comes with an installation kit and a standard plug for electrical connection. Consult a qualified electrician for hardwiring if necessary.
3. Product Overview
The Empava XB14 Electric Single Wall Oven is designed for efficient and versatile cooking with a 2.3 cubic foot capacity.

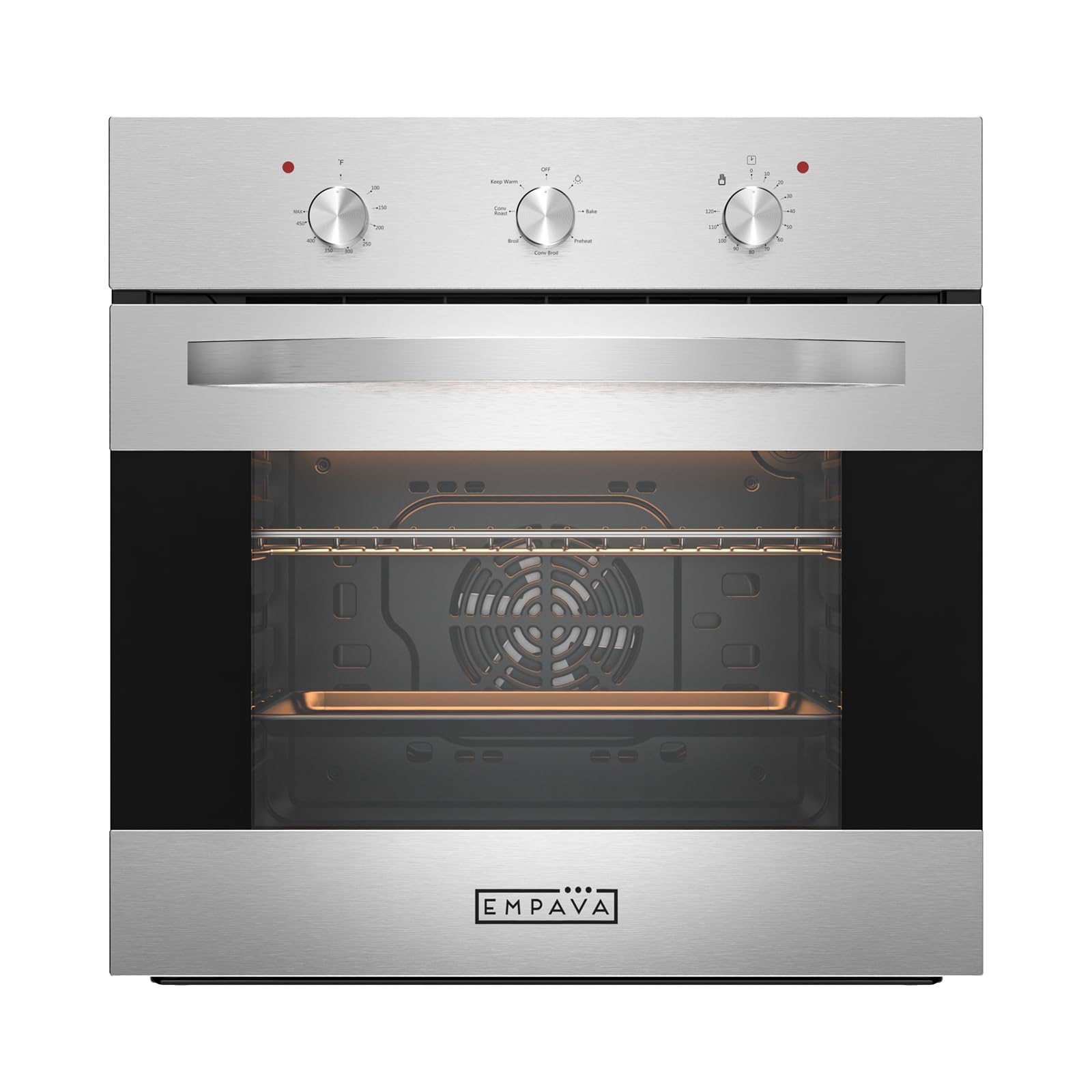

Image: Front view of the Empava 24-inch Electric Single Wall Oven, showcasing its stainless steel finish and control panel.
3.1 Control Panel
The oven features ergonomic mechanical knobs for intuitive control over cooking functions and temperature settings.
Image: A hand adjusting one of the ergonomic mechanical knobs on the oven's control panel.
3.2 Interior Features
- Spacious Interior: 2.3 cubic foot capacity accommodates various dish sizes.
- Convection Fan: Distributes hot air evenly for faster and more consistent cooking.
- 5-Layer Shelf Positions: Provides flexibility for placing baking trays and grill grates.
- Halogen Lighting: Illuminates the oven interior for clear visibility without opening the door.
- Triple-Layer Tempered Glass Door: Enhances insulation and safety by isolating high temperatures.
Image: The spacious 2.3 cubic foot interior of the oven, demonstrating its capacity for large dishes.
Image: Illustration of the convection fan circulating hot air within the oven for even cooking.
Image: The oven interior highlighting the five distinct rack positions for versatile cooking.
Image: Close-up of the warm halogen lamp inside the oven, providing clear visibility of food.
Image: The oven door, illustrating the triple-layer tempered glass design for heat insulation.
4. Operating Instructions
Familiarize yourself with the oven's functions to achieve optimal cooking results.
4.1 Cooking Functions
The oven offers 6 distinct cooking functions:
Image: Visual representation of the six cooking functions available on the Empava oven.
- Bake: Ideal for general baking, such as cakes, cookies, and casseroles.
- Preheat: Heats the oven to the desired temperature, ensuring even baking by eliminating cold spots.
- Convection Roast: Uses the convection fan to circulate hot air, suitable for roasting meats and poultry.
- Broil: Provides intense top-down heat for browning and grilling.
- Convection Broil: Combines broiling with convection for faster, more even browning.
- Keep Warm: Maintains food at a serving temperature without further cooking.
4.2 Setting Temperature and Timer
Use the mechanical knobs to set the desired temperature (up to 480°F max) and cooking time (up to 120 minutes max). The timer provides a single 'ding' when complete.
Image: A person checking the doneness of a cake inside the oven, demonstrating typical oven use.
5. Maintenance and Cleaning
Regular cleaning and maintenance ensure the longevity and optimal performance of your oven.
5.1 Interior Cleaning
The oven features a black ceramic interior designed for easy cleaning. Allow the oven to cool completely before cleaning. Use a damp cloth with mild detergent for general cleaning. For stubborn stains, use an oven cleaner specifically designed for ceramic surfaces, following the product instructions.
Image: A person cleaning the interior of the oven with a sponge, illustrating the cleaning process.
5.2 Removable Door
The oven door is removable for thorough cleaning. Consult the full manual for specific instructions on how to safely remove and reattach the door.
5.3 Exterior Cleaning
Clean the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads that can scratch the surface.
6. Troubleshooting
If you encounter issues with your oven, refer to the following common solutions. For more complex problems, contact customer support.
- Oven Not Heating: Check if the oven is properly plugged in and the circuit breaker has not tripped. Ensure the function and temperature knobs are correctly set.
- Uneven Cooking: Verify that the oven racks are positioned correctly and that food items are not overcrowding the oven, which can obstruct air circulation. The convection fan helps with even heat distribution.
- Long Preheat Time: Ensure the oven door is fully closed during preheating. Factors like ambient room temperature can affect preheat times.
- Control Knobs/Door Getting Hot: Some heat transfer to the exterior surfaces is normal during operation. Ensure proper ventilation around the oven as per installation guidelines.
7. Specifications
| Model | XB14 |
| Brand | Empava |
| Color | Black |
| Heating Method | Convection |
| Finish Type | Stainless Steel |
| Fuel Type | Electric |
| Installation Type | Wall Mount |
| Wattage | 2800 watts |
| Voltage | 240 Volts |
| Frequency | 60Hz |
| Breaker Required | 20 Amps |
| Material Type | Glass (Door) |
| Item Dimensions (D x W x H) | 23.83"D x 23.42"W x 23.6"H |
| Capacity | 2.3 Cubic Feet |
| Included Components | Electric Single Wall Oven, Installation Kit, Manual, Standard Plug (Electric Ignitor) |
| Certifications | ETL certified for US & Canada use, UL certified electrical hard wiring |
8. Warranty and Support
This Empava Electric Single Wall Oven comes with a 2-year US-based manufacturer limited warranty on parts. This warranty doubles the usual industry standard, reflecting the quality of the product.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Empava customer support. Refer to the contact information provided in the included manual or visit the official Empava website.
