Autec S7518495052122 Alloy Wheel Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, use, and maintenance of your Autec S7518495052122 alloy wheel. Please read these instructions carefully before proceeding with installation or use to ensure safety and optimal performance. Retain this manual for future reference.

2. Product Overview

The Autec S7518495052122 is a high-quality alloy wheel designed for automotive use. It features a durable monobloc design with a multi-spoke pattern and a matte black finish, suitable for various vehicle types and conditions, including winter use. Its construction from aluminum ensures a balance of strength and reduced weight.

Key Features:

• Design: Monobloc, Multi-spoke
• Material: Aluminum
• Finish: Matte Black
• Type: Suitable for winter conditions
• Load Rating: 680 kg

Figure 1: Front view of the Autec S7518495052122 alloy wheel, showcasing its multi-spoke design and matte black finish.

3. Setup and Installation

Proper installation of alloy wheels is crucial for vehicle safety and performance. It is highly recommended that installation be performed by a qualified professional technician.

3.1 Pre-Installation Checks

1. Compatibility: Verify that the wheel specifications (diameter, width, bolt pattern, offset, and hub bore) match your vehicle's requirements. This wheel has a 5x108 bolt pattern, ET49 offset, and a 70.00mm hub bore.
2. Inspection: Before mounting tires, carefully inspect each wheel for any signs of damage from shipping. Do not install damaged wheels.
3. Accessories: Ensure all necessary mounting hardware (lug nuts/bolts, hub rings if required) are correct and present.

3.2 Tire Mounting

Tires must be mounted by a professional using appropriate equipment to avoid damage to the wheel or tire. Ensure the correct tire size and type are used for the wheel and vehicle.

3.3 Vehicle Installation

1. Clean the vehicle's hub mounting surface to ensure a flush fit.
2. Mount the wheel onto the vehicle's hub, ensuring it sits flat against the mounting surface. If hub rings are required, install them correctly.
3. Install lug nuts/bolts and hand-tighten them.
4. Lower the vehicle partially so the tires just touch the ground, preventing the wheel from rotating.
5. Tighten the lug nuts/bolts in a star pattern to the vehicle manufacturer's specified torque settings using a calibrated torque wrench. Do not overtighten.
6. Fully lower the vehicle.
7. Re-torque: After driving approximately 50-100 km (30-60 miles), re-check and re-torque all lug nuts/bolts to ensure they remain securely fastened.

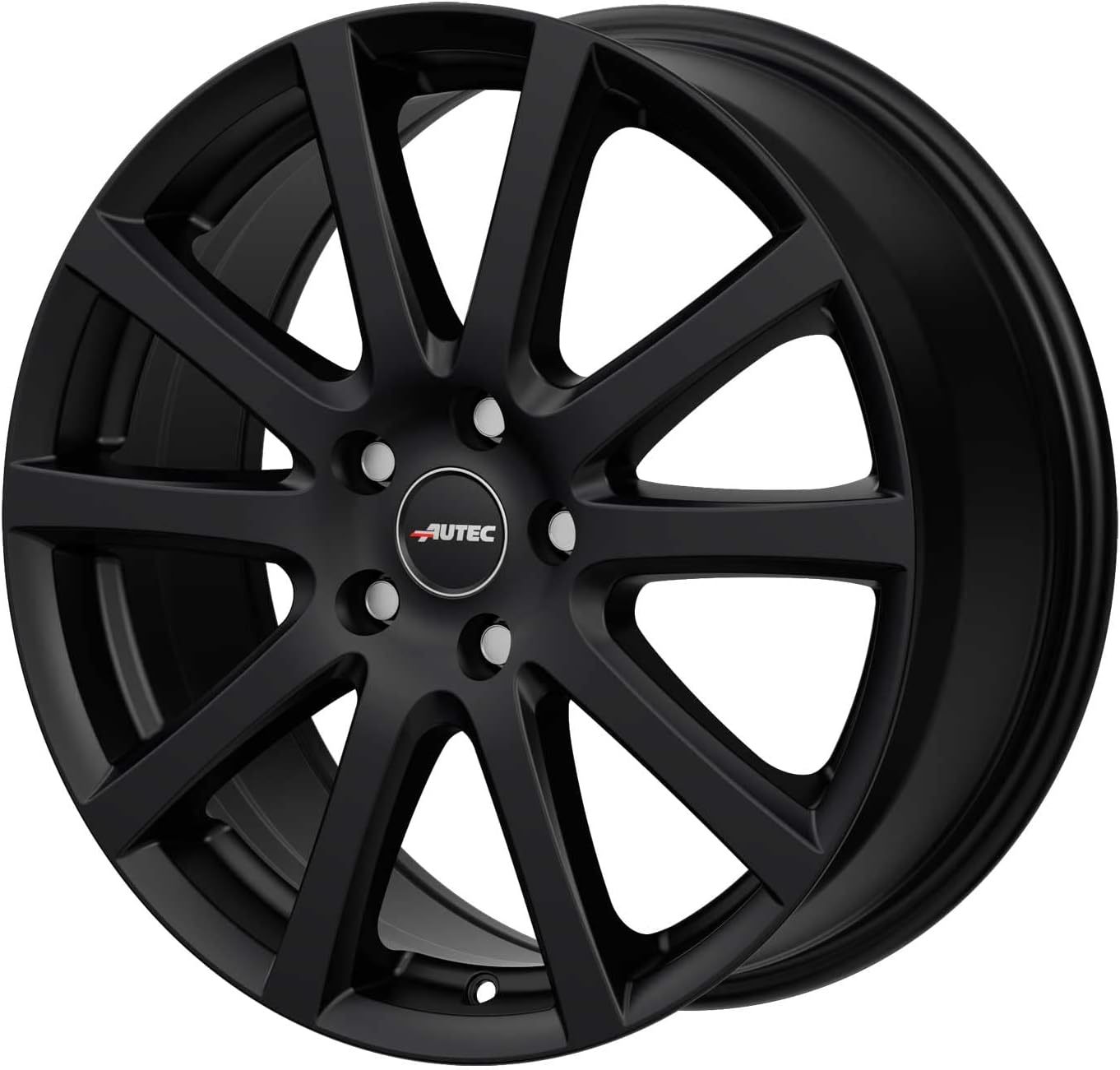

Figure 2: Angled view of the alloy wheel, highlighting the spoke depth and overall profile.

4. Operating Guidelines

Once installed, your Autec alloy wheels are designed for normal driving conditions. Adhere to the following guidelines to ensure longevity and safety:

• Driving Habits: Avoid aggressive driving over potholes, curbs, or other road hazards that could cause impact damage to the wheels.
• Tire Pressure: Maintain correct tire pressure as specified by your vehicle manufacturer. Incorrect pressure can affect handling and increase wear on both tires and wheels.
• Load Capacity: Do not exceed the wheel's maximum load rating of 680 kg.

Figure 3: Side profile of the alloy wheel, showing the rim edge and spoke structure.

5. Maintenance

Regular cleaning and inspection will help preserve the appearance and structural integrity of your alloy wheels.

5.1 Cleaning

• Clean wheels regularly with mild automotive soap and water.
• Use a soft sponge or cloth to avoid scratching the matte black finish.
• Rinse thoroughly with clean water to remove all soap residue.
• Avoid using abrasive cleaners, harsh chemicals, or stiff brushes, as these can damage the finish.
• For stubborn brake dust, use a pH-neutral wheel cleaner specifically designed for matte finishes, following the product's instructions carefully.

5.2 Inspection

• Periodically inspect wheels for any signs of damage such as cracks, bends, or deep scratches.
• Check for corrosion, especially around the lug holes and valve stem.
• If any damage is found, consult a professional wheel repair specialist immediately. Do not continue to use a damaged wheel.

Figure 4: Rear view of the alloy wheel, showing the mounting surface and inner barrel.

6. Troubleshooting

This section addresses common issues that may arise with alloy wheels.

6.1 Vibrations or Shaking

• Possible Cause: Wheel imbalance, improper mounting, bent wheel, or damaged tire.
• Solution: Have the wheels and tires professionally inspected and balanced. Check lug nut/bolt torque. Inspect for wheel damage.

6.2 Air Loss from Tire

• Possible Cause: Puncture, faulty valve stem, bead leak, or wheel damage.
• Solution: Inspect the tire for punctures. Check the valve stem for leaks. Have a professional inspect the tire bead and wheel for damage.

6.3 Visible Damage (Cracks, Bends)

• Possible Cause: Impact with road hazards.
• Solution: Immediately cease using the damaged wheel. Consult a professional wheel repair specialist or replace the wheel. Do not attempt to repair structural damage yourself.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the terms and conditions provided by your retailer or the official Autec website. If you require technical support or have questions regarding your Autec S7518495052122 alloy wheel, please contact the seller or Autec customer service directly.
