Introduction
The Gilmour Twist Hose Nozzle is designed for efficient cleaning and watering tasks. Its robust construction and adjustable spray pattern make it suitable for various outdoor applications, from a powerful jet stream for cleaning to a gentle rinse for delicate plants. This manual provides essential information for the proper use and care of your nozzle.
- Adjustable Spray: Easily change spray from a powerful jet stream to a light rinse.
- Ergonomic Design: Features a curved handle with a non-slip grip for comfortable, continuous use.
- Durable Construction: Made of metal for lasting performance.
- Versatile Use: Ideal for washing cars, cleaning driveways, or general outdoor watering.

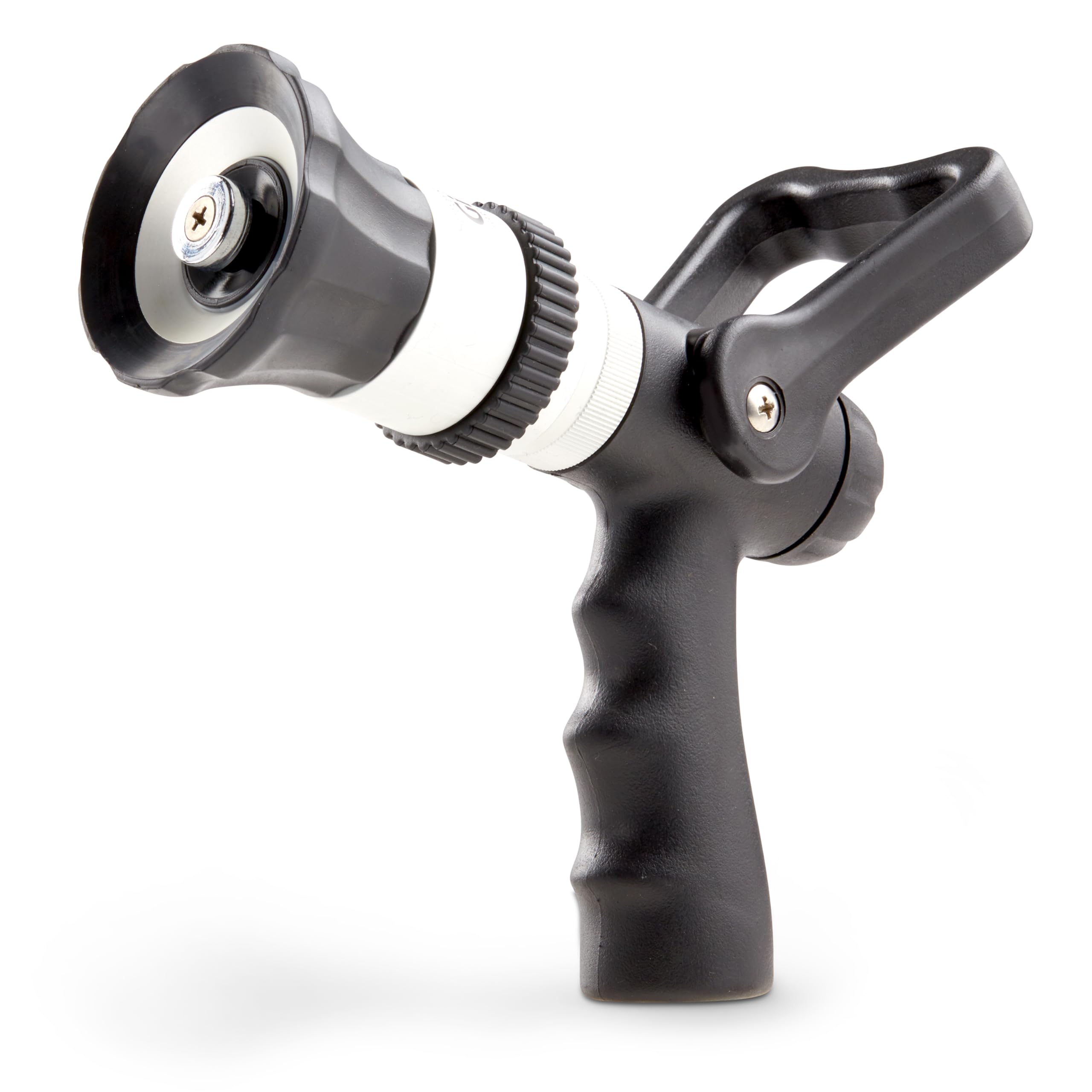

Image: The Gilmour Twist Hose Nozzle, showcasing its design and robust construction.
Setup
Follow these steps to properly attach your Gilmour Twist Hose Nozzle to a standard garden hose:
- Ensure the water supply to your garden hose is turned off.
- Inspect the hose connection for any debris or damage. Clean if necessary.
- Thread the nozzle onto the end of your garden hose. Turn clockwise until it is hand-tight.
- Avoid over-tightening, as this can damage the threads or washer. A snug fit is sufficient to prevent leaks.
- Turn on the water supply slowly and check for any leaks at the connection point. If a leak occurs, tighten slightly or check the washer inside the nozzle connection.
Operating Instructions
The Gilmour Twist Hose Nozzle features a fireman-style handle for water flow control and an adjustable head for spray patterns.
Controlling Water Flow:
- The large comfort grip handle acts as the primary control for water flow.
- Squeeze the handle to open the valve and allow water to flow.
- Release the handle to stop the water flow.
Adjusting Spray Pattern:
- The nozzle head can be twisted to change the spray pattern.
- Rotate the nozzle head clockwise for a concentrated, powerful jet stream, suitable for cleaning tough dirt or reaching distant areas.
- Rotate the nozzle head counter-clockwise for a wider, gentler rinse, ideal for watering delicate plants or broad coverage.
- Experiment with different twists to find the optimal spray pattern for your specific task.
Image: Illustration of the Gilmour Twist Hose Nozzle demonstrating various spray patterns from jet to gentle rinse.
Image: A person using the Gilmour Twist Hose Nozzle to water plants, demonstrating practical application.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your hose nozzle.
- Cleaning: Periodically rinse the nozzle with clean water to remove any dirt, debris, or mineral buildup that may affect spray patterns or flow.
- Storage: Store the nozzle in a dry, protected area when not in use, especially during freezing temperatures, to prevent damage from ice expansion.
- Gasket Inspection: Regularly check the rubber washer (gasket) inside the hose connection for wear or damage. Replace if necessary to prevent leaks.
- Lubrication: If the twist mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to the moving parts of the nozzle head.
Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaking from hose connection | Loose connection, worn or missing washer. | Tighten the connection. Check and replace the rubber washer if damaged or missing. |
| Weak or inconsistent spray | Low water pressure, debris in nozzle head, partially closed water source. | Ensure water source is fully open. Check for kinks in the hose. Clean any debris from the nozzle opening. |
| Difficulty adjusting spray pattern | Mineral buildup, lack of lubrication. | Clean the nozzle head thoroughly. Apply a small amount of silicone lubricant to the twisting mechanism. |
| No water flow | Water supply off, hose kinked, nozzle completely blocked. | Ensure water supply is on. Straighten any hose kinks. Check for and remove any blockage in the nozzle. |
Specifications
Key specifications for the Gilmour Twist Hose Nozzle (Model FD1):
- Model Number: FD1
- Material: Metal
- Item Dimensions (L x W x H): 9 x 3.6 x 7.9 inches
- Exterior Finish: Metal
- Inlet Connection Type: Threaded
- Outlet Connection Type: NPT
- Number of Ports: 2
- Outlet Connection Size: 3.25 Inches
- Unit Count: 17.6 Ounce
- Valve Type: Fireman Valve
- UPC: 034411126417
Warranty Information
The Gilmour Twist Hose Nozzle comes with a limited warranty against material and manufacturing defects. For specific details regarding warranty coverage, duration, and how to make a claim, please refer to the warranty documentation included with your purchase or visit the official Gilmour website.
Support
If you require further assistance, have questions not covered in this manual, or need to report an issue, please contact Gilmour customer support. You can typically find contact information on the product packaging or on the official Gilmour website (Gilmour Store).
