TAFFIO TF500B 7-inch Android Car Radio User Manual

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of your TAFFIO TF500B 7-inch Android Car Radio. This multimedia system is designed for compatibility with Fiat 500 models manufactured between 2007 and 2015.

The system offers advanced features including a touchscreen display, Android operating system, navigation, Bluetooth connectivity, and support for various media formats.

2. Safety Information

• Professional Installation Recommended: Due to the complexity of vehicle electrical systems, professional installation is strongly advised to prevent damage to the device or your vehicle.
• Driving Safety: Do not operate the device in a manner that distracts you from driving. Always prioritize road safety.
• Power Supply: Ensure the device is connected to the correct power supply as specified in the wiring diagram. Incorrect voltage can cause damage.
• Temperature: Avoid exposing the device to extreme temperatures or direct sunlight for prolonged periods.
• Moisture: Keep the device dry. Exposure to moisture can lead to malfunction or damage.

3. Package Contents

Verify that all items are present in the package:

• TAFFIO Multimedia System (TF500B)
• Connection Cables
• GPS Antenna
• Radio Antenna
• User Manual (PDF via email)

Image: Included connection cables and accessories.

4. Setup and Installation

The TAFFIO TF500B is designed for a custom fit in the Fiat 500 (2007-2015), replacing the original radio without requiring additional adapters or mounting frames. Professional installation is highly recommended.

4.1. Pre-Installation Overview

Image: Comparison of the dashboard before and after installing the TAFFIO multimedia system.

The image above illustrates the visual transformation of your Fiat 500 dashboard from the original radio setup to the integrated TAFFIO multimedia system. The new unit seamlessly blends with the vehicle's interior.

4.2. Accessing Air Control

To access the air control mechanisms, the cover of the unit needs to be opened. This design ensures that the vehicle's original functionalities remain accessible.

Image: Instructions for opening the unit cover to access air controls.

4.3. Wiring and Connections

Connect the provided wiring harness to the vehicle's existing connectors. Ensure all connections are secure. The system supports original steering wheel controls, Interscope amplifier, and Blue & Me functionality.

• Main Power Harness: Connects the unit to the vehicle's power and speaker systems.
• GPS Antenna: Connect for navigation functionality. Position in a location with clear sky view.
• Radio Antenna: Connect for FM/AM radio reception.
• RCA Connections: For AUX A/V input, DVR camera, digital TV inputs, and audio/video outputs.
• USB/SD Slots: For media playback and data transfer.
• Rear View Camera Input: Dedicated RCA input for a reverse camera, with automatic switching.

5. Operating Instructions

5.1. Basic Operation and User Interface

The unit features a 1024 x 600 resolution capacitive touchscreen display. The intuitive interface supports multiple languages. Navigate through menus by touching the icons on the screen.

Image: Main menu interface with various application icons.

5.2. Navigation System

The integrated GPS navigation system supports all Android-based navigation software. It includes modern European map material with features like speed warnings, radar warnings, Points of Interest (POI), and 3D buildings. The 2-zone function allows you to listen to music while navigating.

• Online TMC Function: Supports online Traffic Message Channel (TMC) when connected to the internet via a smartphone hotspot.

5.3. Radio (FM/AM Tuner)

The unit features an FM/AM tuner with RDS (Radio Data System). You can select radio regions including Asia, Europe, Russia, America 1, America 2, and Japan.

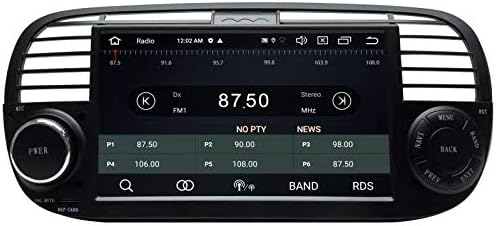

Image: Radio interface showing frequency and station information.

5.4. Bluetooth Connectivity

Connect your smartphone via Bluetooth for hands-free calling and music streaming. The system supports phonebook synchronization.

• Hands-free Calling: Make and receive calls directly from the unit's screen.
• Music Streaming: Play audio from your connected device wirelessly.

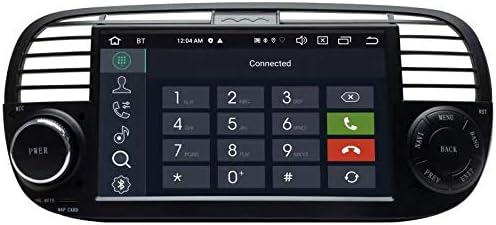

Image: Bluetooth hands-free dial pad.

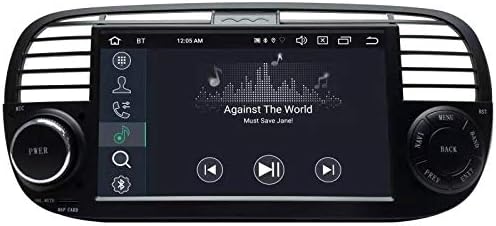

Image: Music playback interface.

5.5. USB/SD Media Playback

Utilize the USB and SD card slots for playing photos, music, and videos. Supported formats include 1080P H264 MP4 AVI RMVB FLV MKV for video, and MP3 WMA FLAC APE AAC for audio.

5.6. Screen Mirroring

The integrated screen mirroring function (Airplay & Miracast Mirror Link) allows for wireless transfer of image and sound from compatible Apple iPhone and Android mobile phones to the unit's display.

5.7. Rear View Camera

Connect a compatible RCA (CINCH) rear view camera. The system features an automatic switching function when reverse gear is engaged.

5.8. Audio Settings

Adjust audio output settings, including equalizer, balance, and sound field, to customize your listening experience.

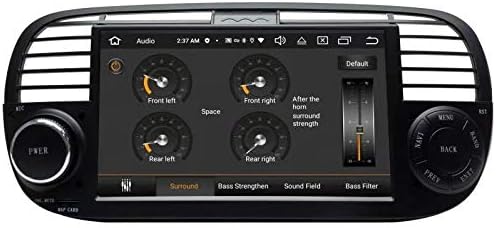

Image: Audio equalizer and sound settings.

5.9. Optional Components

The system supports various optional components for enhanced functionality:

• Apple CarPlay & Android Auto USB Module: For seamless smartphone integration.
• DAB+ Digital Radio Adapter: For digital radio reception.
• Tire Pressure Monitoring System (TPMS): For real-time tire pressure data.
• DVR Dash Cam: For recording driving footage.
• DVB-T2 TV Receiver: For digital television reception.
• OBDII Auto Check Diagnose: For vehicle diagnostics.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the screen and unit exterior. Avoid abrasive cleaners or solvents.
• Software Updates: Periodically check the manufacturer's website or contact support for available software updates to ensure optimal performance and access to new features.
• Data Backup: Regularly back up any important data stored on the device, if applicable.

7. Troubleshooting

If you encounter issues with your TAFFIO TF500B, consider the following general troubleshooting steps:

• No Power: Check all power connections and the vehicle's fuse box. Ensure the unit is properly seated.
• No Sound: Verify speaker connections, volume settings, and audio source selection.
• Touchscreen Unresponsive: Try restarting the device. Ensure the screen is clean and free of debris.
• GPS Signal Issues: Ensure the GPS antenna has a clear view of the sky and is securely connected.
• Bluetooth Connection Problems: Ensure Bluetooth is enabled on both the unit and your mobile device. Try unpairing and re-pairing the devices.
• System Freeze/Crash: Perform a soft reset (refer to the PDF manual for specific instructions if available) or disconnect power for a few minutes.

If problems persist, contact customer support for further assistance.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the purchase documentation or contact the seller/manufacturer directly. Keep your proof of purchase for warranty claims.
