1. Product Overview
The BESTEK BTWA01 is a compact, automatic top-load washing machine designed for small living spaces. With a 3.8kg washing capacity, it offers efficient laundry solutions for single-person households or shared accommodations. Its features include multiple wash courses, water-saving options, and an antibacterial pulsator for enhanced cleanliness.
Image 1.1: The BESTEK BTWA01 compact washing machine shown in different small installation environments, highlighting its space-saving design. Dimensions are approximately 470mm width, 500mm depth, and 790mm height.
2. Setup and Installation
Before operating the washing machine, ensure proper installation of all components. This includes attaching the drain hose, water supply hose, and securing the bottom cover.
2.1. Attaching the Bottom Cover
Locate the black bottom cover within the packaging. Carefully insert it into the designated slot at the base of the main unit.
Image 2.1: Illustration of how to correctly insert the bottom cover into the base of the washing machine. The cover is typically found between the packaging and the styrofoam.
2.2. Connecting Hoses
Connect the water supply hose to a suitable water tap and the washing machine's water inlet. Ensure the drain hose is securely attached to the machine's drain outlet and positioned to discharge water into a drain.
Image 2.2: The included accessories: a drain hose, a water supply hose, and the user manual. These are essential for proper setup and operation.
3. Operating Instructions
The BESTEK BTWA01 offers various wash courses and water level adjustments for different laundry needs.
3.1. Control Panel Overview
The control panel features push buttons for selecting wash courses, adjusting water levels, and starting/pausing cycles.
Image 3.1: The control panel showing selectable courses: Standard, Quick, Bulky, Soak, Soft, and Spin-dry. Indicators for remaining time and water level are also visible.
3.2. Water Level Adjustment
The machine features a 6-stage water level adjustment. You can manually select a water level from 1 (10L) to 6 (33L). For standard courses, the machine can automatically detect the laundry load and set an appropriate water level if not manually adjusted. The quick wash course does not allow manual water level adjustment.
Image 3.2: A visual representation of the 6 water level settings, ranging from 10L to 33L. The quick wash course uses approximately 34L, and the standard course uses approximately 67L.
3.3. Wash Courses and Capacity
Select from courses such as Standard, Quick, Bulky, Soak, Soft, and Spin-dry. The maximum washing capacity is 3.8kg. If your laundry exceeds this amount, divide it into multiple loads to ensure effective cleaning and prevent damage to the machine.
| Item | Weight (Approx.) | Item | Weight (Approx.) |
|---|---|---|---|
| Work clothes (mixed) | 800g | Sheets (cotton) | 500g |
| Pajamas (cotton) | 500g | Bath towel (cotton) | 300g |
| Y-shirt (mixed) | 200g | Briefs (cotton) | 50g |
| Undershirt (cotton) | 130g | Socks (mixed) | 50g |
Note: The maximum capacity is 3.8kg. For larger loads, divide laundry into smaller batches and wash using an appropriate course.
3.4. Powerful Water Flow
Despite its compact size, the washing machine generates a powerful water flow through its pulsator, ensuring thorough cleaning. The power consumption during washing is 270W, and during spin-drying, it is 200W (approximately 63 Wh equivalent).
Image 3.3: A visual representation of the strong water current created by the pulsator, designed to effectively remove dirt from clothes.
4. Maintenance
Regular maintenance ensures the longevity and hygiene of your washing machine.
4.1. Stainless Steel Tub and Antibacterial Pulsator
The machine is equipped with a stainless steel tub and an antibacterial pulsator. These features help to inhibit the growth of black mold and maintain a clean washing environment. Periodically clean the tub and pulsator according to the instructions in the full manual to ensure optimal performance.
Image 4.1: The interior of the stainless steel tub with the antibacterial pulsator, illustrating its design to prevent mold and bacteria growth.
5. Product Specifications
| Feature | Detail |
|---|---|
| Brand Name | BESTEK |
| Model Number | BTWA01 |
| Washing Capacity | 3.8 kg |
| Product Dimensions (D x W x H) | 50 x 47 x 79 cm |
| Product Weight | 20 Kilograms |
| Special Features | Automatic operation, 6-stage water level adjustment, Antibacterial pulsator |
| Color | White |
| Operation Panel Type | Push button |
| Door Position | Top |
| Power Consumption (Washing) | 270W |
| Power Consumption (Spin-drying) | 200W (approx. 63 Wh equivalent) |
| Included Accessories | Drain hose, Water supply hose, User manual |

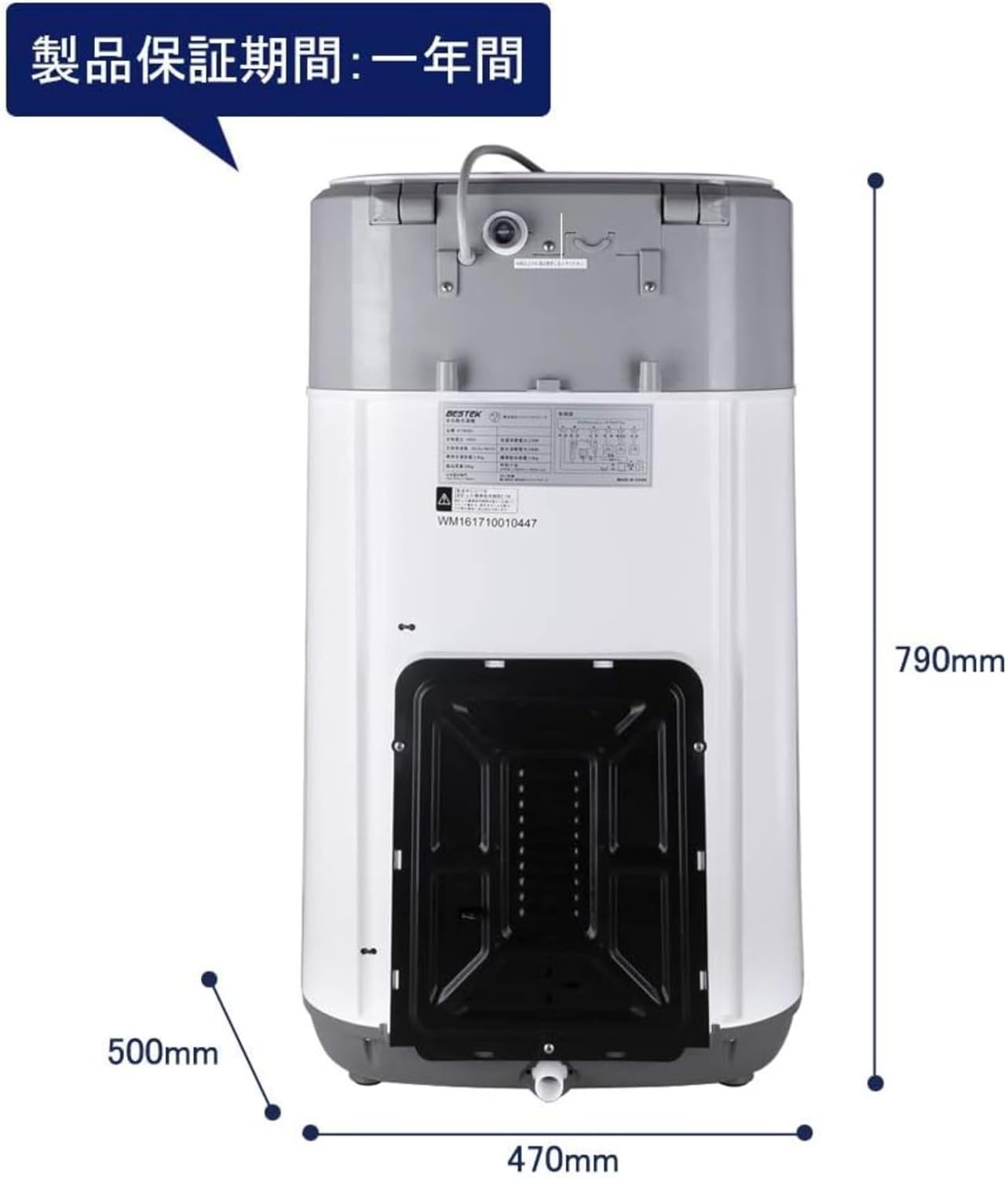

Image 5.1: Rear view of the washing machine, illustrating its dimensions: 470mm width, 500mm depth, and 790mm height. The product warranty period is one year.
6. Troubleshooting
This section provides solutions to common issues you might encounter with your washing machine. For more detailed troubleshooting, please refer to the complete user manual.
- Machine does not start: Ensure the power cord is securely plugged in and the water supply is turned on. Check if the lid is properly closed.
- Water does not fill: Verify that the water supply hose is correctly connected and the water tap is open. Check for kinks in the water supply hose.
- Water does not drain: Inspect the drain hose for blockages or kinks. Ensure the drain hose is positioned correctly and not too high.
- Excessive vibration or noise: Make sure the washing machine is placed on a flat, stable surface. Distribute laundry evenly inside the tub to prevent imbalance.
- Clothes not clean: Do not overload the machine. Use the appropriate amount of detergent for the load size and water hardness. Select the correct wash course for the type of fabric and soil level.
7. Warranty and Support
The BESTEK BTWA01 washing machine comes with a one-year product warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
For technical support, service, or further inquiries, please contact BESTEK customer service. Refer to the contact information provided in your full user manual or visit the official BESTEK website.
This product is from a Japanese small and medium-sized enterprise (SME) brand.
8. Product Videos
8.1. Product Features Overview
Video 8.1: This video provides a quick overview of the BESTEK BTWA01 washing machine's key features, including its compact design, powerful water flow, and antibacterial tub. It highlights the benefits for small living spaces.
8.2. Water Saving and Course Options
Video 8.2: A short preview video demonstrating the water-saving capabilities and various wash course options available on the BESTEK BTWA01 washing machine. It briefly shows the water level adjustments and course selections.
