KITCHEN MOVE BAT-42LS02A

KITCHEN MOVE LARGO 42L Automatic Kitchen Bin

Model: BAT-42LS02A

Introduction

Thank you for choosing the KITCHEN MOVE LARGO 42L Automatic Kitchen Bin. This manual provides essential information for the safe and efficient use of your new automatic bin. Please read these instructions carefully before use and retain them for future reference.

This automatic bin features a touchless infrared sensor for hygienic operation, a durable stainless steel body, and a matte grey finish designed to resist fingerprints. Its rectangular shape and 42-liter capacity make it suitable for various spaces, including kitchens and bathrooms.

Product Overview

The KITCHEN MOVE LARGO automatic bin is designed for convenience and hygiene. Key components include:

KITCHEN MOVE LARGO 42L Automatic Kitchen Bin in a modern kitchen setting

Image: The KITCHEN MOVE LARGO 42L Automatic Kitchen Bin in matte grey stainless steel, positioned in a contemporary kitchen.

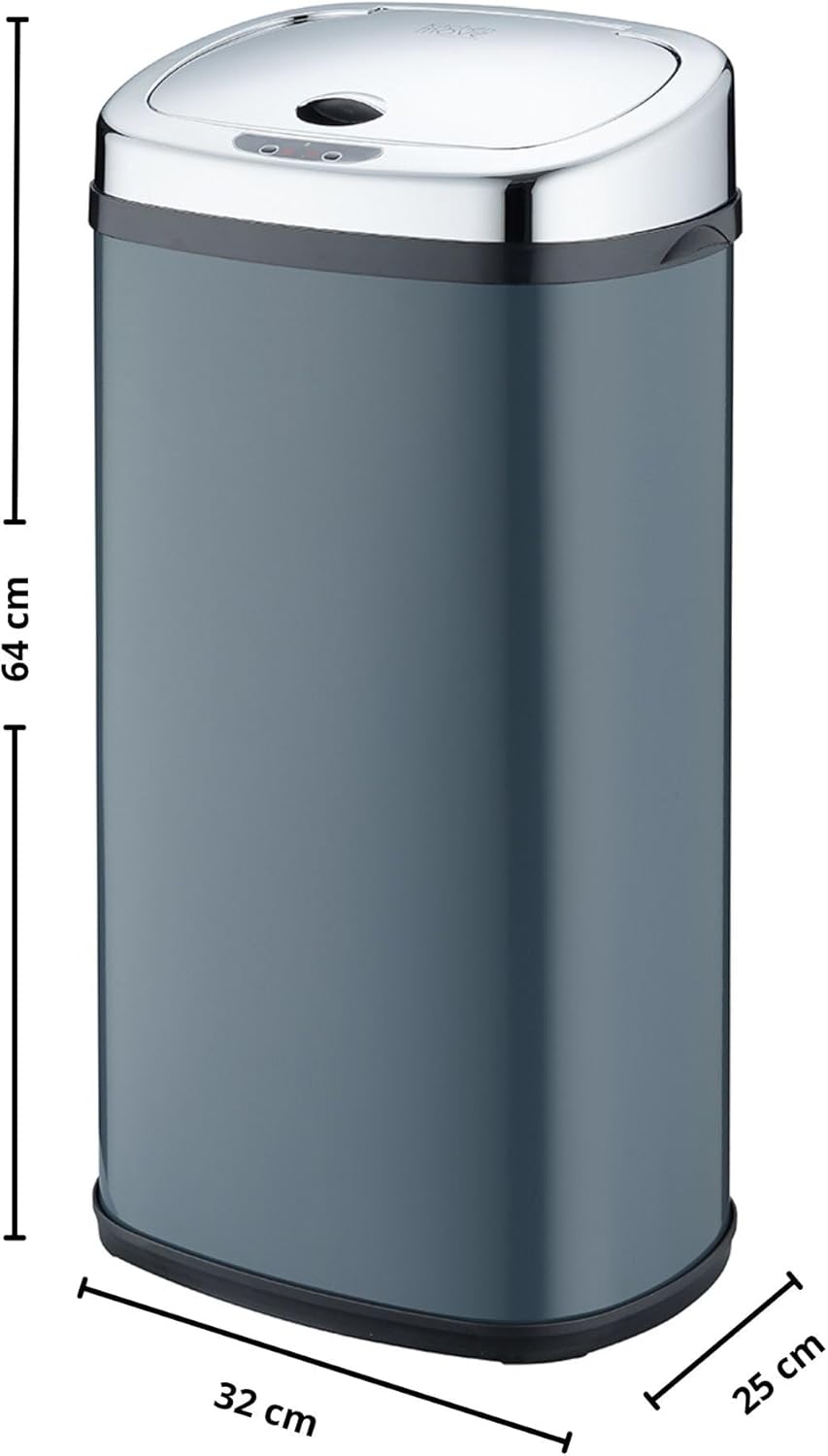

Dimensions of KITCHEN MOVE LARGO 42L Automatic Kitchen Bin

Image: Detailed dimensions of the KITCHEN MOVE LARGO 42L Automatic Kitchen Bin, showing a height of 64 cm, width of 32 cm, and depth of 25 cm.

Setup

  1. Unpack the Bin: Carefully remove all packaging materials. Ensure all components are present: bin body, sensor lid, and bag retaining ring.
  2. Install Batteries: The sensor lid requires 4 x LR06 (AA) batteries (not supplied). Locate the battery compartment on the underside of the lid. Insert the batteries, ensuring correct polarity (+/-). Close the battery compartment securely.
  3. Attach Bag Retaining Ring: Place a trash bag inside the bin. Secure the top edge of the trash bag by fitting the plastic retaining ring over it, ensuring the bag is held firmly in place and does not slip.
  4. Place the Lid: Carefully place the sensor lid onto the bin body, ensuring it sits flush and is properly aligned.
  5. Position the Bin: Place the bin on a flat, stable surface. The non-slip base will help protect your flooring. Ensure there is enough clearance above the sensor for proper operation (approximately 15 cm).

Operating Instructions

Automatic Sensor Operation

The bin features an infrared sensor for hands-free operation, promoting hygiene and convenience.

Manual Operation

For extended opening or specific tasks, you can use the manual control buttons.

The lid features a silent closing mechanism and an anti-odor seal to minimize unpleasant smells.

Maintenance

Regular cleaning and proper care will ensure the longevity and optimal performance of your KITCHEN MOVE LARGO bin.

Troubleshooting

ProblemPossible CauseSolution
Lid does not open automatically.
  • Batteries are dead or incorrectly installed.
  • Sensor is dirty or obstructed.
  • Power switch is OFF.
  • Replace batteries, ensuring correct polarity.
  • Clean the sensor with a soft, dry cloth.
  • Ensure the power switch on the lid is in the ON position.
Lid opens or closes slowly.Low battery power.Replace batteries.
Lid does not close completely.
  • Obstruction preventing closure.
  • Bag retaining ring or trash bag is misaligned.
  • Check for any objects blocking the lid's path.
  • Adjust the trash bag and retaining ring to ensure they do not interfere with the lid mechanism.
Unpleasant odors persist.
  • Bin or lid requires cleaning.
  • Trash bag is not properly sealed by the retaining ring.
  • Clean the bin and lid thoroughly as per maintenance instructions.
  • Ensure the trash bag is correctly fitted and secured by the retaining ring to create an effective seal.

Specifications

BrandKITCHEN MOVE
Model NumberBAT-42LS02A
ColorMatte Grey
Capacity42 Liters
MaterialStainless Steel (Body), ABS (Lid)
Dimensions (L x W x H)32 x 25 x 64 cm
Item Weight2.5 Kilograms
Opening MechanismMotion Sensor
Power Source4 x LR06 (AA) Batteries (not included)
Recommended UseKitchen, Bathroom
Special FeatureLid, Anti-fingerprint, Silent Close, Odor Seal

Warranty and Support

Specific warranty information for the KITCHEN MOVE LARGO 42L Automatic Kitchen Bin is not available in the provided product details. For warranty claims or technical support, please contact KITCHEN MOVE customer service directly or refer to your purchase documentation.

Information regarding the availability of spare parts is currently unavailable.
