Introduction
The Real Flame Riverside Gas Fire Pit is designed to enhance your outdoor living space. This manual provides essential information for the safe assembly, operation, and maintenance of your fire pit.
Key features include a 50,000 BTU burner, a natural gas conversion kit, and electronic push-button ignition.
Safety Information
General Safety Warnings
- Read all instructions before assembly and use.
- For outdoor use only. Do not use indoors or in enclosed areas.
- Keep children and pets away from the fire pit.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Always ensure proper ventilation.
- Proposition 65 Warning: This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Package Contents
Included in the Box
- Fire bowl
- LP hose and regulator
- Lava rock filler
- Natural gas conversion kit
- Electronic ignition
- Tank seat
- Protective cover
- 1 AA battery (for ignition)
Setup
Assembly Instructions
The Real Flame Riverside Fire Pit requires minimal assembly. Ensure all components are present before beginning.
- Carefully unbox the fire pit components. The unit is heavy; assistance is recommended.
- Attach the necessary support legs or base as per the included hardware.
- Place the lava rock filler evenly around the burner ring in the fire bowl. Do not cover the igniter or burner ports.
- Connect the LP hose and regulator to a standard 20 lb propane tank. Ensure all connections are tight.
- If converting to natural gas, follow the specific instructions provided with the natural gas conversion kit. This process should be performed by a qualified installer.
- Insert 1 AA battery into the electronic igniter module.
Image: The Real Flame Riverside Fire Pit with its dimensions clearly marked, showing a diameter of 36.35 inches and a height of 13.0 inches.
Image: The Real Flame Riverside Fire Pit with the propane hose and regulator connected, ready for gas supply.
Operating Instructions
Lighting the Fire Pit
- Ensure the propane tank valve is fully open (turn counter-clockwise).
- Locate the control knob on the side of the fire pit. Push the control knob in and turn it to the 'LOW' position.
- While holding the control knob in, press and hold the electronic igniter button until the burner ignites. You should hear a clicking sound.
- Once ignited, continue to hold the control knob for 10-15 seconds to ensure the flame is established.
- Release the control knob. If the flame extinguishes, repeat the lighting procedure.
- Adjust the flame height by turning the control knob between 'LOW' and 'HIGH' settings.
Turning Off the Fire Pit
- Turn the control knob to the 'OFF' position.
- Close the valve on the propane tank by turning it clockwise until fully closed.
- Allow the fire pit to cool completely before covering or moving.
Image: The Real Flame Riverside Fire Pit actively burning with a vibrant flame, set in an inviting outdoor patio environment.
Maintenance
Cleaning and Care
- Always ensure the fire pit is completely cool before cleaning.
- Wipe exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners.
- Inspect the hose and connections regularly for any signs of damage or leaks.
- Keep the burner area clear of debris.
Storage
- When not in use, especially during inclement weather or extended periods, cover the fire pit with the provided protective cover.
- Store the propane tank in a well-ventilated area, away from direct sunlight and heat sources.
Troubleshooting
Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite | No gas flow | Check propane tank valve, ensure connections are secure. |
| Burner does not ignite | Igniter not sparking | Check AA battery in igniter module. |
| Low flame | Low gas pressure | Check propane tank level, ensure regulator is functioning correctly. |
| Flame extinguishes | Wind | Consider using a wind guard (if available separately) or repositioning the fire pit. |
Specifications
Product Specifications
- Brand: Real Flame
- Model: C539LP-GLG
- Dimensions: 36.25"D x 36.25"W x 13"H
- Weight: 99 lbs
- Material: Stone (Fiber-cast concrete)
- Fuel Type: Propane or Natural Gas (conversion kit included)
- BTU Output: 50,000 BTU
- Burner Size: 15" Round Stainless Steel
- Ignition: Push Button Electronic
- Battery: 1 AA (included)

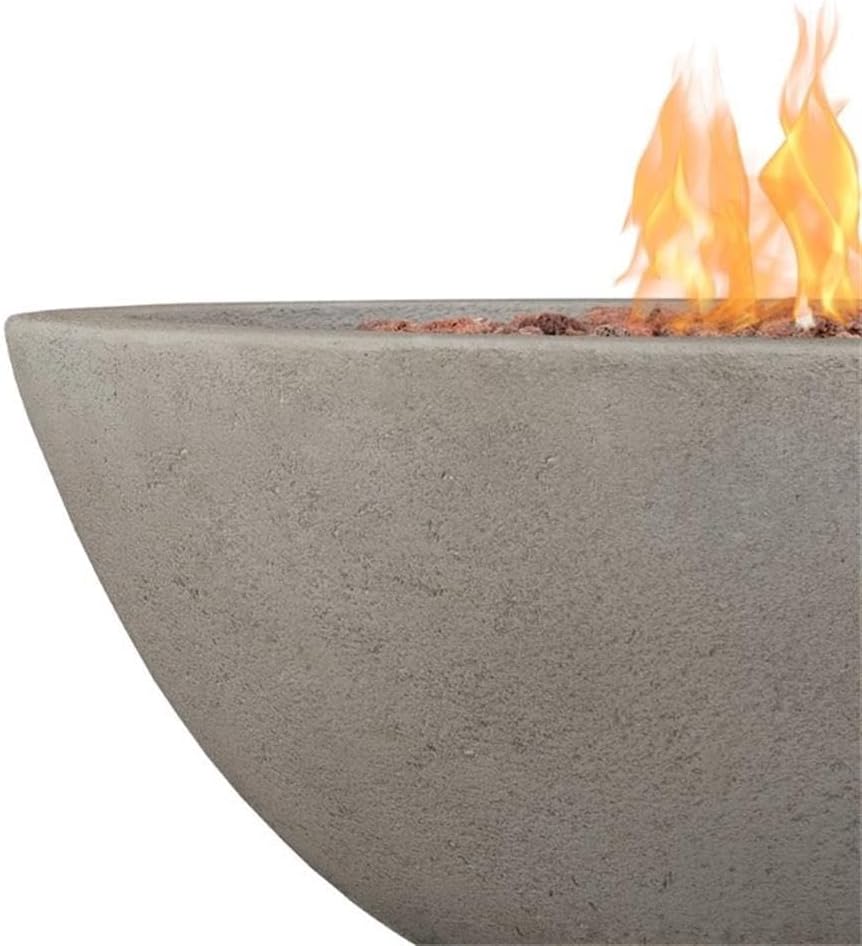

Image: A detailed close-up of the fiber-cast concrete material, highlighting the texture and finish of the fire pit.
Warranty and Support
Warranty Information
This Real Flame product comes with a 1-year limited warranty. Please refer to the warranty card included in your package for full details and terms.
Customer Support
For technical assistance or warranty claims, please contact Real Flame customer support.
