1. Introduction
Thank you for choosing the Voltas 1 Ton 5 Star Split Air Conditioner, model 1.0T VOLTAS SAC 125 DY. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new air conditioning unit. Please read this manual thoroughly before using the appliance and keep it for future reference.
Important Safety Information
- Always ensure the unit is properly grounded.
- Do not attempt to repair or modify the unit yourself. Contact qualified service personnel.
- Keep the area around the outdoor unit clear of obstructions.
- Ensure proper ventilation during operation.
- Do not insert objects into the air outlet or inlet.
2. Product Overview
The Voltas 1 Ton 5 Star Split AC is designed for efficient cooling and comfort. It features advanced technology for reliable performance and energy savings.

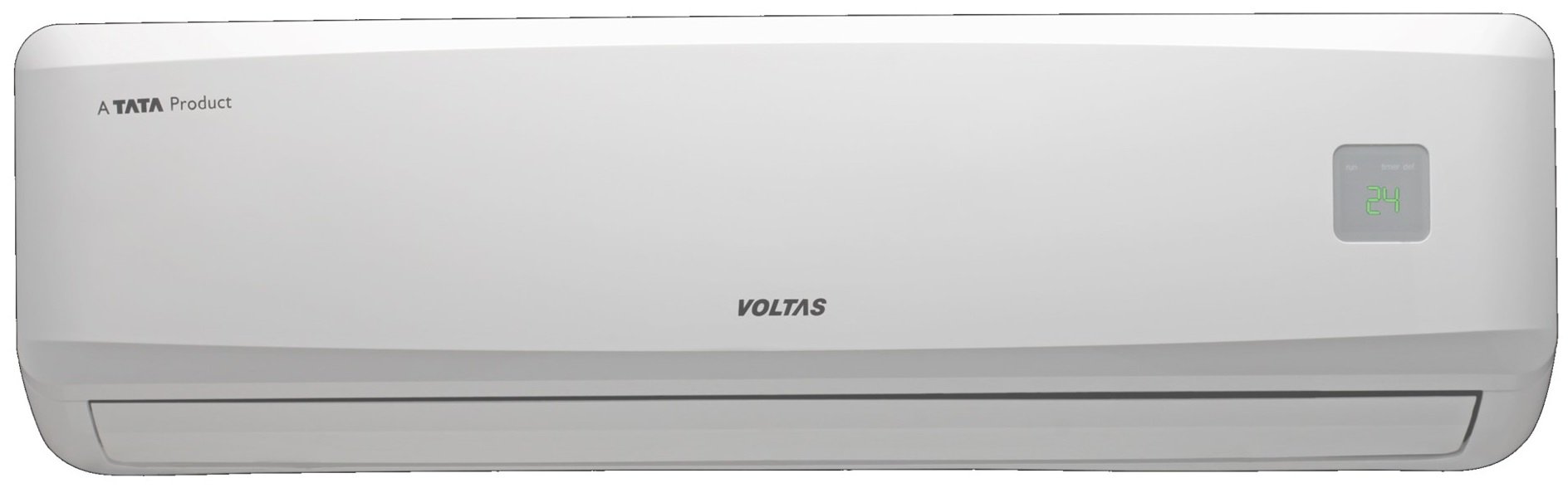

Image: Voltas 1 Ton 5 Star Split AC Indoor Unit.
Key Features
- Wide voltage range operation for stable performance.
- Steady cool compressor for consistent cooling.
- Super silent operation for a peaceful environment.
- 5 stage filtration advantage for cleaner air.
- Anti Bacterial Filter and Dehumidifier for improved air quality.
Included Components
- 1 Indoor Unit
- 1 Outdoor Unit
- Interconnecting Pipe
- 1 Remote Control
3. Setup & Installation
Installation of a split air conditioner requires specialized tools and knowledge. It is highly recommended to have the unit installed by a qualified and certified technician to ensure proper functioning, safety, and warranty validity.
General Installation Guidelines (for technicians)
- Indoor Unit Placement: Choose a location that allows for even air distribution, away from direct sunlight or heat sources. Ensure sufficient space around the unit for maintenance.
- Outdoor Unit Placement: Position the outdoor unit in a well-ventilated area, away from obstacles that could impede airflow. Ensure it is on a stable, level surface.
- Refrigerant Piping: Connect the indoor and outdoor units using the provided interconnecting pipe, ensuring proper insulation and leak-free connections.
- Electrical Connection: Connect the unit to a dedicated power supply circuit with appropriate voltage (230 Volts) and circuit breaker protection. Ensure all electrical connections are secure and comply with local regulations.
- Drainage: Install the drain hose with a downward slope to ensure proper condensation drainage.
4. Operating Instructions
Your Voltas AC is operated primarily via the included remote control. Familiarize yourself with the remote's functions for optimal use.
Remote Control Overview
The remote control allows you to power the unit on/off, select operating modes, adjust temperature, set fan speed, and activate special features. Ensure batteries are inserted correctly (Batteries not included).
Basic Operation
- Power On/Off: Press the ON/OFF button to start or stop the unit.
- Mode Selection: Press the MODE button to cycle through available modes: Cool, Fan, Dry.
- Temperature Adjustment: Use the TEMP UP (▲) and TEMP DOWN (▼) buttons to set your desired temperature.
- Fan Speed: Press the FAN button to adjust the fan speed (Auto, Low, Medium, High).
Special Features
- Anti Bacterial Filter: Helps to remove bacteria and allergens from the air.
- Dehumidifier: Reduces humidity in the room, providing a more comfortable environment.
5. Maintenance
Regular maintenance ensures optimal performance, energy efficiency, and longevity of your Voltas AC unit.
Air Filter Cleaning
- Turn off the AC unit and disconnect power.
- Open the front panel of the indoor unit.
- Remove the air filters.
- Clean the filters with a vacuum cleaner or wash them with lukewarm water and mild detergent.
- Allow filters to dry completely before reinserting them.
- Close the front panel and restore power.
Frequency: Clean filters every two weeks or more often if the unit is used frequently or in dusty environments.
Outdoor Unit Cleaning
- Ensure the outdoor unit is free from leaves, dust, and other debris.
- Periodically clean the coil fins with a soft brush or water spray (ensure power is off).
Seasonal Maintenance
Before the cooling season, it is advisable to have a qualified technician perform a comprehensive check of the refrigerant levels, electrical connections, and overall system performance.
6. Troubleshooting
Before contacting customer service, please refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| AC not turning on | No power supply; Remote control batteries dead. | Check circuit breaker; Replace remote batteries. |
| Insufficient cooling | Dirty air filters; Blocked outdoor unit; Room too large. | Clean air filters; Clear obstructions; Ensure room size matches capacity. |
| Unusual noise | Loose parts; Fan obstruction; Unit not level. | Check for loose components; Remove obstructions; Ensure unit is level. |
| Water leakage from indoor unit | Blocked drain pipe; Improper installation. | Clear drain pipe; Contact technician for inspection. |
7. Specifications
Detailed technical specifications for the Voltas 1 Ton 5 Star Split AC, model 1.0T VOLTAS SAC 125 DY.
| Feature | Specification |
|---|---|
| Brand | Voltas |
| Model | 1.0T VOLTAS SAC 125 DY |
| Energy Efficiency | 5 Star |
| Capacity | 1 Tons |
| Noise Level | 42 Decibels |
| Installation Type | Split System |
| Special Features | Anti Bacterial Filter, Dehumidifier |
| Colour | White |
| Control Console | Remote Control |
| Voltage | 230 Volts |
| Material | Plastic |
| Item Weight | 10 kg |
| Item Dimensions (LxWxH) | 20 x 90 x 27 Centimeters |
| Date First Available | 7 August 2017 |
8. Warranty & Support
Your Voltas 1 Ton 5 Star Split AC comes with a 1 Year Warranty Care from the date of purchase. This warranty covers manufacturing defects under normal use and service.
For warranty claims, technical assistance, or any service-related inquiries, please contact Voltas customer support. Ensure you have your product model number (1.0T VOLTAS SAC 125 DY) and proof of purchase readily available.
For the most up-to-date contact information, please visit the official Voltas website or refer to the documentation provided with your purchase.
