POWERFLEX PF-AZ01-Z003 Portable Bluetooth Speaker User Manual

Introduction

Thank you for purchasing the POWERFLEX PF-AZ01-Z003 Portable Bluetooth Speaker. This device is designed to provide high-quality audio playback and hands-free calling capabilities. Please read this manual carefully before using the speaker to ensure proper operation and to maximize its performance.

Image: The POWERFLEX PF-AZ01-Z003 Portable Bluetooth Speaker is shown from an angled perspective, highlighting its black finish, front grille, and the touch-sensitive control panel on its top surface, which features illuminated volume controls.

Package Contents

Please check the box for the following items:

• POWERFLEX PF-AZ01-Z003 Portable Bluetooth Speaker
• Micro USB Charging Cable
• AUX Cable
• User Manual

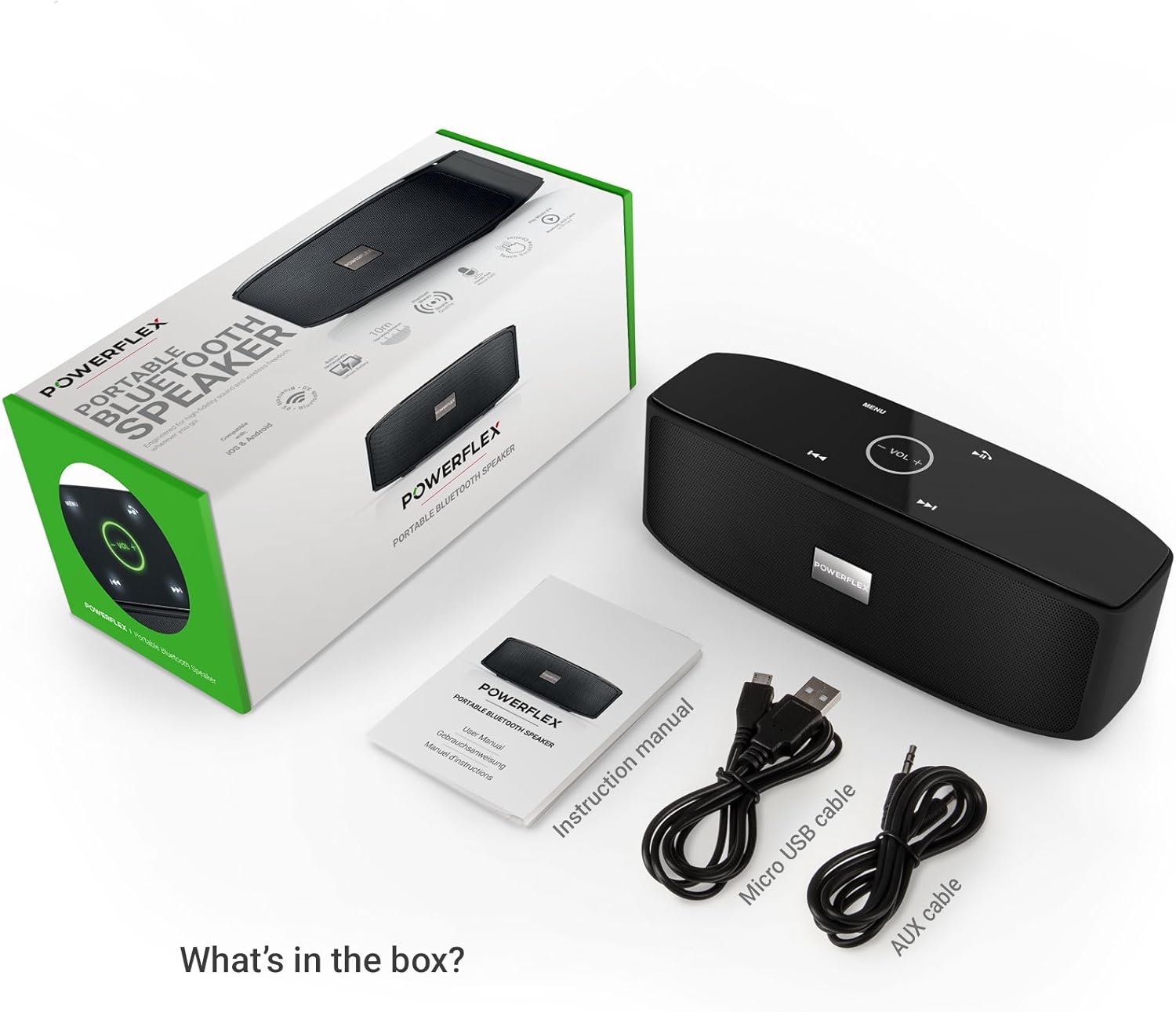

Image: This image displays the POWERFLEX PF-AZ01-Z003 Portable Bluetooth Speaker alongside its accessories: a Micro USB charging cable, an AUX cable, and the instruction manual. These are the items typically found inside the product packaging.

Features Overview

The POWERFLEX PF-AZ01-Z003 speaker offers several key features for an enhanced audio experience:

• Superior Audio: Equipped with dual five-watt drivers for clear highs, detailed mid-ranges, and deep bass.
• Bluetooth 3.0 Connectivity: Provides a stable wireless connection up to 10 meters (33 feet).
• Hands-Free Calling: Integrated microphone allows for clear phone calls.
• Multiple Playback Options: Supports Bluetooth, AUX input, and TF (MicroSD) card playback.
• Touch Controls: Intuitive touch-sensitive panel for easy music and call management.
• Portable Design: Compact build for easy transport.

Image: This image presents a cutaway view of the POWERFLEX PF-AZ01-Z003 speaker, revealing its internal components, specifically the dual five-watt drivers. The visual emphasizes the speaker's design for delivering vibrant highs, detailed mid-ranges, and deep bass for true stereo sound.

Image: This image showcases the POWERFLEX PF-AZ01-Z003 speaker positioned in front of a collection of diverse iOS and Android Bluetooth-enabled devices, including smartphones and tablets. The arrangement visually confirms the speaker's broad compatibility with various mobile operating systems.

Image: This image demonstrates the compact design of the POWERFLEX PF-AZ01-Z003 speaker, showing it being easily placed into a backpack. The accompanying text highlights its portability and specific dimensions (190 x 58 x 70mm), indicating it fits conveniently into bags.

Setup

1. Charging the Speaker

The speaker is powered by an internal 1800 mAh rechargeable battery. Before first use, fully charge the speaker.

1. Connect the Micro USB charging cable to the DC5V port on the speaker.
2. Connect the other end of the USB cable to a USB power adapter (not included) or a computer's USB port.
3. The charging indicator light will illuminate. Once fully charged, the light will change color or turn off (refer to LED indicator section in the full manual for details).

2. Powering On/Off

To power on the speaker, slide the ON/OFF switch to the 'ON' position. To power off, slide the switch to the 'OFF' position.

Image: This image provides a detailed view of the speaker's rear panel, highlighting the physical ON/OFF switch, the DC5V port for charging, the AUX input jack for wired connections, and the TF (MicroSD) card slot for direct media playback.

Operating Instructions

1. Bluetooth Pairing

1. Ensure the speaker is powered on and within 10 meters (33 feet) of your Bluetooth-enabled device.
2. The speaker will automatically enter Bluetooth pairing mode, indicated by a flashing LED light (refer to LED indicator section in the full manual).
3. On your device (smartphone, tablet, etc.), go to Bluetooth settings and search for available devices.
4. Select "PF-AZ01-Z003" from the list.
5. Once paired, the speaker will emit an audible confirmation, and the LED light will become solid.

Image: This image demonstrates the speaker's Bluetooth connectivity, showing a smartphone wirelessly streaming music to the POWERFLEX PF-AZ01-Z003. Blue concentric circles emanate from the phone towards the speaker, symbolizing the wireless connection, and text indicates playback from up to 10 meters.

2. Playing Music

Once connected via Bluetooth, you can play music from your device. The speaker also supports AUX cable and TF card playback.

• Bluetooth: Play music directly from your paired device.
• AUX Input: Connect an audio device using the provided 3.5mm AUX cable to the AUX port. The speaker will automatically switch to AUX mode.
• TF Card: Insert a TF (MicroSD) card with MP3 files into the TF card slot. The speaker will automatically begin playing music from the card.

3. Touch Controls

The speaker features touch-sensitive controls on its top panel for easy operation.

• Play/Pause: Tap the Play/Pause button (usually indicated by a triangle or two vertical bars).
• Volume Up/Down: Tap the '+' or '-' buttons to adjust the volume.
• Next Track: Tap the '>>|' button.
• Previous Track: Tap the '|<<' button.
• Mode/Menu: Tap the 'MENU' button to switch between input modes (Bluetooth, AUX, TF).

Image: This image shows a hand interacting with the touch-sensitive controls on the top surface of the POWERFLEX PF-AZ01-Z003 speaker. A finger is pressing the 'VOL +' button, which is illuminated in green, while a smartphone displaying music playback is visible in the foreground, emphasizing the ease of control.

4. Hands-Free Calling

The speaker includes a built-in microphone, allowing you to answer phone calls when connected via Bluetooth.

1. When a call comes in, the music will pause.
2. Tap the Play/Pause button to answer the call.
3. Speak into the speaker.
4. Tap the Play/Pause button again to end the call.

Image: This image depicts a smartphone displaying an incoming call, positioned next to the POWERFLEX PF-AZ01-Z003 speaker. The text "Make hands free calls with the built-in microphone" is prominently displayed, indicating the speaker's capability for hands-free communication.

Maintenance

To ensure the longevity and optimal performance of your POWERFLEX PF-AZ01-Z003 speaker, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the speaker's surface. Do not use abrasive cleaners, alcohol, or chemical solvents.
• Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures.
• Water Exposure: This speaker is not waterproof. Avoid exposing it to water or excessive moisture.
• Battery Care: To preserve battery life, avoid fully discharging the battery frequently. Charge the speaker regularly, even if not in use for extended periods.

Troubleshooting

If you encounter issues with your POWERFLEX PF-AZ01-Z003 speaker, refer to the following common problems and solutions:

Specifications

Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or contact POWERFLEX customer service. Keep your proof of purchase for warranty claims.

Manufacturer: POWERFLEX

Product ASIN: B074M8W712
