1. Introduction
Thank you for choosing the Valuxhome 72 Inches Electric Fireplace. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new electric fireplace. Please read all instructions carefully before installation and use, and retain this manual for future reference.
Important Safety Information
- Always disconnect power before performing any service or maintenance.
- Do not operate the fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater.
- This fireplace is designed for indoor use only.
- Ensure the power outlet is properly grounded.
2. Package Contents
Upon opening the package, please verify that all components are present and undamaged:
- Valuxhome 72 Inches Electric Fireplace Unit
- Remote Control (requires 2 AAA batteries, not included)
- Faux Fire Logs
- Crystals
- Mounting Screws and Hardware
- User Manual (this document)
Image: Included faux fire logs, crystals, and the remote control unit.
3. Installation Instructions
The Valuxhome 72 Inches Electric Fireplace is designed for in-wall recessed or flush-mounted installation. Both hard-wired and plugged options are supported.
Recessed Installation Steps:
- Prepare the Opening: Build a wall with a simple frame to accommodate the fireplace. Ensure the recessed dimensions are 67.6 inches (W) x 5.12 inches (D) x 20.28 inches (H).
- Move Existing Studs: If necessary, adjust wall studs to fit the fireplace unit.
- Position the Firebox: Carefully insert the firebox into the prepared opening.
- Secure the Unit: Use the hanger brackets located on both sides of the unit and the provided 6 screws to securely lock the firebox in place.
- Attach Front Glass Panel: Fix the front glass panel onto the firebox.
- Power Connection: Connect the 6-foot power cable to a 120V AC outlet. Ensure the connection is secure. Hard-wiring is also an option; consult a qualified electrician for this method.

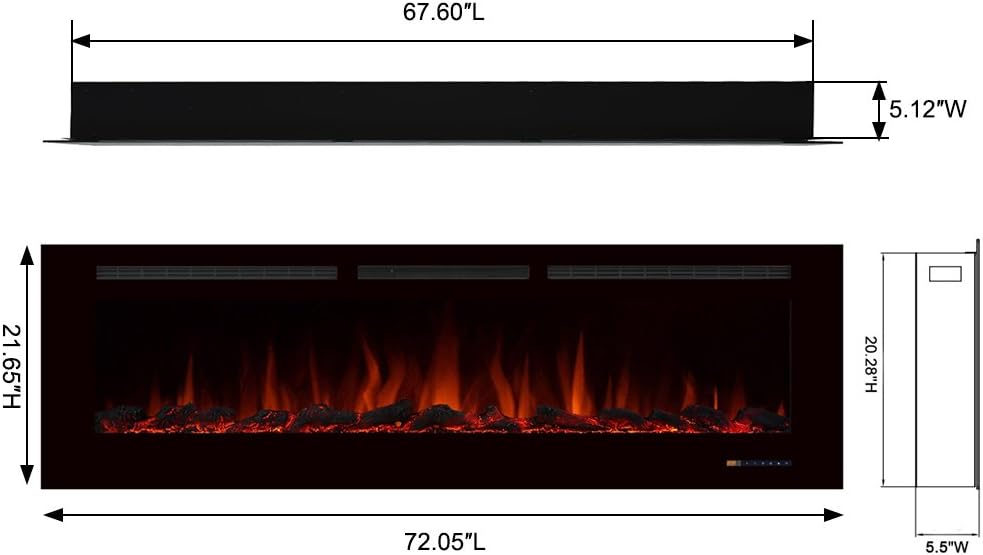

Image: Dimensional diagram for recessed installation, showing 72.05"L x 21.65"H overall and 67.60"L x 20.28"H recessed dimensions.
4. Operating Instructions
Your Valuxhome Electric Fireplace can be controlled via the touch screen panel on the unit or the included remote control. The remote control has an effective distance of up to 11.5 feet.
Features and Controls:
- Power ON/OFF: Turn the unit on or off.
- Flame Colors: Choose from 3 distinct flame colors to match your ambiance.
- Fuel Bed Colors: Select from 3 fuel bed colors to customize the appearance of the logs and crystals.
- Flame Brightness: Adjust the flame intensity with 5 variable brightness settings.
- Heat Settings: Operate with or without heat. When heat is desired, select between 750W and 1500W heating levels. The fan operates smoothly with low noise.
- Temperature Control: Set your desired room temperature from 62°F to 86°F.
- Timer Function: Utilize the built-in timer for automatic shut-off, settable from 1 hour to 9 hours.
Image: The electric fireplace showcasing its blue flame option with crystal media.
Video: Demonstration of the Valuxhome Electric Fireplace features, including flame colors, realistic resin logs, quiet front blower heater, touch screen control panel, and remote control functions.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your electric fireplace.
Cleaning:
- Glass Panel: Use a soft, damp cloth to clean the glass panel. Do not use abrasive cleaners or sprays directly on the glass.
- Vents: Periodically vacuum the air intake and outlet vents to prevent dust buildup, which can affect heating efficiency.
- Exterior: Wipe the exterior surfaces with a soft, dry cloth.
General Care:
- Ensure the fireplace is unplugged and cool before any cleaning or maintenance.
- Do not attempt to service or repair the unit yourself. Refer all servicing to qualified service personnel.
6. Troubleshooting
If you encounter issues with your electric fireplace, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to the unit | Power cord not plugged in; circuit breaker tripped; power switch off. | Ensure power cord is securely plugged in. Check your household circuit breaker. Turn the main power switch on. |
| No heat output | Heater function not activated; temperature setting too low; overheating protection activated. | Activate the heater function using the control panel or remote. Increase the temperature setting. If overheating protection is active, unplug the unit, wait 15 minutes, and plug it back in. |
| Flames not visible or flickering | Flame effect off; brightness set too low. | Ensure the flame effect is turned on. Increase the flame brightness setting. |
| Remote control not working | Batteries dead or incorrectly inserted; remote out of range; signal interference. | Replace batteries and ensure correct polarity. Move closer to the unit (within 11.5 ft). Minimize interference from other electronic devices. |
| Unit makes unusual noise | Fan obstruction; internal component issue. | Ensure vents are clear of obstructions. If noise persists, discontinue use and contact customer support. |
If the problem persists after attempting these solutions, please contact Valuxhome Customer Support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Valuxhome |
| Model Name | Electric Fireplace (VEF72) |
| Power Source | Electric |
| Product Dimensions | 5.5"D x 72.05"W x 21.65"H |
| Material | Tempered Glass, Metal |
| Finish Type | Glass |
| Installation Type | Wall Mount (Recessed) |
| Heat Output | 5120 British Thermal Units |
| Heating Coverage | Up to 400 square feet |
| Style | Recessed |
| Color | Black |
| Room Type | Living Room, Bedroom, Dining Room, Loft |
| Ventilation Type | Vent Free |
| Included Components | Manual, Remote, Screws, Faux Logs, Crystals |
| Orientation | Front-facing |
| Shape | Rectangular |
| Burner Type | Quartz |
| Item Weight | 95.5 pounds |
| UPC | 842880103309 |
8. Warranty Information
This Valuxhome Electric Fireplace comes with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or contact Valuxhome Customer Support.
9. Customer Support
For any questions, technical assistance, or warranty claims, please contact Valuxhome Customer Support. Please have your model number (VEF72) and purchase information ready when contacting support.
You may also find additional resources and contact information on the official Valuxhome website.
10. Additional Resources
For a downloadable PDF version of the user manual, please visit: Valuxhome 72 Inches Electric Fireplace User Manual (PDF)
