De'Longhi Replacement Heating Element Instruction Manual for BQ78, BQ80, and Happy Grill Series

1. Product Overview

This document provides instructions for the safe and effective installation, operation, and maintenance of your new De'Longhi replacement heating element. This element is designed to restore optimal performance to compatible De'Longhi electric grills.

1.1 Intended Use

The De'Longhi replacement heating element is specifically designed for use with compatible De'Longhi electric barbecue grills. It is intended to replace a worn or faulty original heating element to ensure proper grilling function. Do not use this product for any other purpose or with non-compatible appliances.

1.2 Safety Information

Always disconnect the grill from the power supply before attempting any installation, maintenance, or cleaning.
Ensure the grill is completely cool before handling any internal components.
Installation should only be performed by individuals with adequate technical understanding and experience in handling electrical components. If unsure, consult a qualified technician.
Handle the heating element carefully to avoid bending or damaging the coils.
Verify that the replacement element matches the specifications of your original element and grill model.
Keep children and pets away from the appliance during installation and operation.

2. Compatibility

This replacement heating element (Part Number: 5512600008) is compatible with the following De'Longhi electric grill models:

De'Longhi Grigliatutto Barby-Q BQ 78 (Article numbers: 0126178006, 0126178003, 0126178004)
De'Longhi BQ78.BK (Article numbers: 0126178011, 0126178010)
De'Longhi BQ78 (T) (Article number: 0126178008)
De'Longhi Rodeo BQ78 (T) (Article number: 0126178007)
De'Longhi BQ80.X (Article number: 0126178012)
De'Longhi Happy Grill HG 85 (Article number: 0126177000)
De'Longhi Happy Grill HG 66 (Article number: 0126166000)
De'Longhi Happy Grill HG 65 (Article number: 0126165000)
De'Longhi Happy Grill HG 75 (Article number: 0126175000)

If your specific model is not listed, please contact De'Longhi customer support for verification before purchase to ensure compatibility.

3. Specifications

Feature	Specification
Brand	De'Longhi
Model Name	BQ80 o BQ80.X (Part Number: 5512600008)
Material	Stainless Steel
Total Heating Power	2450 Watts (2.45 Kilowatts)
Voltage	230 Volts
Number of Heating Elements	2 (Dual Resistance)
Approximate Dimensions (LxWxH)	52 x 33 x 0.5 cm (20.5 x 13 x 0.2 inches)
Finish Type	Powder-coated

4. Installation Instructions

Replacing the heating element is a straightforward process, but requires careful attention to safety and proper connection. Refer to your specific grill model's user manual for detailed disassembly instructions if available.

4.1 Required Tools

Screwdriver (appropriate type for your grill's fasteners, e.g., Phillips, Torx)
Pliers (optional, for disconnecting terminals)
Camera or smartphone (for documenting wiring connections)

4.2 Step-by-Step Installation

Safety First: Ensure the grill is unplugged from the electrical outlet and has completely cooled down.
Access the Element: Carefully disassemble your grill to access the old heating element. This typically involves removing the grill grates, drip tray, and any protective covers. You may need to unscrew the plastic casing or base of the grill.
Document Connections: Before disconnecting any wires, take clear photos of how the old heating element is connected to the grill's electrical terminals. This will serve as a reference for connecting the new element.
Disconnect Old Element: Gently disconnect the electrical terminals from the old heating element. Note their positions.
Remove Old Element: Unscrew or unclip the old heating element from its mounting brackets. Carefully lift it out of the grill.
Insert New Element: Position the new De'Longhi heating element into the grill, ensuring it sits correctly in the mounting brackets. Secure it with screws or clips as per the original setup.
Connect Wiring: Using your photos as a guide, connect the electrical terminals to the new heating element. Ensure connections are secure and tight.
Reassemble Grill: Carefully reassemble the grill, ensuring all components are correctly seated and secured.
Initial Test: Plug the grill back into the power outlet. Turn it on to a low setting and observe if the element heats up evenly. If any issues arise, immediately unplug the grill and re-check connections.

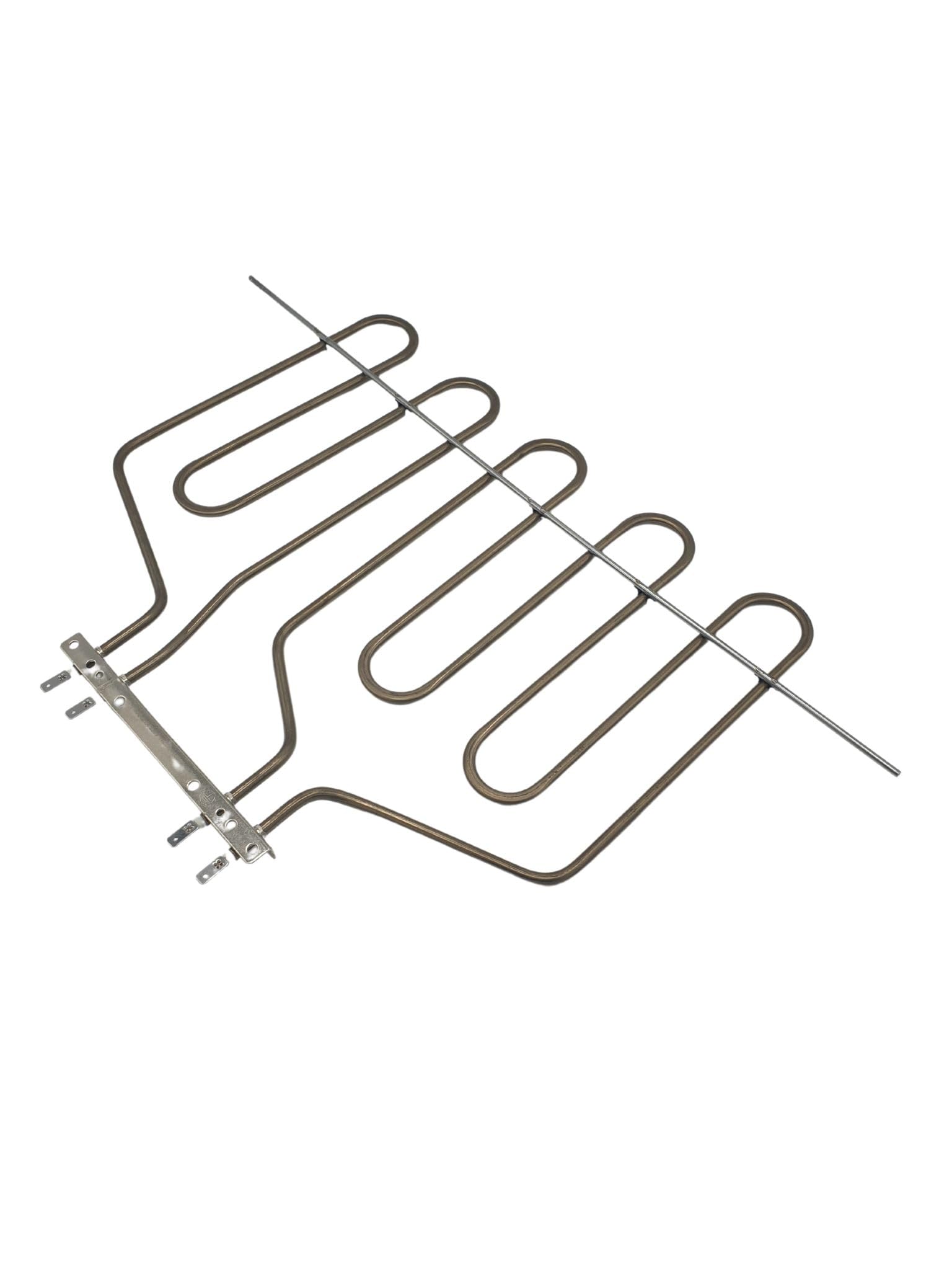

Image 1: De'Longhi Replacement Heating Element. This image shows the stainless steel heating coils and the electrical connection terminals at one end. The element features a dual resistance design for efficient heating.

5. Operation

Once the new heating element is installed, the operation of your De'Longhi electric grill will resume as per its original design. Refer to your grill's main user manual for specific cooking instructions and temperature settings.

Preheating: Allow the grill to preheat for 5-10 minutes (or as recommended by your grill's manual) to reach the desired cooking temperature.
Temperature Control: Use the grill's integrated temperature control knob to adjust the heat output of the element.
Even Cooking: The dual resistance design ensures even heat distribution across the grilling surface.

6. Maintenance

Proper maintenance of your grill and its heating element will extend its lifespan and ensure continued performance.

Cleaning: After each use, ensure the grill is unplugged and completely cool. Remove grill grates and drip trays for cleaning. Wipe down the heating element with a dry cloth to remove any food residue. Do not immerse the heating element in water or use abrasive cleaners.
Inspection: Periodically inspect the heating element for any signs of damage, corrosion, or loose connections. If any damage is observed, discontinue use and replace the element.
Storage: When not in use, store the grill in a dry, protected area to prevent moisture damage to electrical components.

7. Troubleshooting

If you encounter issues after installing the new heating element, refer to the following common troubleshooting steps:

Problem	Possible Cause	Solution
Element does not heat up.	Grill not plugged in. Loose electrical connections. Circuit breaker tripped. Faulty temperature control.	Ensure grill is securely plugged into a working outlet. Unplug, open grill, and check all wiring connections for tightness. Reset the circuit breaker. Consult a qualified technician or De'Longhi support if the control unit is suspected.
Uneven heating.	Element not seated correctly. Partial electrical fault.	Unplug, open grill, and ensure the element is properly mounted. Unplug and check all wiring connections. If the problem persists, the element may be faulty.
Grill trips circuit breaker.	Short circuit in wiring. Faulty element (rare for new).	Immediately unplug. Re-check all wiring for pinched wires or exposed conductors. If wiring is correct, the element may be defective. Contact seller for replacement.

For issues not covered here, or if problems persist, contact De'Longhi customer support or a qualified appliance technician.

8. Warranty and Support

This De'Longhi replacement heating element is covered by a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer.

Warranty Claims: Retain your proof of purchase for any warranty claims. Contact the retailer or De'Longhi customer service directly for assistance.
Customer Support: For technical assistance, troubleshooting, or to inquire about compatible models, please visit the official De'Longhi website or contact their customer support line in your region.
Online Resources: Additional information, FAQs, and product registration may be available on the official De'Longhi website.

De'Longhi BQ80, BQ80.X, 5512600008

De'Longhi Replacement Heating Element Instruction Manual
