1. Safety Information
Read and understand all safety warnings and instructions before using this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Eye Protection: Always wear appropriate eye protection (safety glasses or goggles) when operating a pressure washer.
- Hand Protection: Wear protective gloves to prevent injury from high-pressure spray or chemicals.
- High Pressure Hazard: The high-pressure stream can cause serious injury. Do not direct the spray at people, pets, or electrical devices.
- Secure Connections: Ensure all hoses, nozzles, and accessories are securely connected before starting the pressure washer.
- Operating Temperature: Do not exceed the maximum operating temperature specified for the gun handle.
- Chemicals: If using detergents or chemicals, ensure they are compatible with your pressure washer system and follow their specific safety instructions.
- Children and Pets: Keep children and pets away from the operating area.
2. Product Overview
The Karcher Easy!Force Pressure Washer Gun Handle (Model 8.756-481.0) is designed to provide an ergonomic and efficient solution for high-pressure cleaning tasks. This gun handle incorporates a unique mechanism that utilizes the recoil force of the water stream to assist in holding the trigger, aiming to reduce user fatigue during extended operation. It is built for durability and compatibility with various pressure washer systems.
Image 1: The Karcher Easy!Force Pressure Washer Gun Handle, showcasing its ergonomic design and yellow accents.
3. Setup
Follow these steps to properly set up your Karcher Easy!Force Pressure Washer Gun Handle:
- Unpacking: Carefully remove the gun handle from its packaging. Inspect for any visible damage.
- Connecting to Pressure Washer Hose (Inlet):
- Locate the 3/8" FPT inlet connection on the gun handle.
- Connect the high-pressure hose from your pressure washer to this inlet. Ensure the connection is tight and secure to prevent leaks. Hand-tighten first, then use a wrench if necessary, but do not overtighten.
- Connecting to Spray Wand/Nozzle (Outlet):
- Locate the 1/4" FPT outlet connection on the front of the gun handle.
- Attach your desired spray wand or nozzle to this outlet. Ensure it is securely fastened.
- Water Supply: Ensure your pressure washer unit is connected to a reliable water source and that the water supply is turned on.

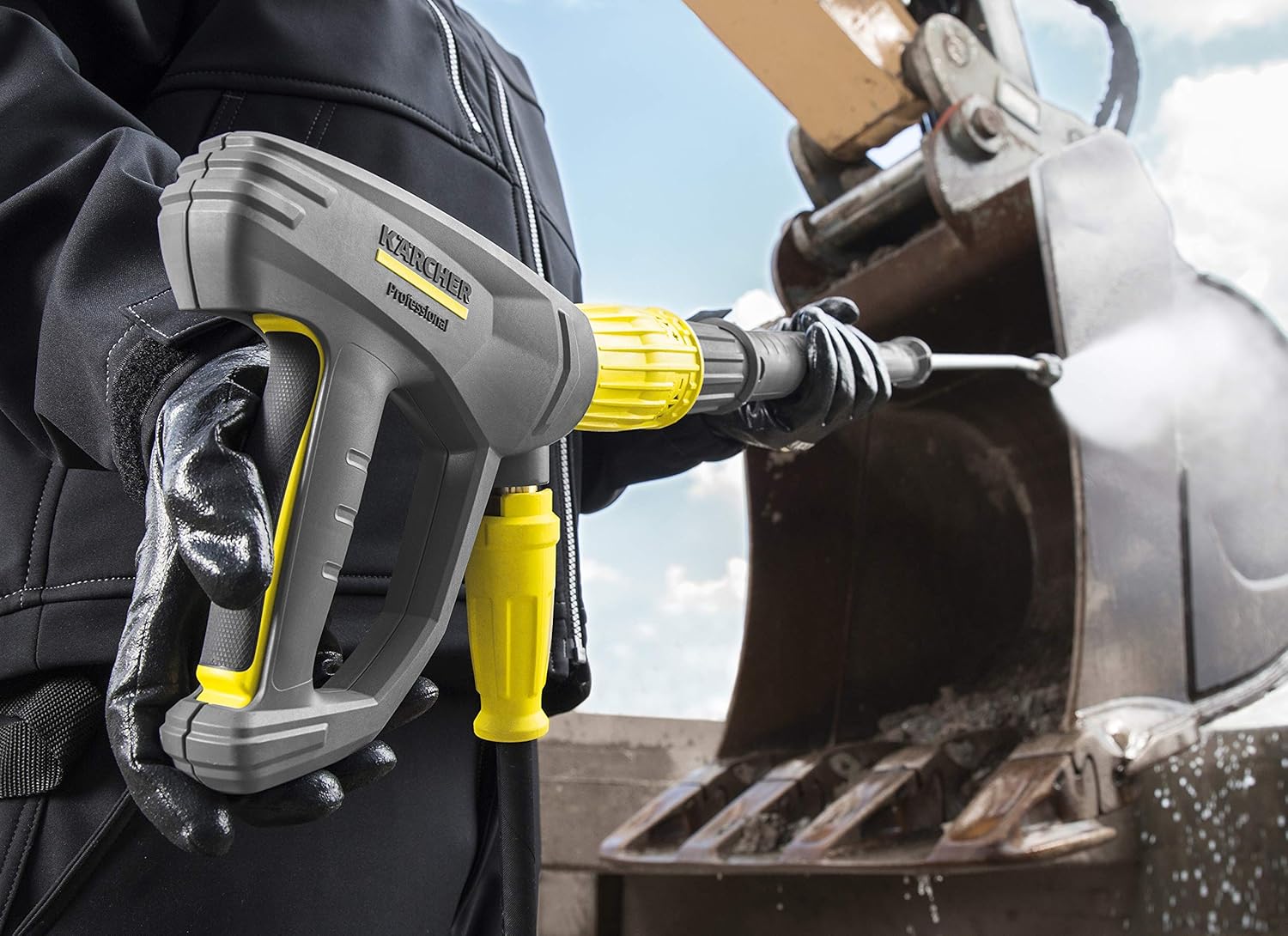

Image 2: A user demonstrating the Karcher Easy!Force Pressure Washer Gun Handle in operation, connected to a spray wand and hose.
4. Operating Instructions
Once the gun handle is properly set up, follow these steps for safe and effective operation:
- Before Starting: Double-check all connections for tightness. Ensure there are no kinks in the high-pressure hose.
- Starting the Pressure Washer: Turn on your pressure washer unit according to its manufacturer's instructions. Allow water to flow through the system to purge any air.
- Engaging the Trigger: Point the spray wand in a safe direction. Squeeze the trigger on the gun handle. The Easy!Force mechanism will engage, reducing the effort required to hold the trigger down during operation.
- Safety Lock: When not actively spraying, engage the safety lock on the trigger to prevent accidental discharge.
- Spraying Technique: Maintain a safe distance from the surface being cleaned. Use a consistent motion for even cleaning.
- Shutting Down: When finished, release the trigger and engage the safety lock. Turn off the pressure washer unit. Turn off the water supply. Squeeze the trigger briefly to release any remaining pressure in the system before disconnecting hoses.
Image 3: A close-up view of a user holding the Karcher Easy!Force Pressure Washer Gun Handle, highlighting the grip and trigger area.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your gun handle:
- Cleaning: After each use, wipe down the exterior of the gun handle with a damp cloth to remove dirt and debris.
- Inspect Connections: Periodically check all connections for wear, damage, or leaks. Replace worn O-rings or seals as needed.
- Filter Inspection: If your pressure washer system includes an inlet filter, ensure it is clean and free of obstructions.
- Storage: Store the gun handle in a clean, dry place, protected from freezing temperatures. Disconnect it from the pressure washer and hoses for storage.
- Winterization (if applicable): If storing in freezing conditions, ensure all water is drained from the gun handle and hoses to prevent damage from ice expansion.
6. Troubleshooting
If you encounter issues with your gun handle, refer to the following common problems and solutions:
- No Pressure or Low Pressure:
- Ensure the water supply is fully open.
- Check for kinks or blockages in the high-pressure hose.
- Verify that the nozzle is not clogged.
- Inspect the pressure washer unit itself for issues (refer to its manual).
- Leaks from Connections:
- Tighten all connections securely.
- Inspect O-rings and seals for wear or damage. Replace if necessary.
- Trigger Not Engaging or Sticking:
- Ensure the safety lock is disengaged.
- Check for any debris obstructing the trigger mechanism.
- If the issue persists, contact Karcher support.
7. Specifications
| Model Number | 8.756-481.0 |
| Brand | Karcher |
| Maximum Pressure | 4350 PSI |
| Maximum Flow Rate | 7.5 GPM (Gallons Per Minute) |
| Maximum Temperature | 311° F |
| Inlet Connection | 3/8" FPT |
| Outlet Connection | 1/4" FPT |
| Item Weight | 3.5 Pounds |
| Color | Yellow |
| Certifications | UL, OSHA |
8. Warranty Information
Specific warranty details for the Karcher Easy!Force Pressure Washer Gun Handle are typically provided by the manufacturer or the authorized seller at the time of purchase. Please refer to your purchase documentation or the official Karcher website for the most accurate and up-to-date warranty terms and conditions.
9. Support and Contact Information
For further assistance, technical support, or to inquire about replacement parts, please contact Karcher customer service or visit their official website:
- Karcher Official Website: Visit the Karcher Store on Amazon (This link directs to the Karcher store page, where you can find further contact information or product details.)
- Refer to your pressure washer unit's manual for specific compatibility questions or system-related support.
