1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Treadmill Motor Belt, Part Number 248650. This drive belt is a critical component designed to transmit power from the motor to the front roller of your treadmill, ensuring smooth and consistent operation. Please read this manual thoroughly before attempting any installation or maintenance procedures.

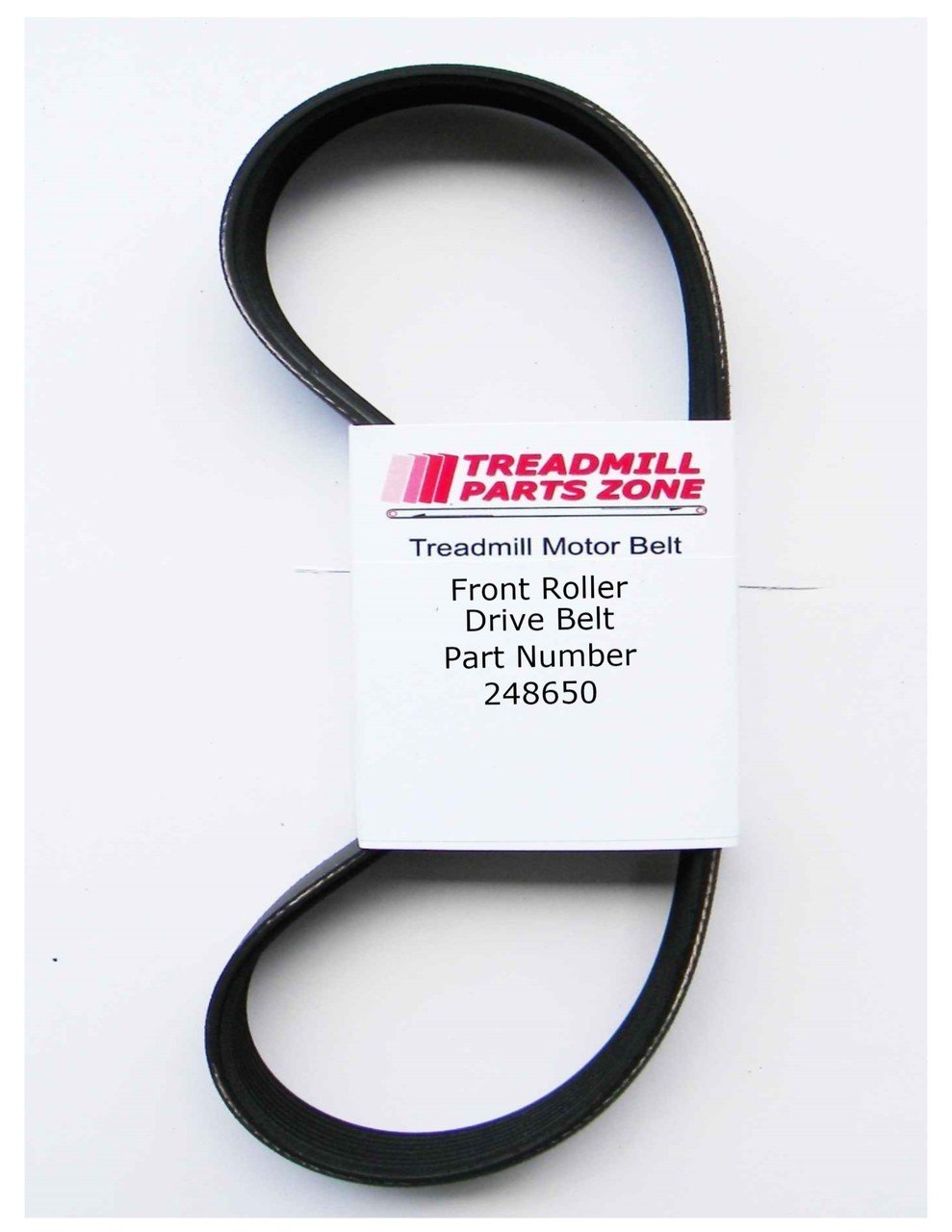

Figure 1: Treadmill Motor Belt, Part Number 248650. This image displays the Treadmill Motor Belt, Part Number 248650, coiled on a white background. A white label from 'Treadmill Parts Zone' is attached to the belt, indicating it is a 'Treadmill Motor Belt', 'Front Roller Drive Belt', and 'Part Number 248650'.
2. Compatible Models
The Treadmill Motor Belt Part Number 248650 is compatible with the following treadmill models:
- EPTL091060
- EPTL091062
- GGTL096050
- PATL407060
- PATL409060
- PATL409061
- PATL411060
- PATL411061
- PATL413060
- PATL413061
- PETL407060
- PETL407061
- PETL409060
- PETL409061
- PETL411060
- PETL411061
- PETL413060
- PETL413061
- PETL907070
- PFTL698060
- PFTL731053
- PFTL731055
3. Setup and Installation
Proper installation of the motor belt is crucial for the safe and efficient operation of your treadmill. If you are unsure about any step, it is recommended to consult a qualified technician.
Safety Precautions:
- Always unplug the treadmill from the power outlet before beginning any installation or maintenance.
- Wear appropriate safety gear, such as gloves, to protect your hands.
- Ensure the work area is well-lit and clear of obstructions.
Installation Steps (General Guide):
- Access the Motor Compartment: Locate and remove the motor cover of your treadmill. This usually involves unscrewing several fasteners.
- Identify the Old Belt: Observe how the existing motor belt is routed around the motor pulley and the front roller pulley.
- Remove the Old Belt: Carefully loosen any tensioning mechanisms (if present) and slide the old belt off the pulleys. Note its orientation.
- Install the New Belt: Route the new Part Number 248650 belt onto the pulleys in the same manner as the old belt. Ensure it is seated correctly in the grooves.
- Tension the Belt: If there was a tensioning mechanism, adjust it to achieve proper belt tension. The belt should be snug but not overly tight. Refer to your treadmill's specific user manual for exact tensioning instructions.
- Test Rotation: Manually rotate the front roller to ensure the belt moves smoothly without slipping or binding.
- Replace Cover: Securely reattach the motor cover.
4. Operation
After successful installation of the new motor belt, follow these steps to ensure proper operation:
- Plug In: Reconnect the treadmill to the power outlet.
- Initial Test: Start the treadmill at a very low speed (e.g., 1 mph) without anyone on it. Observe the belt for any unusual noises, slipping, or erratic movement.
- Gradual Increase: If the initial test is successful, gradually increase the speed to ensure the belt maintains smooth operation across the entire speed range.
- Regular Use: The treadmill is now ready for regular use. Pay attention to any changes in performance or sound that might indicate an issue with the belt or other components.
5. Maintenance
Regular maintenance extends the life of your motor belt and ensures optimal treadmill performance.
- Inspection: Periodically inspect the motor belt for signs of wear, such as cracks, fraying, or glazing. Check for proper tension; a loose belt can slip, while an overly tight belt can cause premature wear on bearings.
- Cleaning: Keep the motor compartment and the belt free from dust and debris. Use a dry cloth or a soft brush to gently clean the belt surface and pulleys. Avoid using harsh chemicals or lubricants on the belt unless specifically recommended by the treadmill manufacturer.
- Alignment: Ensure the belt remains properly aligned on the pulleys. Misalignment can lead to uneven wear and reduced efficiency.
- Replacement: Replace the belt if significant wear or damage is observed, or if it no longer maintains proper tension despite adjustments.
6. Troubleshooting
Here are some common issues related to treadmill motor belts and potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Treadmill belt slipping or hesitating | Loose motor belt; Worn belt; Overload | Adjust belt tension; Replace belt; Reduce load on treadmill |
| Unusual noise from motor area | Worn belt; Misaligned belt; Debris in motor compartment | Inspect and replace belt if worn; Check belt alignment; Clean motor compartment |
| Motor running but walking belt not moving | Broken or completely detached motor belt | Replace motor belt |
If these troubleshooting steps do not resolve the issue, or if you are unsure about performing any repairs, please contact a qualified service technician.
7. Specifications
Key specifications for the Treadmill Motor Belt Part Number 248650:
- Part Number: 248650
- Brand: TreadmillPartsZone
- Material: Rubber
- Color: Black
- Compatible Devices: Treadmill
- Manufacturer: Treadmillpartszone
- Date First Available: July 18, 2017
8. Warranty and Support
For information regarding the warranty of your Treadmill Motor Belt Part Number 248650, please refer to the original purchase documentation or contact TreadmillPartsZone directly. Warranty terms and conditions may vary.
For technical support, installation assistance, or any other inquiries, please visit the official TreadmillPartsZone website or contact their customer service department. Always provide the part number (248650) and your purchase details when seeking support.
