Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your ALC AWF23 SightHD 1080p Full HD Pan and Tilt Indoor Wi-Fi Camera. Designed for indoor surveillance, this camera offers remote monitoring, two-way audio, and motion detection capabilities, all accessible through the ALC SightHD mobile application.
What's in the Box
- One (1) ALC AWF23 SightHD 1080p Full HD Pan and Tilt Indoor Wi-Fi Camera
- Wall mount kit
- AC power adapter
- Power extension cable
- Quick Start Guide
Image: The ALC AWF23 SightHD camera, a white dome-shaped device with a black camera lens, shown from the front angle.
Product Overview
The ALC AWF23 SightHD camera offers a range of features for effective indoor surveillance:
- 1080p Full HD Video: Provides clear, high-definition video streaming and recording (1920 x 1080 resolution).
- Remote Pan and Tilt: Control the camera's viewing angle horizontally (270°) and vertically (100°) via the ALC SightHD app.
- Two-Way Audio: Listen to audio from the camera's location and speak through the camera's built-in speaker using your smartphone.
- Night Vision: Equipped with 5 surface-mounted, high-power infrared LEDs for clear monitoring up to 35 feet in low-light or complete darkness.
- Motion Detection: Receive instant email alerts and push notifications when motion is detected.
- Local Storage: Supports microSD card recording up to 128 GB (card sold separately).
- Cloud Storage Integration: Option to automatically upload video clips from the camera to your personal Google Drive or Dropbox account.

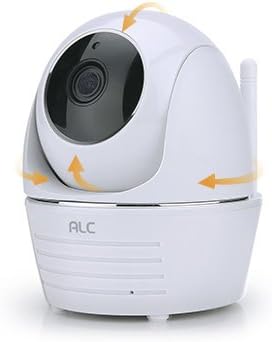

Image: The ALC AWF23 SightHD camera with orange arrows indicating its pan and tilt movement capabilities.
Setup
1. Download the ALC SightHD App
Search for "ALC SightHD" on the Apple App Store or Google Play Store and install it on your smartphone or tablet. This app is essential for controlling and monitoring your camera.
2. Power On the Camera
Connect the AC power adapter to the camera and plug it into a power outlet. The camera will power on and perform a self-test. Wait for the status indicator light to show it is ready for pairing (refer to the app for specific light indications during setup).
3. Connect to Wi-Fi
Open the ALC SightHD app and follow the on-screen instructions to add your new camera. This typically involves scanning a QR code on the camera or manually entering details, then connecting the camera to your home Wi-Fi network. Ensure your Wi-Fi network is 2.4GHz, as 5GHz networks are not supported.
4. Mounting the Camera (Optional)
If desired, use the included wall mount kit to secure the camera to a wall or ceiling. Ensure the camera is positioned to cover the desired surveillance area. Follow the instructions provided with the wall mount kit for proper installation.
Image: The ALC AWF23 SightHD camera positioned next to a smartphone screen showing the ALC SightHD application interface.
Operating Your Camera
Remote Pan and Tilt Control
Within the ALC SightHD app, use the directional controls to remotely adjust the camera's horizontal (pan) and vertical (tilt) viewing angles. You can also set preset vantage points for quick access to specific areas.
Two-Way Audio
To listen to audio from the camera's location, tap the speaker icon in the app's live view. To speak through the camera's built-in speaker, press and hold the microphone icon and speak into your smartphone's microphone. Release the icon to stop speaking.
Motion Detection and Alerts
Configure motion detection sensitivity and alert preferences (email, push notifications) within the app settings. When motion is detected, the camera will record and send alerts according to your settings. You can also define specific motion detection zones.
Night Vision
The camera automatically switches to night vision mode in low-light conditions. The infrared LEDs provide illumination for clear black and white video up to 35 feet, ensuring surveillance even in total darkness.
Video Recording and Storage
Insert a microSD card (up to 128 GB, sold separately) into the camera's slot for local recording. Configure recording settings (continuous, motion-triggered) via the app. You can also link your Google Drive or Dropbox account in the app settings to automatically upload recorded video clips to cloud storage.
Image: A graphic illustrating key features of the ALC AWF23 SightHD camera, including 1080p Full HD, pan & tilt, two-way audio, night vision, and motion detection.
Maintenance
- Cleaning: Gently wipe the camera lens and exterior with a soft, dry cloth. Do not use liquid cleaners, solvents, or abrasive materials, as these can damage the camera.
- Software Updates: Periodically check the ALC SightHD app for firmware updates for your camera. Keeping the firmware updated ensures optimal performance, security, and access to new features.
- Power Cycle: If the camera experiences unexpected issues or becomes unresponsive, try unplugging it from the power source for 10 seconds and then plugging it back in. This can resolve minor software glitches.
Troubleshooting
- Camera Not Powering On:
- Ensure the AC power adapter is securely connected to the camera and a working power outlet.
- Verify the power outlet is functional by plugging in another device.
- Unable to Connect to Wi-Fi:
- Confirm your Wi-Fi network is 2.4GHz. The camera does not support 5GHz networks.
- Ensure the camera is within effective range of your Wi-Fi router.
- Double-check your Wi-Fi password for accuracy.
- Try restarting your Wi-Fi router and the camera.
- Poor Video Quality:
- Check your internet connection speed. A stable and fast connection is required for optimal 1080p streaming.
- Ensure the camera lens is clean and free from obstructions.
- Motion Detection Not Working or Too Sensitive:
- Adjust the motion detection sensitivity settings within the ALC SightHD app.
- Ensure the camera's field of view is clear of objects that might cause false alerts (e.g., moving curtains, tree branches).
- Two-Way Audio Issues:
- Ensure your smartphone's microphone and speaker are working correctly.
- Check the volume settings on your smartphone and within the app.
- Verify a stable internet connection for both the camera and your smartphone.
Specifications
| Feature | Detail |
|---|---|
| Model Number | AWF23 |
| Indoor/Outdoor Usage | Indoor |
| Video Capture Resolution | 1080p (1920 x 1080) |
| Pan Range | 270° |
| Tilt Range | 100° |
| Night Vision Range | Up to 35 feet |
| Connectivity Protocol | Wi-Fi (2.4GHz only) |
| Power Source | AC/DC |
| Wattage | 5 watts |
| Compatible Devices | Smartphone, Tablet |
| Control Method | App (ALC SightHD) |
| Storage | MicroSD card (up to 128 GB, not included) |
| Two-Way Audio | Yes |
| Motion Detection | Yes |
| Dimensions (L x W x H) | 4 x 3 x 4.6 inches |
| Item Weight | 2.05 pounds |
| Color | White |
Warranty Information
For detailed warranty information regarding your ALC AWF23 SightHD camera, please refer to the warranty card included with your product or visit the official ALC website. Warranty terms and conditions may vary by region and purchase date. Please retain your proof of purchase for warranty claims.
Support
If you encounter any issues or require further assistance with your ALC AWF23 SightHD camera, please visit the ALC support website or contact their customer service department. Contact information can typically be found in the Quick Start Guide or on the official ALC website. Online resources often include FAQs, troubleshooting guides, and software downloads.
