EZCAP USB 3.0 HDMI Video Capture Card (Model ezcap287) Instruction Manual

1. Introduction

The EZCAP USB 3.0 HDMI Video Capture Card is designed to capture full HD 1080p video and audio at 60 frames per second. This device allows you to record or stream high-definition video sources, such as game consoles, cameras, or set-top boxes, directly to your computer. It features a plug-and-play UVC (USB Video Class) operation, eliminating the need for driver installation on compatible Windows, Mac, and Linux systems. It supports various third-party software for capturing and live streaming.

2. Package Contents

Verify that all items are present in your package:

• 1 x EZCAP USB 3.0 HDMI Video Capture Card (Model ezcap287)
• 1 x USB 3.0 Cable
• 1 x User Manual

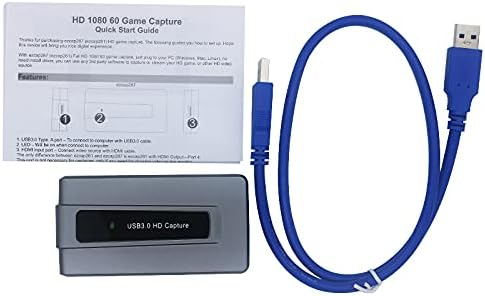

Figure 2.1: Package contents including the capture card, USB 3.0 cable, and manual.

3. Product Overview

The EZCAP USB 3.0 HDMI Video Capture Card is a compact device designed for ease of use. It features an HDMI input port for connecting your video source and a USB 3.0 output port for connecting to your computer.

Figure 3.1: Top view of the EZCAP USB 3.0 HDMI Video Capture Card, showing the 'ezcap' logo and 'USB3.0 HD Capture' text.

Figure 3.2: Front view of the capture card, highlighting the HDMI input port.

Figure 3.3: Rear view of the capture card, showing the USB 3.0 output port and ventilation slots.

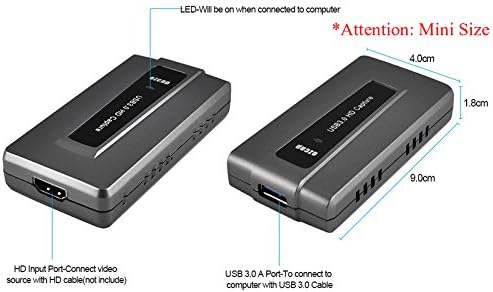

Figure 3.4: Diagram illustrating the compact dimensions of the capture card: approximately 9.0 cm (length) x 4.0 cm (width) x 1.8 cm (height).

4. Setup

Follow these steps to connect your EZCAP USB 3.0 HDMI Video Capture Card:

1. Connect Video Source: Use an HDMI cable (not included) to connect your video source (e.g., game console, camera, set-top box) to the HDMI Input port on the capture card.
2. Connect to Computer: Use the provided USB 3.0 cable to connect the USB 3.0 A-Port on the capture card to a powered USB 3.0 port on your computer.
3. Power Indicator: The LED indicator on the capture card will illuminate when successfully connected to the computer.

Figure 4.1: Connection diagram showing how to connect a camera, video conference device, game console (Xbox, PS3/PS4), or set-top box via HDMI to the capture card, which then connects to a desktop or notebook computer via USB.

5. Operating Instructions

The EZCAP USB 3.0 HDMI Video Capture Card operates as a UVC device, meaning no specific drivers are required for most operating systems. You will need third-party software to capture or stream video.

5.1. Software Compatibility

This device is compatible with a wide range of video capture and streaming software. Some commonly used applications include:

• OBS Studio (Windows, OS X, Linux)
• Windows Media Encoder (Windows)
• Adobe Flash Media Live Encoder (Windows, OS X)
• VLC (Windows, OS X, Linux)
• Wirecast (Windows, OS X)
• vMix (Windows)
• Potplayer (Windows)
• QuickTime Broadcaster / Player (OS X)

The device also supports development interfaces such as DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux), and QuickTime (OS X).

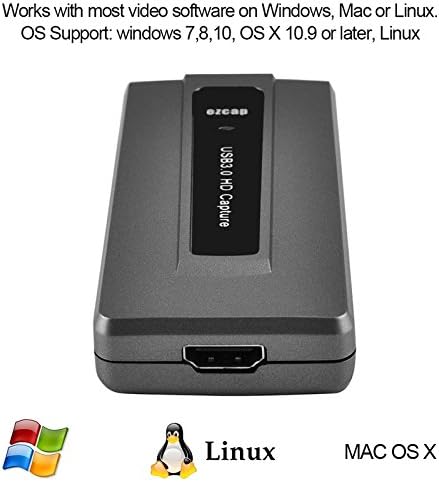

Figure 5.1: The capture card is compatible with Windows (7, 8, 10), Mac OS X 10.9 or later, and Linux systems.

5.2. Recording and Streaming

Once connected and recognized by your chosen software, you can configure the software to capture or stream the HDMI input. The device supports recording quality up to 1080p at 60 frames per second.

For live streaming, the device can be used with platforms such as Twitch, YouTube, DailyMotion, and Hitbox.

Figure 5.2: The capture card supports Full HD 1080p video capture and streaming via its SuperSpeed USB 3.0 interface.

6. System Requirements

To ensure optimal performance, your computer system should meet the following minimum requirements:

• Operating System: Windows 7, 8, 10; OS X 10.9 or later; Linux
• Processor (PC): Intel Core i5-3400 or higher
• Graphics Card (PC): NVIDIA GT630 or equivalent
• Processor (Notebook): Intel Core i7-3537U 2.0 GHz or higher
• Graphics Card (Notebook): NVIDIA GT735 or equivalent
• Processor (Mac): i5 quad-core or above
• Graphics Card (Mac): VGA card supporting DirectX 10
• RAM: 4GB or more
• USB Port: Powered USB 3.0 port with Intel chipset (e.g., Renesas, Fresco host controller)
• Sound Card: Required for audio processing

7. Specifications

8. Troubleshooting

If you encounter issues with your EZCAP USB 3.0 HDMI Video Capture Card, consider the following:

• No Signal: Ensure all HDMI and USB 3.0 cables are securely connected. Verify that your video source is powered on and outputting a signal. Check the input settings within your capture software.
• No Audio: Confirm that the audio output from your HDMI source is enabled and not muted. Check audio input settings in your capture software.
• Poor Performance/Lag: Ensure your computer meets the minimum system requirements, especially for processor, RAM, and USB 3.0 port. Try using a different USB 3.0 port. Close unnecessary applications running in the background.
• Software Not Detecting Device: Verify that your operating system recognizes the device (it should appear as a UVC device). Try restarting your computer and capture software. Ensure your capture software is up-to-date.
• LED Indicator Not On: Confirm the USB 3.0 cable is properly connected to a powered USB 3.0 port on your computer.

9. Maintenance

The EZCAP USB 3.0 HDMI Video Capture Card requires minimal maintenance. Keep the device clean and free from dust. Avoid exposing it to extreme temperatures, humidity, or direct sunlight. Do not attempt to disassemble the device, as this will void any potential warranty.

10. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Details regarding warranty periods and support channels are typically available on the manufacturer's official website or through your retailer.
