1. Introduction
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your SOBO LED-3800FP LED Fountain Submersible Pump. Please read this manual thoroughly before use and retain it for future reference. This pump is designed for creating fountain effects in aquariums, ponds, and waterfall setups, featuring integrated LED lighting for enhanced aesthetics.
2. Safety Instructions
To ensure safe operation and prevent damage, observe the following precautions:
- Always disconnect from the electrical socket before handling or performing any maintenance on the pump.
- Do not lift the pump unit by its power cord.
- Do not operate the pump out of water; it must be fully submerged during operation.
- Do not run the pump dry, as this can cause severe damage to the motor.
- Ensure the power socket is positioned at a higher level than the pump to prevent water backflow via the wire to the socket outlet.
3. Package Contents
Upon unpacking, ensure all items are present and undamaged. The package should typically contain:
- SOBO LED-3800FP Submersible Pump Unit
- Fountain Nozzle Attachments
- LED Lighting Ring
- Power Cord

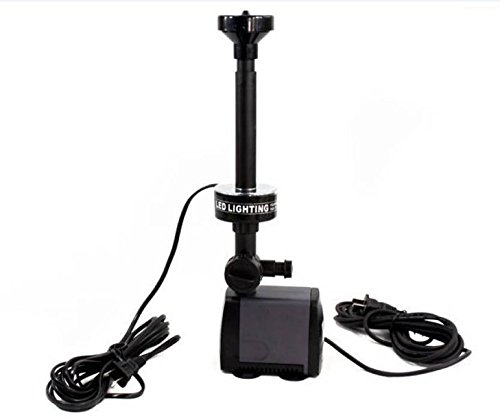

Image 3.1: Components of the SOBO LED-3800FP pump, including the main unit, fountain attachments, and power cords.
4. Product Overview
The SOBO LED-3800FP is a high-performance submersible pump designed for use in marine and freshwater aquariums, ponds, and waterfall setups. Its compact design ensures quiet operation while delivering strong water flow. The pump features a durable ceramic shaft for longevity and is fully sealed with a plastic injection cover for enhanced safety. Integrated LED lights provide an aesthetic touch to your water feature.
Key Features:
- Slimmer design for high performance and quiet operation.
- Durable ceramic shaft suitable for both marine and freshwater environments.
- Fully sealed plastic injection cover for added safety.
- Integrated bright, interchanging LED lights for decorative purposes.
- Adjustable flow control lever.

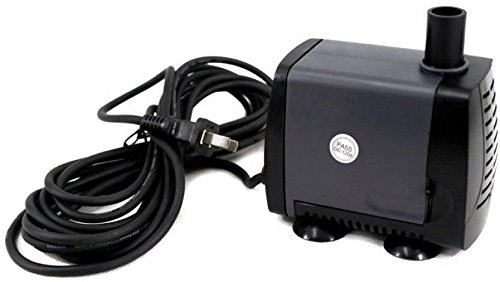

Image 4.1: The SOBO LED-3800FP pump unit, showing its compact design and power cord.

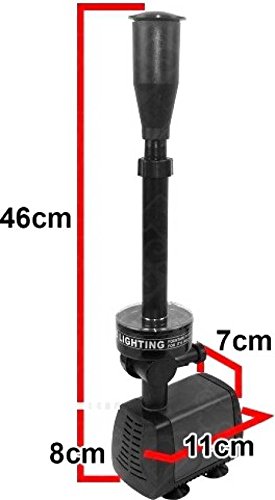

Image 4.2: Dimensional view of the SOBO LED-3800FP pump and its assembled fountain components, indicating key measurements.
5. Setup
Follow these steps for proper installation of your submersible pump:
- Placement: Ensure the pump is placed on a stable, level surface within the water body (aquarium, pond, or waterfall basin). The pump must be fully submerged during operation to prevent overheating and damage.
- Fountain Attachment: Connect the desired fountain nozzle attachment to the pump's outlet. Ensure a secure fit to prevent leaks and ensure proper water flow.
- LED Lighting (Optional): If using the LED lighting ring, position it around the fountain attachment as desired.
- Power Cord Routing: Route the power cord safely, ensuring it is not kinked or pinched. The electrical socket must be positioned at a higher level than the pump to prevent water from flowing back into the socket.
- Final Check: Before plugging in, double-check that all connections are secure and the pump is fully submerged.
6. Operation
Operating your SOBO LED-3800FP pump is straightforward:
- Power On: Once the pump is correctly installed and fully submerged, plug the power cord into a suitable electrical outlet. The pump will begin operating, creating a fountain effect, and the LED lights will illuminate.
- Adjusting Flow: To adjust the water flow, locate the flow control lever on the pump unit. Move the lever to increase or decrease the water output as desired.
- Power Off: To turn off the pump, simply unplug it from the electrical outlet.
7. Maintenance
Regular cleaning is essential to maintain optimal performance and extend the lifespan of your pump. A clogged or dirty intake screen will reduce the pump's efficiency and flow rate.
Cleaning Procedure:
- Disconnect Power: Always disconnect the pump from the electrical socket before any handling or maintenance.
- Disassemble: Carefully remove the front cover and then the impeller cover.
- Remove Impeller: Gently remove the impeller unit from its housing.
- Clean Components: Clean the impeller and the cylinder housing thoroughly with a small brush or under running water to remove any debris, algae, or mineral buildup. Pay close attention to the intake screen.
- Reassemble: Reassemble the pump by reversing the disassembly steps, ensuring all parts are securely in place.
8. Troubleshooting
If you encounter issues with your pump, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump Not Operating |
|
|
| Low Water Flow |
|
|
| Excessive Noise |
|
|
| LED Lights Not Working |
|
|
9. Specifications
Technical specifications for the SOBO LED-3800FP Submersible Pump:
| Feature | Specification |
|---|---|
| Brand | SOBO |
| Model | LED-3800FP |
| Material | Plastic |
| Style | Submersible Pump |
| Power Source | Corded Electric |
| Voltage | AC 220-240V |
| Frequency | 50/60Hz |
| Power Consumption | 40W |
| Maximum Head (H.max) | 2 meters |
| Maximum Flow Rate (Flow max) | 2000 Liters Per Hour |
| Product Dimensions (L x W x H) | 11L x 7W x 54H Centimeters |
| Unit Count | 1 Count |
| Country of Publication | China |
10. Warranty Information
This product typically comes with a standard manufacturer's warranty. For specific warranty terms and conditions, including duration and coverage, please refer to the product packaging or contact your retailer directly. An optional 1-year extended warranty may be available from third-party providers at the time of purchase.
11. Customer Support
For technical assistance, inquiries about spare parts, or to process a warranty claim, please contact your retailer or the SOBO customer service department. When contacting support, please have your purchase receipt and the product model number (LED-3800FP) readily available to expedite the process.
