DaVinci Full Size Bed Conversion Kit (M1999) Instruction Manual

1. Product Overview

The DaVinci Full Size Bed Conversion Kit (M1999) is designed to transform your compatible DaVinci crib and changer combo into a full-size bed. This kit provides the necessary wooden rails to extend the life and utility of your nursery furniture as your child grows.

2. Safety Information

WARNING: Please read all instructions before assembly and use of the conversion kit. Keep these instructions for future reference.

• Ensure all components are securely fastened before use. Periodically check all bolts and screws to ensure they are tight.
• Do not use this conversion kit if any parts are missing, damaged, or broken. Contact DaVinci for replacement parts.
• This product is intended for use with compatible DaVinci crib models only. Refer to the "Compatible Crib Models" section.
• Keep small parts away from children during assembly.
• The wood is finished in a non-toxic multi-step painting process, lead and phthalate safe.
• Maximum weight recommendation for the converted bed is 500 pounds.

3. Included Components

Your DaVinci Full Size Bed Conversion Kit (M1999) includes the following:

• DaVinci Piedmont Pine Wood Full Size Bed Conversion Kit in White (consisting of bed rails and necessary hardware).

Note: Full-size bed mattress and box spring are sold separately and are required for the complete bed setup.

4. Setup and Installation

This conversion kit is designed for straightforward installation. While no complex assembly of the kit itself is required, it integrates with your existing crib structure.

4.1. Compatible Crib Models

This conversion kit is compatible with the following DaVinci crib model:

• Piedmont Crib and Changer Combo (M1991)

Ensure your crib model matches the compatibility list before proceeding with installation.

4.2. Installation Steps

Before beginning, ensure you have cleared enough space for the conversion and have the necessary tools (typically a Phillips head screwdriver and/or Allen wrench, though specific tools may vary based on your crib's original assembly hardware).

1. Disassemble Crib: Carefully disassemble the front and back panels of your compatible DaVinci crib, following the original crib's instruction manual for removal of these components. Retain any hardware that connects the side rails to the headboard and footboard, as some may be reused.
2. Attach Conversion Rails: Align the new full-size bed conversion rails to the existing headboard and footboard of your crib. The rails are designed to connect where the crib's side rails previously attached. Secure the conversion rails to the headboard and footboard using the provided hardware or the appropriate hardware from your original crib assembly. Ensure all connections are tight and secure.
3. Install Mattress Support: Once the bed frame is assembled, place your full-size box spring and mattress onto the frame. Ensure they fit snugly within the frame and are properly supported.
4. Final Check: Double-check all connections for tightness and stability. Gently shake the bed frame to ensure it is sturdy and does not wobble.

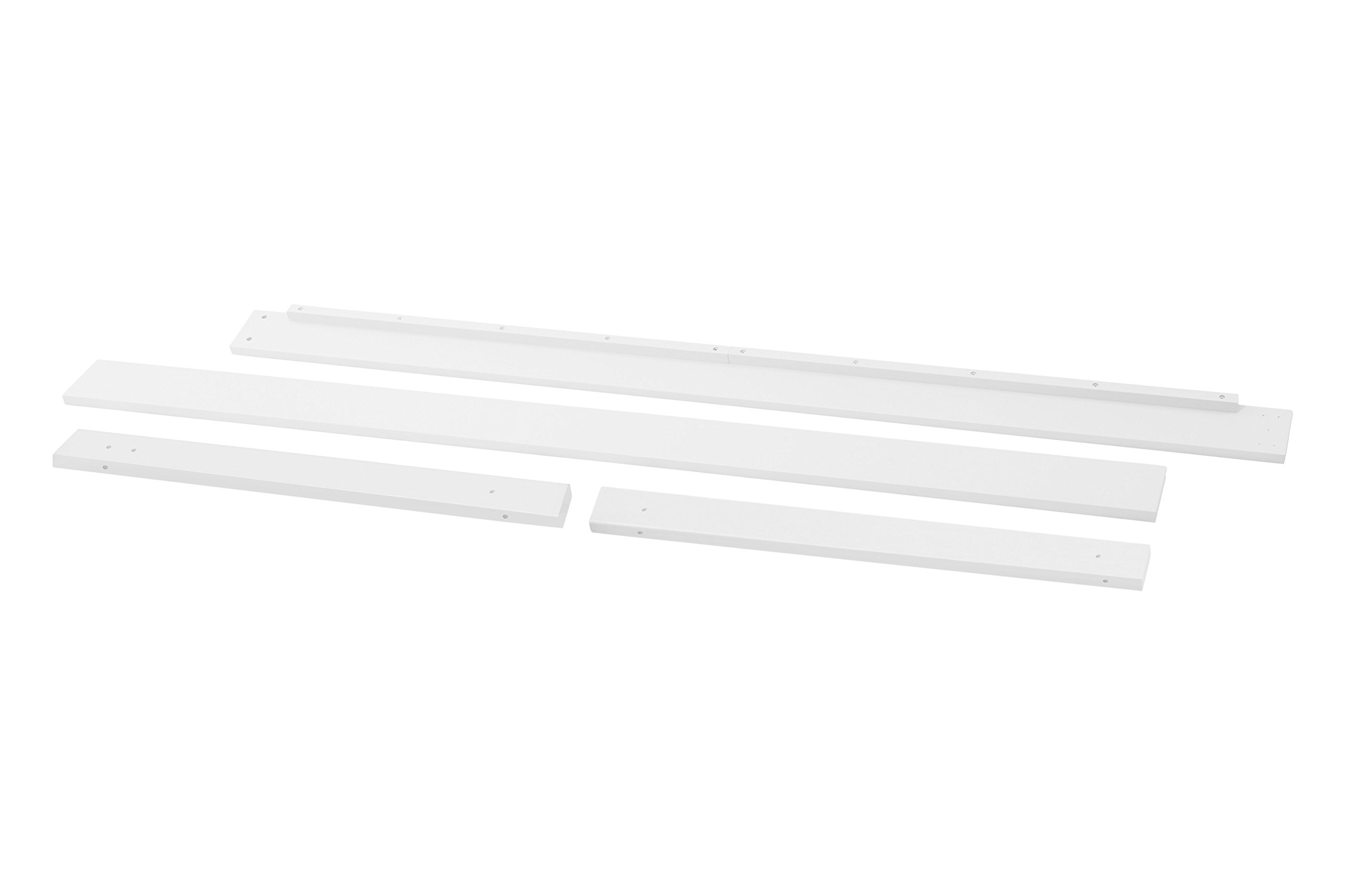

Image: Components of the DaVinci Full Size Bed Conversion Kit. This image displays the main wooden rails and support pieces included in the kit, laid out on a white background.

5. Operating and Usage

Once assembled, the converted full-size bed functions as a standard bed. Ensure the mattress and box spring are correctly positioned and that the bed is placed on a level surface. Regular use does not require special operating procedures beyond standard bed care.

6. Maintenance and Care

To ensure the longevity and safety of your DaVinci Full Size Bed Conversion Kit, follow these maintenance guidelines:

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or strong chemicals, as they may damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) check all bolts, screws, and fasteners to ensure they remain tight. Tighten any loose hardware to maintain stability and safety.
• Environmental Conditions: Avoid exposing the bed to extreme temperature changes or high humidity, which can cause wood to warp or crack.
• Damage: If any part of the conversion kit becomes damaged, cracked, or broken, discontinue use immediately and contact DaVinci for replacement parts. Do not attempt to repair damaged components yourself.

7. Troubleshooting

If you encounter issues with your DaVinci Full Size Bed Conversion Kit, consider the following:

• Bed Wobbles/Unstable:
  • Ensure all connection bolts and screws are fully tightened.
  • Verify that the bed is placed on a level surface.
  • Confirm that the conversion rails are correctly attached to both the headboard and footboard.
• Parts Don't Fit:
  • Double-check that your crib model is listed as compatible (Piedmont Crib and Changer Combo M1991).
  • Ensure you are using the correct hardware for each connection point.
  • Contact customer support if parts still do not fit after verifying compatibility and hardware.
• Missing Hardware:
  • Carefully check all packaging materials.
  • Contact DaVinci customer support for replacement hardware.

8. Specifications

9. Warranty Information

The DaVinci Full Size Bed Conversion Kit (M1999) includes a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, alteration, improper assembly, or normal wear and tear.

Please retain your proof of purchase for warranty claims.

10. Customer Support

For assistance with assembly, missing parts, or warranty claims, please contact DaVinci customer support. You can typically find contact information on the manufacturer's website or through the retailer where the product was purchased.

For more information, visit the official DaVinci website: www.davincibaby.com
