Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Voltas 1.0 Ton 123 LY R410A 3S Split Air Conditioner. Please read this manual thoroughly before using the appliance and keep it for future reference.
Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This includes:
- Ensure the power supply matches the rating label on the unit.
- Do not operate the AC with wet hands.
- Do not insert objects into the air outlet.
- Keep children away from the unit.
- Disconnect power before cleaning or servicing.
- Only qualified personnel should install or repair the unit.
Product Overview
The Voltas 1.0 Ton 123 LY R410A 3S Split AC consists of an indoor unit, an outdoor unit, and a remote control. It is designed for efficient cooling of indoor spaces.

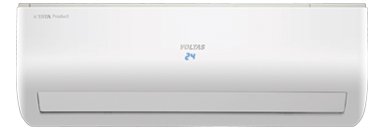

Image: Voltas 1.0 Ton Split AC Indoor Unit. This image shows the compact design of the indoor unit, typically mounted on a wall.
Remote Control
The unit is operated via a remote control, allowing adjustment of temperature, mode, fan speed, and other functions from a distance.
Setup and Installation
Installation of this split air conditioner requires professional expertise. Do not attempt to install the unit yourself. Contact an authorized Voltas service technician for proper installation.
Pre-Installation Checks
- Ensure the installation site is structurally sound to support the unit's weight.
- Verify adequate space for air circulation around both indoor and outdoor units.
- Confirm proper electrical wiring and grounding are available.
Connecting Power
After professional installation, connect the unit to a dedicated power outlet. Ensure the power supply is stable and meets the specifications outlined in the 'Specifications' section.
Operating Instructions
This section details how to use your Voltas AC with the remote control.
Turning On/Off
Press the ON/OFF button on the remote control to power the unit on or off.
Selecting Operating Mode
Press the MODE button to cycle through available modes:
- COOL: For cooling the room.
- FAN: Circulates air without cooling.
- DRY: Reduces humidity.
- AUTO: Automatically selects mode based on room temperature.
Adjusting Temperature
Use the TEMP UP (▲) and TEMP DOWN (▼) buttons to set your desired temperature. The typical operating range is 16°C to 30°C.
Fan Speed Control
Press the FAN SPEED button to select between Low, Medium, High, or Auto fan speeds.
Timer Function
The timer function allows you to set a specific time for the AC to turn on or off. Refer to the remote control's specific instructions for detailed timer setup.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air conditioner. Always disconnect power before performing any maintenance.
Cleaning the Air Filter
- Open the front panel of the indoor unit.
- Remove the air filters.
- Clean the filters with a vacuum cleaner or wash them with lukewarm water and mild detergent.
- Allow filters to dry completely before reinserting them.
- Close the front panel.
Frequency: Clean air filters every two weeks or more frequently if the unit is used heavily or in dusty environments.
Cleaning the Outdoor Unit
Periodically check the outdoor unit for obstructions like leaves, dust, or debris. Gently clean the coils with a soft brush or vacuum. Do not use strong chemicals or high-pressure water, as this can damage the fins.
Professional Servicing
It is recommended to have your AC professionally serviced at least once a year by an authorized Voltas technician. This includes checking refrigerant levels, electrical connections, and overall system performance.
Troubleshooting
Before contacting customer service, refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| AC does not turn on. | No power supply; Remote control batteries dead; Circuit breaker tripped. | Check power connection; Replace remote batteries; Reset circuit breaker. |
| Insufficient cooling. | Dirty air filter; Blocked outdoor unit; Incorrect mode setting; Room too large. | Clean air filter; Clear obstructions; Select COOL mode; Ensure room size is appropriate for 1.0 Ton AC. |
| Unusual noise. | Loose parts; Obstruction in fan; Unit not level. | Check for loose screws; Remove obstructions; Ensure unit is level. If noise persists, contact service. |
| Water leakage from indoor unit. | Blocked drain pipe; Unit not level; High humidity. | Clear drain pipe; Ensure unit is level; This may be normal in very humid conditions, but persistent leakage requires service. |
If the problem persists after attempting these solutions, please contact Voltas customer support.
Specifications
The following are key specifications for the Voltas 1.0 Ton 123 LY R410A 3S Split AC:
- Brand: Voltas
- Model: 123 LY R410A 3S
- Capacity: 1.0 Ton
- Refrigerant: R410A
- Energy Efficiency: 3 Star Rating (as implied by "3S" in model name, and "High Efficiency" in specs)
- Noise Level (Indoor Unit): Approximately 56 Decibels
- Control: Remote Controlled
- Installation Type: Split System
- Color: White
- ASIN: B0734WJNDW
Warranty and Support
For warranty information, please refer to the warranty card provided with your product at the time of purchase. Keep your purchase receipt as proof of purchase.
Customer Support
For technical assistance, service requests, or any queries regarding your Voltas AC, please contact Voltas customer support. Contact details can typically be found on the Voltas official website or on your warranty card.
You can visit the official Voltas store for more information: Voltas Store on Amazon
