OEMTOOLS 20561 20-Inch Universal Heavy Duty Lug Nut Wrench Instruction Manual

1. Product Overview

The OEMTOOLS 20561 20-Inch 4-Way Lug Nut Wrench is an essential tool designed for efficient and reliable tire maintenance. This heavy-duty cross wrench is engineered to provide superior leverage for loosening and tightening lug nuts on most passenger vehicles.

Its robust construction and universal socket sizes make it a versatile addition to any vehicle's emergency repair kit. The wrench features a durable heat-treated carbon steel build, a rugged center weld, and a powder-coated finish for enhanced longevity and rust resistance.

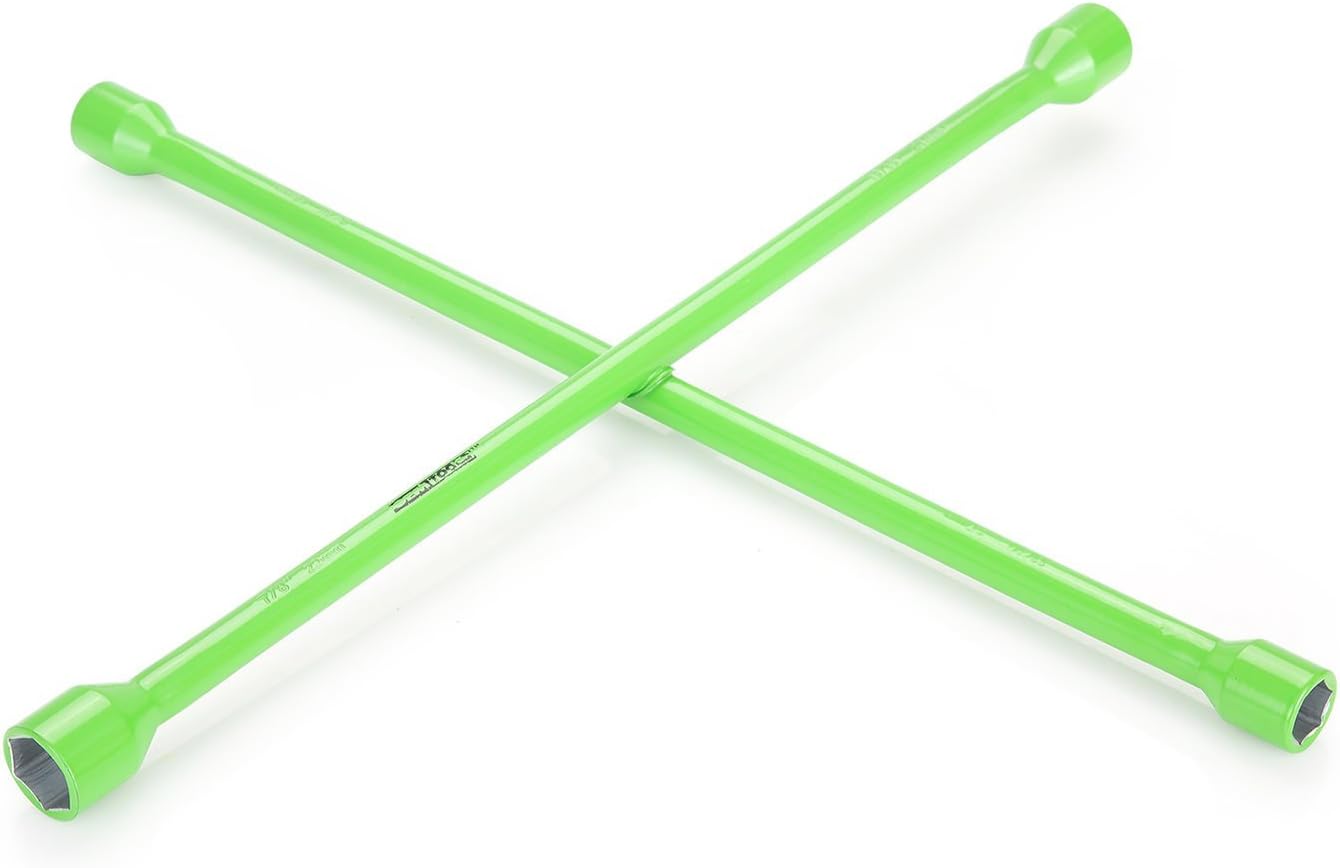

Image: The OEMTOOLS 20561 20-Inch Universal Heavy Duty Lug Nut Wrench, showcasing its classic cross-welded design and vibrant green finish.

2. Key Features

• Universal Applications: Equipped with four (4) common socket sizes to fit both SAE and Metric lug nuts: 11/16” (17mm), ¾” (19mm), 13/16” (21mm), and 7/8” (22mm).
• Increased Leverage: The 20-inch length provides significantly more leverage compared to standard 14-inch universal lug wrenches, facilitating easier lug nut removal.
• Prevents Lug Nut Damage: 6-point sockets are designed to grip the flats of lug bolts, minimizing the risk of rounding off lug nut edges, especially on older or stubborn nuts.
• Optimal Efficiency: The welded cross design allows for two-handed operation, enabling increased torque and faster loosening or tightening of lug nuts.
• Durable Construction: Manufactured from heat-treated carbon steel for superior strength and longevity. Features a Hi-Vis green powder coating for enhanced rust resistance.

Image: The OEMTOOLS 20561 Lug Wrench illustrating its 20-inch length and the four universal socket sizes: 11/16" (17mm), 3/4" (19mm), 13/16" (21mm), and 7/8" (22mm).

3. Setup and Preparation

The OEMTOOLS 20561 Lug Nut Wrench requires no assembly. It is ready for immediate use upon removal from its packaging.

Before Use:

1. Identify Lug Nut Size: Determine the correct size of your vehicle's lug nuts. The wrench provides four common sizes: 11/16” (17mm), ¾” (19mm), 13/16” (21mm), and 7/8” (22mm). Select the socket that fits snugly over the lug nut.
2. Vehicle Stability: Ensure the vehicle is on a flat, stable surface and the parking brake is engaged. If changing a tire, refer to your vehicle's owner's manual for proper jacking procedures and safety precautions.
3. Safety Gear: It is recommended to wear appropriate safety gloves to protect your hands during operation.

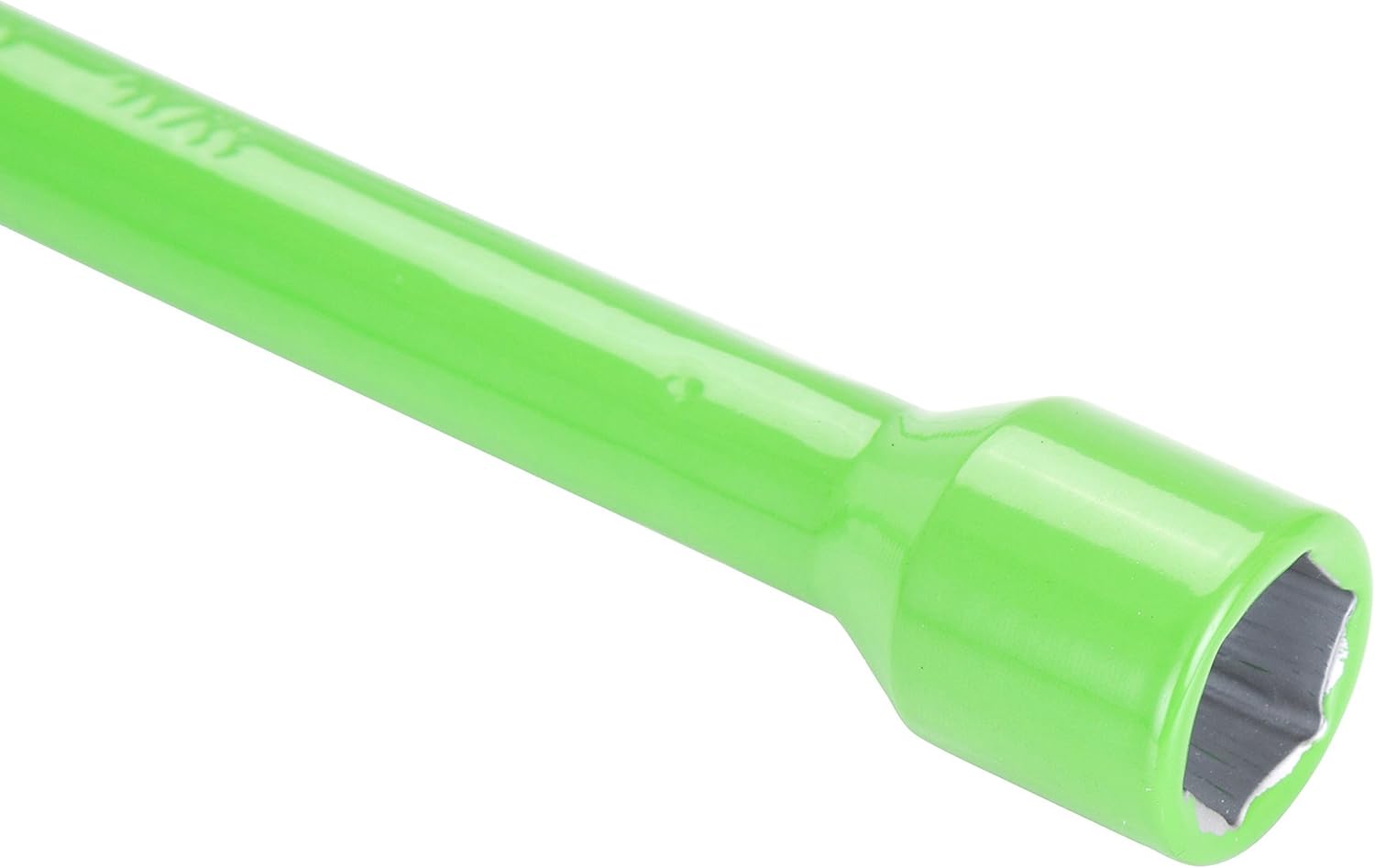

Image: A close-up view of one of the 6-point sockets on the OEMTOOLS 20561 Lug Wrench, highlighting its robust construction designed for secure grip.

4. Operating Instructions

To Loosen Lug Nuts:

1. Position the correct size socket of the lug wrench onto a lug nut.
2. Grip the opposing arm of the wrench firmly with both hands.
3. Apply steady, counter-clockwise pressure to loosen the lug nut. The 20-inch length provides ample leverage. For extremely tight nuts, you may need to apply more force or use your foot on the opposing arm, ensuring stable footing and balance.
4. Once the lug nut breaks loose, continue to turn it counter-clockwise until it can be removed by hand.
5. Repeat for all remaining lug nuts.

To Tighten Lug Nuts:

1. Hand-tighten each lug nut onto its stud.
2. Position the correct size socket of the lug wrench onto a lug nut.
3. Grip the opposing arm of the wrench firmly with both hands.
4. Apply steady, clockwise pressure to tighten the lug nut.
5. Tighten lug nuts in a star pattern (e.g., for a 5-lug wheel, tighten the top, then bottom-right, then top-left, then bottom-left, then top-right) to ensure even seating of the wheel.
6. It is highly recommended to use a torque wrench to tighten lug nuts to the manufacturer's specified torque settings after initial tightening with the OEMTOOLS lug wrench. This ensures proper and safe wheel attachment.

5. Maintenance

Proper maintenance will extend the life of your OEMTOOLS 20561 Lug Nut Wrench.

• Cleaning: After each use, wipe down the wrench with a clean cloth to remove any dirt, grease, or debris.
• Storage: Store the wrench in a dry place to prevent rust. The powder-coated finish provides good rust resistance, but prolonged exposure to moisture should be avoided.
• Inspection: Periodically inspect the wrench for any signs of damage, such as bends, cracks, or excessive wear on the sockets. Do not use a damaged wrench.

6. Troubleshooting

Problem: Lug nuts are too tight to loosen.

Solution:

• Ensure you are turning the wrench counter-clockwise.
• Apply more steady, firm pressure. The 20-inch length is designed for maximum leverage.
• If safe to do so, and with extreme caution, you may briefly stand on the opposing arm of the wrench to apply additional weight, ensuring you maintain balance and stability.
• Consider applying a penetrating oil to the lug nuts and allowing it to soak for a few minutes before attempting to loosen them again.

Problem: Socket does not fit the lug nut.

Solution:

• Verify you are using the correct size socket (11/16” (17mm), ¾” (19mm), 13/16” (21mm), or 7/8” (22mm)).
• Ensure the lug nut is clean and free of debris that might obstruct the socket.
• If your vehicle uses a different size lug nut, this wrench may not be compatible. Consult your vehicle's owner's manual for specific lug nut sizes.

7. Specifications

8. What's in the Box

The OEMTOOLS 20561 package includes:

• One (1) OEMTOOLS 20561 20-Inch Universal Heavy Duty Lug Nut 4-Way Cross Wrench.

Image: The OEMTOOLS 20561 Lug Wrench as it appears in its retail packaging, ready for use.

9. Important Safety Information

Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Always exercise caution when working with tools and vehicles. Ensure the vehicle is properly supported and stable before attempting any tire or wheel work. Do not over-tighten lug nuts without a torque wrench, as this can damage studs or wheels.

10. Warranty and Support

For information regarding warranty coverage, product support, or to purchase replacement parts, please visit the official OEMTOOLS website or contact their customer service department.
