Xootz Large Wheeled Scooter Instruction Manual

Product Overview

The Xootz Large Wheeled Scooter is designed for outdoor fun and exploration. It features a foldable design with adjustable handlebars, making it convenient for transport and suitable for growing children. Constructed with durable materials, this scooter provides a comfortable and exhilarating riding experience.

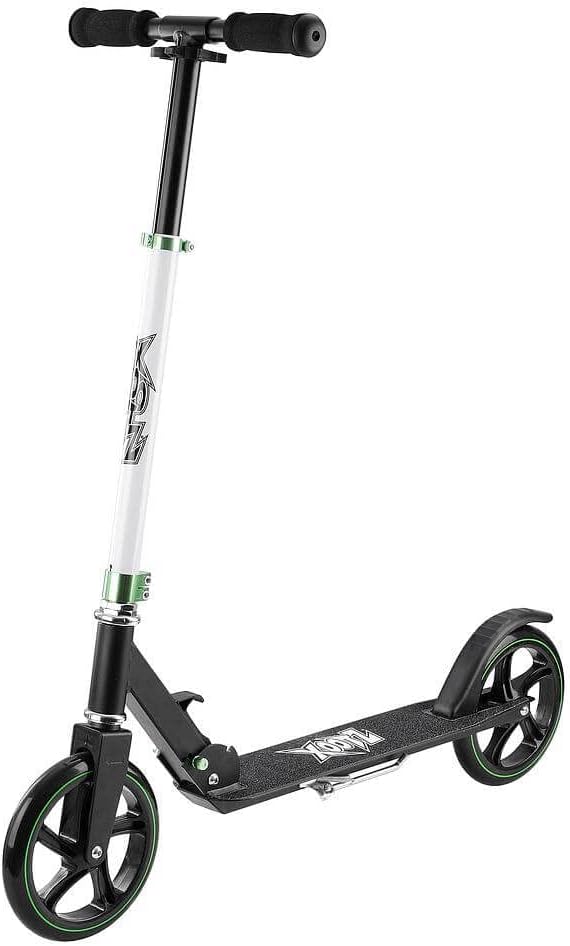

Image: The Xootz Large Wheeled Scooter, showcasing its gunmetal finish, black deck, and large wheels. This image provides a full view of the assembled scooter.

Important Safety Information

• This product is not appropriate for children under the age of 6.
• Always wear appropriate safety gear, including a helmet, knee pads, and elbow pads, when operating the scooter.
• Ensure all clamps, bolts, and quick-release mechanisms are securely fastened before each use.
• Ride on smooth, paved surfaces away from traffic. Avoid riding on wet, uneven, or slippery surfaces.
• Do not exceed the maximum rider weight of 100 kg.
• Adult supervision is recommended for younger riders.
• Familiarize yourself with local laws and regulations regarding scooter use.

Setup and Assembly

The Xootz Large Wheeled Scooter comes largely pre-assembled. Follow these steps for initial setup:

1. Unfolding the Scooter:

   Locate the quick-lock folding mechanism near the base of the handlebar stem. Release the latch and carefully unfold the scooter until the handlebar stem locks securely into the upright position. Ensure it clicks into place and is stable before use.
2. Adjusting Handlebar Height:

   Press the quick-release button or open the clamp on the handlebar stem. Adjust the handlebar to a comfortable height, typically around hip level for the rider. Ensure the handlebar is securely locked at the desired height before riding. There are multiple height settings available.

3. Initial Inspection:

   Before the first ride, and before every subsequent ride, check all bolts, screws, and quick-release levers to ensure they are tight and secure. Verify that the wheels spin freely and the brake functions correctly.

Operating Instructions

Operating your Xootz scooter is straightforward. Follow these guidelines for a safe and enjoyable ride:

• Riding Stance: Place one foot firmly on the deck of the scooter. Use the other foot to push off the ground to gain momentum. Once moving, place both feet on the deck, one behind the other, or side-by-side if comfortable.
• Steering: Lean gently in the direction you wish to turn. The handlebars provide additional control for steering.
• Braking: The scooter is equipped with a rear braking system. To slow down or stop, gently press down on the rear fender brake with your foot. Apply gradual pressure to avoid sudden stops.
• Folding for Storage/Transport: To fold the scooter, release the quick-lock folding mechanism and carefully collapse the handlebar stem towards the deck. Ensure it is fully folded and secured for easy carrying or storage.

Image: A close-up view of the scooter's deck, featuring the Xootz logo and a person's feet demonstrating proper foot placement during operation. This highlights the grip tape surface.

Maintenance

Regular maintenance will extend the life of your Xootz scooter and ensure safe operation:

• Cleaning: Wipe down the scooter with a damp cloth after use to remove dirt and debris. Avoid using harsh chemicals or abrasive cleaners.
• Wheel and Bearing Check: Periodically inspect the 200 mm PU cast wheels for wear and tear. Check the ABEC five bearings for smooth rotation. If wheels or bearings are worn, they should be replaced by a qualified technician.
• Tightening Components: Regularly check and tighten all bolts, nuts, and quick-release mechanisms, especially the front wheel assembly, as these can loosen over time with use.
• Storage: Store the scooter in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.

Troubleshooting

Here are some common issues and their potential solutions:

Specifications

Image: The Xootz scooter with key dimensions indicated: Width (W34.5CM), Height (H99CM), and Length (L86.5CM). Additional text notes Maximum Weight Capacity: 100kg and Deck Size: L42cm x D11cm.

Warranty and Support

Specific warranty information for the Xootz Large Wheeled Scooter is not provided in this manual. For details regarding warranty coverage, product support, or to inquire about replacement parts, please contact Xootz customer service directly.

You can typically find contact information on the manufacturer's official website or on the product packaging.
