SPECTRA MM012340-28mm

Spectra Premium Breast Milk Pump Accessory Kit

Model: MM012340-28mm

Introduction

This instruction manual provides essential information for the proper use, care, and maintenance of your Spectra Premium Breast Milk Pump Accessory Kit. This kit is designed to be compatible with Spectra S1, S2, 9 Plus, and Synergy Gold electric breast pumps, offering a convenient solution for replacement parts or an additional set for home or work.

All components that come into contact with breast milk are BPA/DEHP-free, ensuring safety for your baby. Please read this manual thoroughly before initial use.

Product Components

The Spectra Premium Breast Milk Pump Accessory Kit includes the following components:

  • 1 x 28mm Breast Flange
  • 1 x Wide Neck Milk Bottle
  • 1 x Backflow Protector
  • 1 x Duckbill Valve
  • 1 x Tubing
Diagram showing all included components of the Spectra Premium Breast Milk Pump Accessory Kit: 28mm breast flange, wide neck milk bottle, backflow protector, duckbill valve, and tubing.
Figure 1: Included components of the Spectra Premium Breast Milk Pump Accessory Kit.

For optimal performance and comfort, it is crucial to use the correct flange size. Please measure your nipple size and select the appropriately sized flange. This kit includes a 28mm flange.

Diagram illustrating correct and incorrect flange sizing. Three images show a nipple in a flange: 'Too large', 'Too small', and 'Great fit'.
Figure 2: Flange sizing guide. Ensure a proper fit for effective and comfortable pumping.

Setup

Follow these steps to assemble your Spectra Premium Breast Milk Pump Accessory Kit:

  1. Attach Duckbill Valve: Firmly press the duckbill valve onto the bottom of the breast flange. Ensure it is securely seated to prevent air leaks.
  2. Assemble Backflow Protector: Connect the two parts of the backflow protector (silicone membrane and casing). Insert the assembled backflow protector into the top opening of the breast flange.
  3. Connect Tubing: Attach one end of the tubing to the small nozzle on the backflow protector. The other end of the tubing will connect to your Spectra breast pump.
  4. Attach Bottle: Screw the wide neck milk bottle onto the bottom of the breast flange assembly.
  5. Connect to Pump: Connect the free end of the tubing to the appropriate port on your Spectra breast pump. Refer to your breast pump's instruction manual for specific port locations.

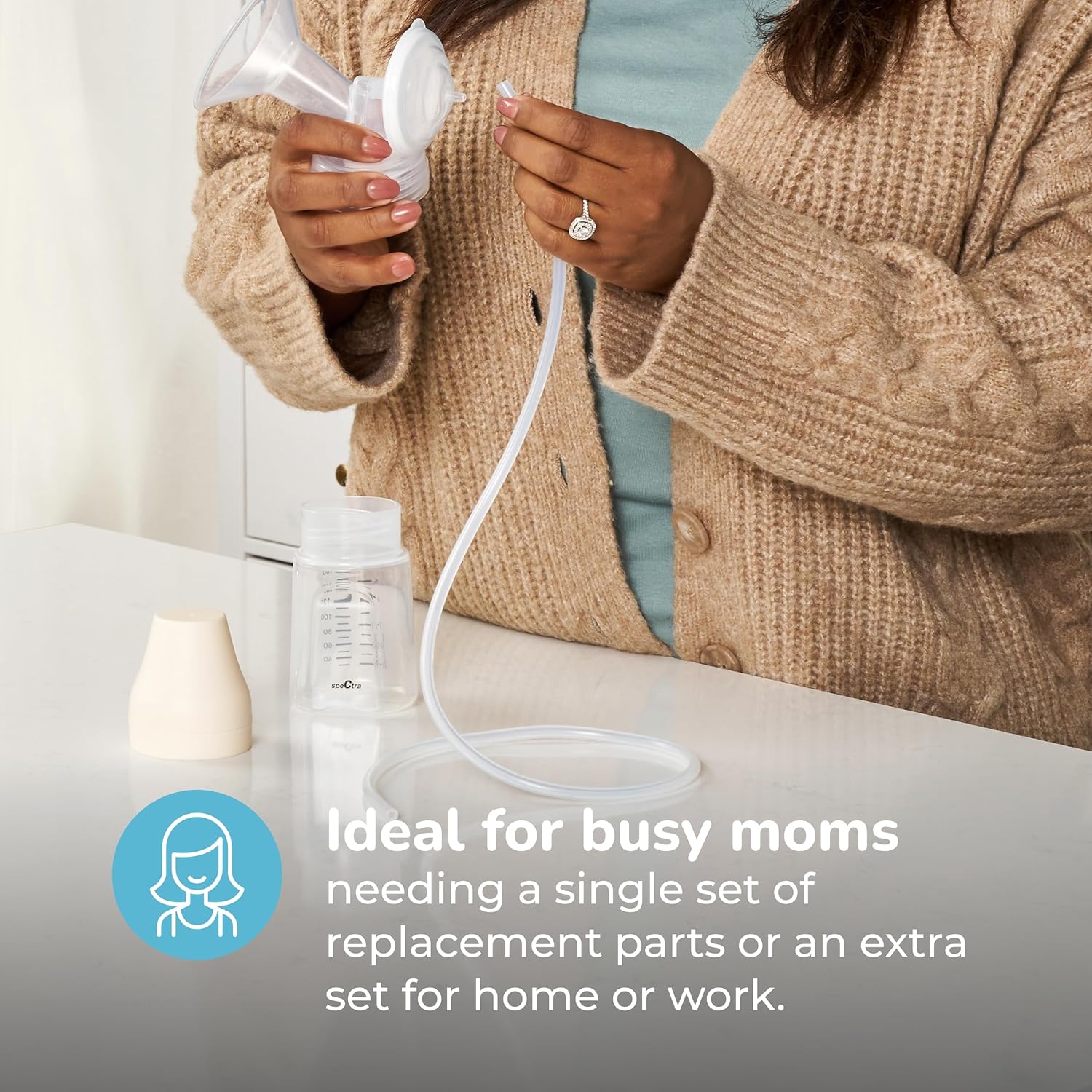

A woman demonstrating the assembly of a Spectra breast pump accessory kit, connecting the tubing to the backflow protector and flange.
Figure 3: Assembling the breast pump accessory kit.

Operation

Once the accessory kit is assembled and connected to your Spectra breast pump, refer to your specific breast pump's instruction manual for detailed operating procedures, including power settings, cycle adjustments, and vacuum levels. This accessory kit functions as a component of the overall pumping system.

For a visual guide on Spectra breast pump features and usage, please watch the following video:

Video 1: Spectra Product Video. This video demonstrates various features and usage scenarios of Spectra breast pumps, including assembly and operation.

Cleaning and Maintenance

Proper cleaning and maintenance are essential for hygiene and product longevity. Always wash parts immediately after each use.

Cleaning Instructions:

  • Disassemble all parts that come into contact with breast milk (flange, bottle, duckbill valve, backflow protector).
  • Wash these parts with warm, soapy water. Use a soft brush for thorough cleaning.
  • Rinse all components thoroughly with clean water.
  • Allow parts to air dry completely on a clean surface or drying rack.
  • Do not wash the tubing. If moisture or milk enters the tubing, replace it immediately to prevent contamination.
A Spectra breast milk bottle, flange, backflow protector, and tubing laid out on a white surface with text 'Easy to Clean: Wash with warm soapy water and rinse well.'
Figure 4: Easy cleaning of Spectra pump parts.

Replacement Schedule:

Regular replacement of parts is recommended to maintain optimal pump performance and hygiene.

  • Replace Spectra Duckbill Valves every 6 to 8 weeks, or sooner if wear is visible or suction decreases.
  • Replace your Spectra Backflow Protector every 3 to 4 months, or sooner if wear is visible.
  • Tubing should be replaced if milk or moisture is present, or if it becomes damaged.
An image showing a Spectra breast pump in use, with text overlays recommending to purchase two premium breast shield sets for double pumping and to replace duckbill valves every 6-8 weeks and backflow protectors every 3-4 months.
Figure 5: Recommended replacement schedule for pump parts.

Compatibility

This Spectra Premium Breast Milk Pump Accessory Kit is compatible with the following Spectra electric breast pump models:

  • Spectra S1 Plus
  • Spectra S2 Plus
  • Spectra 9 Plus
  • Spectra Synergy Gold
Image showing three Spectra breast pump models: S1 Plus, S2 Plus, and 9 Plus, with text indicating compatibility.
Figure 6: Compatible Spectra breast pump models.

Troubleshooting

If you experience issues such as decreased suction or milk flow, please check the following:

  • Ensure all parts of the accessory kit are correctly assembled and securely connected.
  • Inspect the duckbill valve for tears or wear; a damaged valve can significantly reduce suction.
  • Check the backflow protector membrane for tears or damage.
  • Verify that the tubing is free from kinks, damage, or moisture.
  • Refer to your main Spectra breast pump manual for pump-specific troubleshooting steps.

Specifications

FeatureDetail
BrandSPECTRA
Model NumberMM012340-28mm
Flange Size28mm
Included ComponentsBreast Flange, Wide Neck Milk Bottle, Backflow Protector, Duckbill Valve, Tubing
Material SafetyBPA/DEHP Free
Item Weight0.19 Kilograms
ColorClear
A close-up image of a Spectra breast pump part with a 'BPA free' leaf icon, emphasizing that all plastic or silicone parts in contact with breast milk are BPA free.
Figure 7: All Spectra Baby plastic or silicone parts that come in contact with breast milk are BPA free.

Warranty and Support

For information regarding product warranty, returns, or additional support, please refer to the documentation included with your original Spectra breast pump or visit the official Spectra Baby USA website. You may also contact customer service for assistance with any product-related inquiries.

For a general overview of Spectra products and brand values, please watch the following video:

Video 2: Spectra Brand Video. This video highlights the brand's commitment to award-winning breast pumps and accessories, exclusive technology, and customer support.
