Boston Acoustics 2-inch Round Cone Speaker Instruction Manual

Introduction

Thank you for choosing the Boston Acoustics 2-inch Round Cone Speaker. This manual provides essential information for the proper installation, operation, and maintenance of your new speakers. Please read these instructions carefully before use to ensure optimal performance and longevity of your product.

Product Overview

The Boston Acoustics 2-inch Round Cone Speaker is designed for various audio applications, particularly home theatre systems. Key features include a 2-inch round cone, 4 Ohm impedance, and a shielded magnetic design. This package contains two speakers, offering a compact and efficient audio solution.

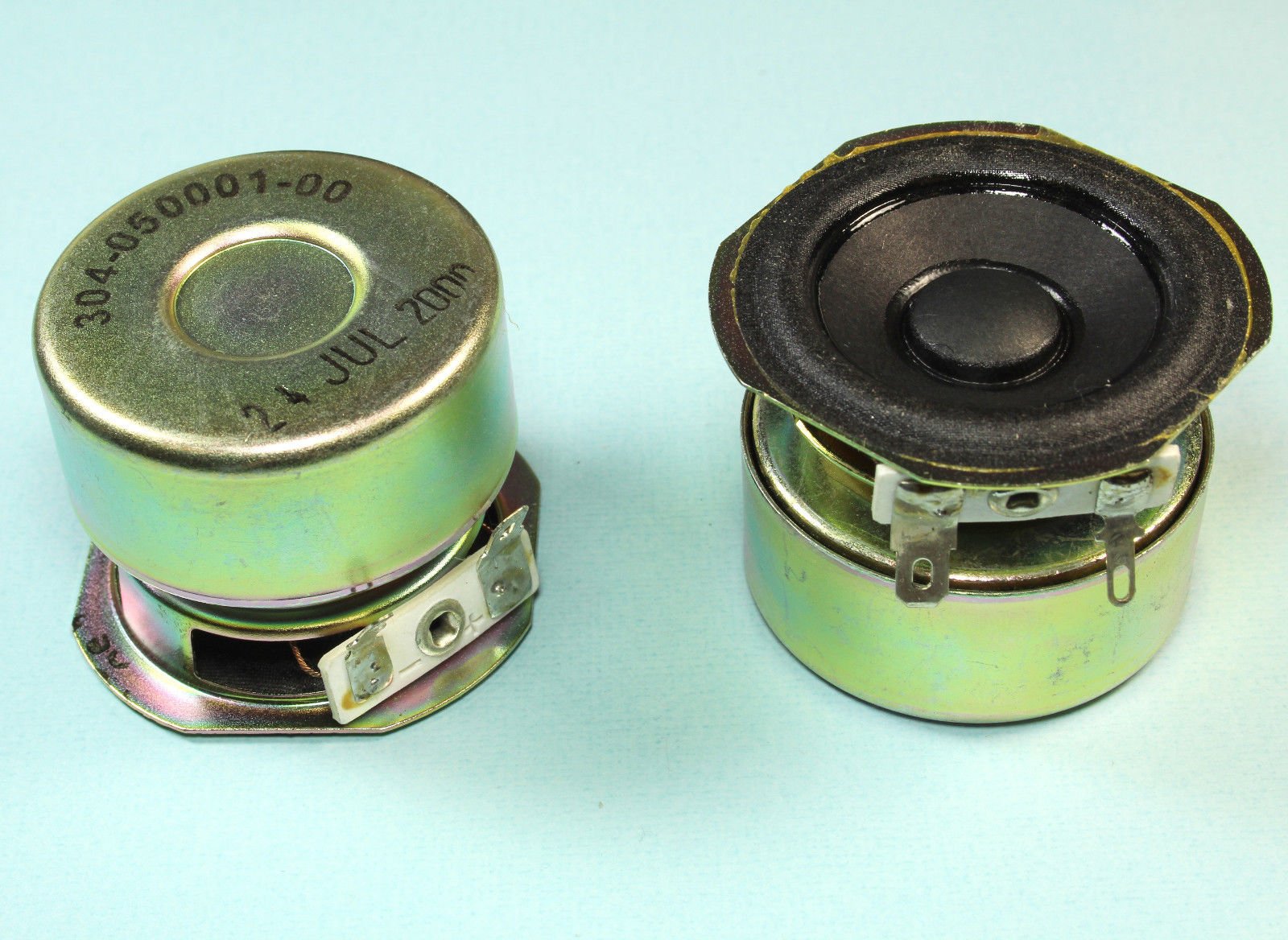

Image: Two Boston Acoustics 2-inch round cone speakers. One speaker is shown from the front, highlighting the cone, while the other is shown from the side, revealing its depth and magnetic structure.

Setup

1. Unpacking

• Carefully unpack the speaker package.
• Ensure all components are present: 2 x Boston Acoustics 2-inch Round Cone Speakers.
• Inspect the speakers for any visible damage that may have occurred during shipping. If damage is found, contact your retailer immediately.

2. Mounting

• These speakers feature a magnetic mount. Ensure the mounting surface is clean, stable, and free from metallic debris that could interfere with the magnetic field.
• The speakers have a depth of 1.61 inches and overall dimensions of 1.61"D x 2"W x 2"H. Allow adequate space for installation, ensuring no obstructions hinder sound dispersion.
• For optimal sound, position speakers symmetrically within your listening environment.

3. Wiring

• Connect the speaker wires from your audio amplifier or receiver to the terminals on the back of each speaker.
• Observe correct polarity: connect the positive (+) terminal on the speaker to the positive (+) terminal on your amplifier, and the negative (-) terminal on the speaker to the negative (-) terminal on your amplifier. Incorrect polarity can lead to poor sound quality.
• The speakers have a 4 Ohm impedance. Ensure your amplifier is compatible with 4 Ohm loads to prevent damage to your equipment.
• Secure all connections to prevent accidental disconnections or short circuits.

Operating

• Once installed and wired, connect your audio source and power on your audio system.
• Adjust volume levels gradually to avoid sudden loud sounds that could damage the speakers or your hearing.
• These speakers are designed for a 2-channel surround sound configuration, providing clear and balanced audio output.
• Avoid operating the speakers at excessively high volumes for extended periods, as this can lead to overheating and potential damage.

Maintenance

1. Cleaning

• To clean the speakers, use a soft, dry cloth. Gently wipe the speaker cone and housing to remove dust.
• Do not use liquid cleaners, solvents, or abrasive materials, as these can damage the speaker cone, grille, or finish.

2. Storage

• If storing the speakers, keep them in a dry, cool environment, away from direct sunlight, extreme temperatures, and high humidity.
• Protect the speaker cones from physical impact during storage.

Troubleshooting

If you encounter issues with your speakers, refer to the following common troubleshooting steps:

• No Sound:
  • Check all wiring connections for proper polarity and secure fit at both the speaker and amplifier ends.
  • Ensure the audio source is active and the volume on your amplifier/receiver is turned up.
  • Verify that the correct input source is selected on your amplifier/receiver.
• Distorted Sound:
  • Reduce the volume level on your amplifier. Overdriving the speakers can cause distortion.
  • Check for any physical obstructions or damage to the speaker cone or surround.
  • Verify that the amplifier's impedance rating is compatible with the speaker's 4 Ohm impedance.
  • Ensure audio cables are not damaged or frayed.
• One Speaker Not Working:
  • Swap the non-working speaker with a known working one (if available) to determine if the issue is with the speaker itself or the wiring/audio channel.
  • Check the wiring connections for the affected speaker.
  • Test the audio channel on your amplifier with another speaker or device to rule out an amplifier issue.

Specifications

Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the documentation included with your original purchase. You may also visit the official Boston Acoustics website for the most up-to-date support resources and contact information.
