Product Overview
The Viking Lower Door Seal Part 014072-000 is a replacement component designed for weatherproofing vehicle doors. Manufactured from Ethylene Propylene Diene Monomer (EPDM) rubber, this seal provides durability and effective protection against environmental elements. This manual provides instructions for proper installation and maintenance.

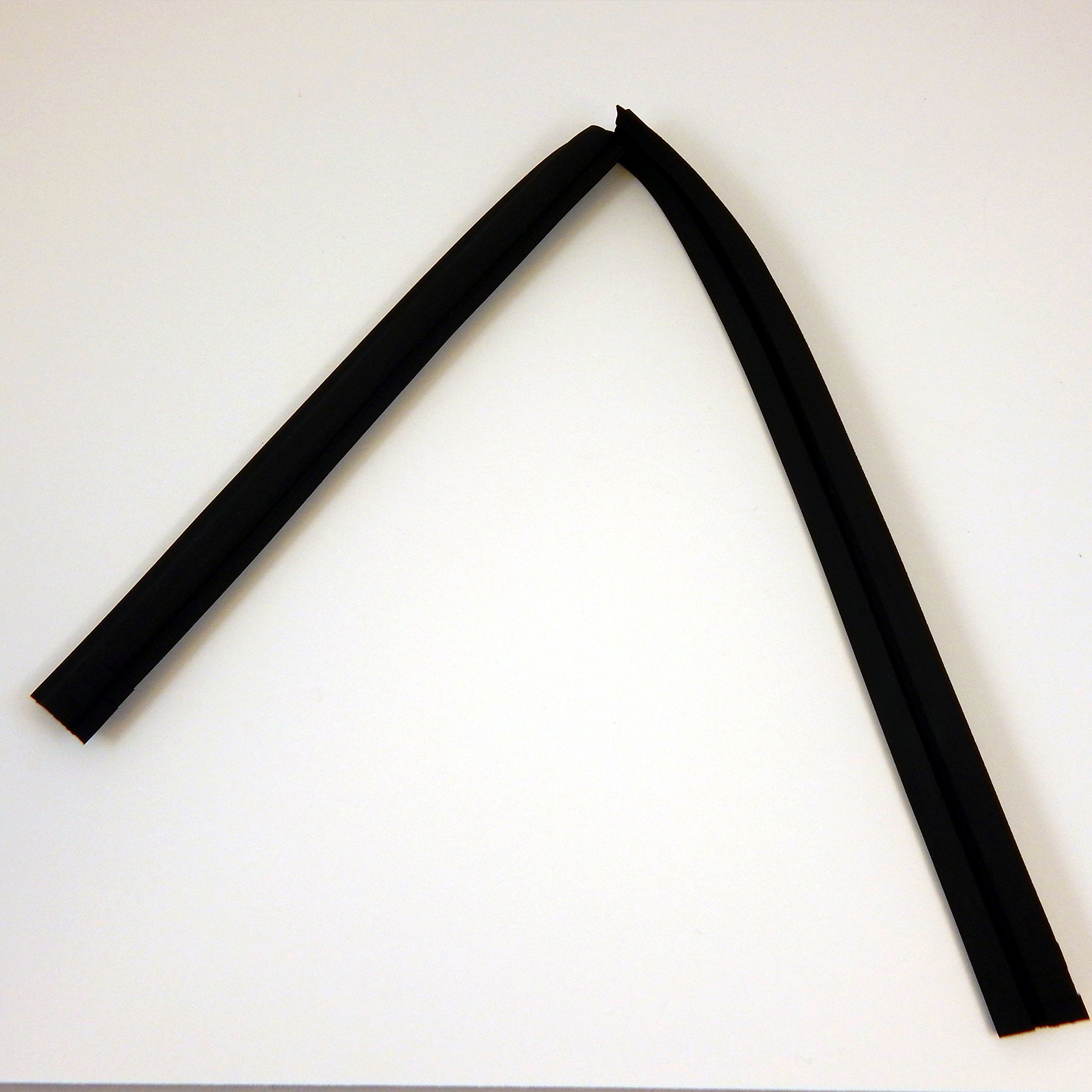

Figure 1: Viking Lower Door Seal Part 014072-000. This image displays the black rubber seal, highlighting its form and material texture.
Safety Information
Always exercise caution when working with vehicle components. Ensure the vehicle is stable and powered off if necessary. Wear appropriate personal protective equipment, such as gloves, to prevent injury. Keep small parts away from children.
Setup and Installation
This section outlines the general steps for replacing a lower door seal. Specific vehicle models may require additional steps or tools. Refer to your vehicle's service manual for detailed instructions if available.
Tools Required:
- Trim removal tool (plastic preferred to avoid scratches)
- Clean cloth
- Mild adhesive remover (optional, for stubborn residue)
Installation Steps:
- Prepare the Area: Open the vehicle door fully to access the lower door frame. Clean the area where the old seal was located, removing any dirt, debris, or old adhesive residue. Ensure the surface is dry.
- Remove Old Seal: Carefully peel off the existing lower door seal. A trim removal tool may be used to gently pry up stubborn sections. Dispose of the old seal properly.
- Align New Seal: Begin by aligning one end of the new Viking Lower Door Seal (Part 014072-000) with the corresponding end of the door frame. Ensure the seal's profile matches the door's contour.
- Press into Place: Starting from one end, firmly press the new seal into the channel or onto the adhesive surface along the lower edge of the door frame. Work your way around, ensuring a snug fit without kinks or gaps. Apply even pressure.
- Check Fitment: Once installed, gently close and open the door several times to ensure the seal is properly seated and does not interfere with door operation. Verify that there are no visible gaps.
Maintenance
Regular maintenance helps prolong the life and effectiveness of your door seal.
- Cleaning: Periodically clean the door seal with mild soap and water. Avoid harsh chemicals or abrasive cleaners, as these can degrade the rubber material.
- Inspection: Inspect the seal for cracks, tears, or signs of wear at least once a year. Damaged seals should be replaced promptly to maintain weatherproofing.
- Lubrication (Optional): For optimal performance and to prevent sticking, a silicone-based lubricant can be applied sparingly to the seal surface, especially in colder climates.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks past the seal | Improper installation, damaged seal, or debris in the seal channel. | Re-inspect installation for proper seating. Clean the seal and channel. Replace the seal if damaged. |
| Door is difficult to close | Seal is too thick or improperly seated, causing excessive compression. | Ensure the seal is fully seated in its channel. Verify it is the correct part for your vehicle. Allow time for the new seal to compress. |
| Seal is peeling or coming loose | Insufficient pressure during installation, dirty surface, or adhesive failure. | Clean the surface thoroughly before re-installation. Apply firm, even pressure during installation. Consider using a compatible automotive adhesive if the seal is designed for it. |
Specifications
- Part Number: 014072-000
- Brand: Viking
- Material: Ethylene Propylene Diene Monomer Rubber (EPDM), Rubber
- Color: Black
- Recommended Use: Weatherproofing vehicle doors
- Number of Items: 1
Warranty Information
Specific warranty details for the Viking Lower Door Seal Part 014072-000 are typically provided by the retailer or manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims. For general warranty inquiries, contact Viking customer support.
Customer Support
For further assistance, technical support, or to inquire about replacement parts, please contact Viking customer service. Refer to the contact information provided with your purchase or visit the official Viking website.
Online Resources: Viking Official Website (Note: This link is a general example; specific product support pages may vary.)
