Sharp 1.4 cu. ft. 1100W Countertop Microwave Oven

1. Introduction

This manual provides essential information for the safe and efficient operation of your Sharp 1.4 cu. ft. 1100W Countertop Microwave Oven, Model SMC1452CH. Designed for convenience and performance, this microwave features a spacious interior, a Carousel turntable, and various cooking functions to simplify your daily meal preparation.

Figure 1: Front view of the Sharp 1.4 cu. ft. 1100W Countertop Microwave Oven.

2. Setup and Installation

2.1 Placement

• Place the microwave oven on a flat, stable countertop surface.
• Ensure adequate ventilation by leaving at least 4 inches (10 cm) of space around the top, back, and sides of the oven.
• Do not block air vents.

2.2 Electrical Requirements

• The microwave requires a standard 120V, 60Hz, 15A household outlet.
• For optimal performance and safety, plug the microwave directly into a dedicated wall outlet. Avoid using extension cords or power strips.
• The oven operates at 1100 Watts.

Figure 2: Microwave dimensions for proper placement.

3. Operating Instructions

3.1 Control Panel Overview

The microwave features an intuitive touch panel with a blue LED display for easy operation.

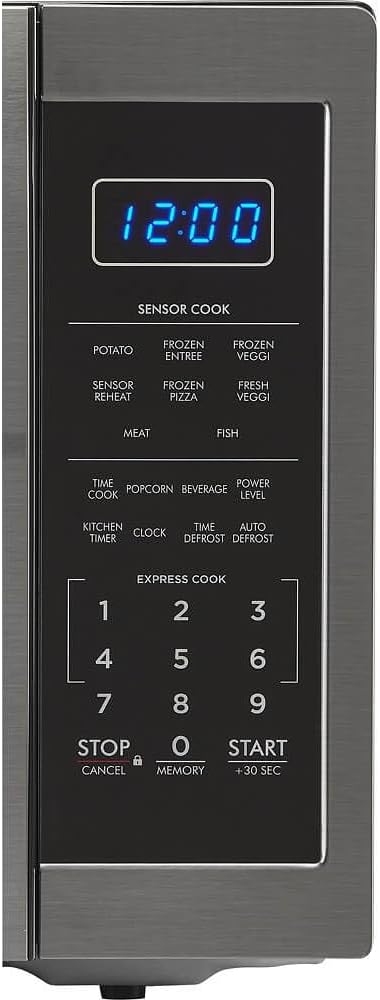

Figure 3: Detailed view of the control panel.

3.2 Basic Cooking

• Time Cook: Press the 'Time Cook' button, enter the desired cooking time using the number pad, and then press 'Start'.
• Power Level: To adjust power, press 'Power', then enter a number from 1 to 10 (10 being 100% power).
• +30 SEC: For instant start, press the '+30 SEC' button to begin cooking for 30 seconds at full power. Press repeatedly to add 30-second increments.
• Express Cook: Use the number pad (1-6) for one-touch instant cooking up to 6 minutes. For example, press '1' for 1 minute of cooking.

3.3 Preset Functions (One-Touch Cook Menu)

Utilize the dedicated buttons for common food items:

• Popcorn: For automatic popcorn preparation.
• Beverage: For heating drinks.

3.4 Sensor Cook Menu

The Sensor Cook feature automatically adjusts cooking time and power levels for optimal results. Select from options such as:

• Potato
• Frozen Entree
• Frozen Veggi
• Sensor Reheat
• Frozen Pizza
• Fresh Veggi
• Meat
• Fish

3.5 Defrosting

• Auto Defrost: This function thaws food quickly and accurately by weight. Follow the on-screen prompts or manual instructions for specific food types.
• Time Defrost: Allows you to set a specific defrosting time.

3.6 Multi-Stage Cooking & Memory Function

• The microwave supports multi-stage cooking (up to 2 steps), allowing you to program different power levels and times sequentially.
• Use the 'Memory' function to save personalized cooking settings for frequently prepared dishes.

3.7 Child Safety Lock

To prevent unintended operation, especially by children, activate the Child Safety Lock. This feature can be toggled on or off by pressing '7', '9', and '0' in sequence.

3.8 Clock and Timer

• Clock: Set the current time using the 'Clock' button and number pad.
• Kitchen Timer: Use the 'Kitchen Timer' for general timing needs, independent of microwave cooking functions.

4. Maintenance

4.1 Cleaning

• Always unplug the microwave before cleaning.
• Wipe the interior and exterior surfaces with a soft, damp cloth and mild detergent. Avoid abrasive cleaners.
• The Carousel turntable is removable for easy cleaning. It can be washed by hand or in a dishwasher.

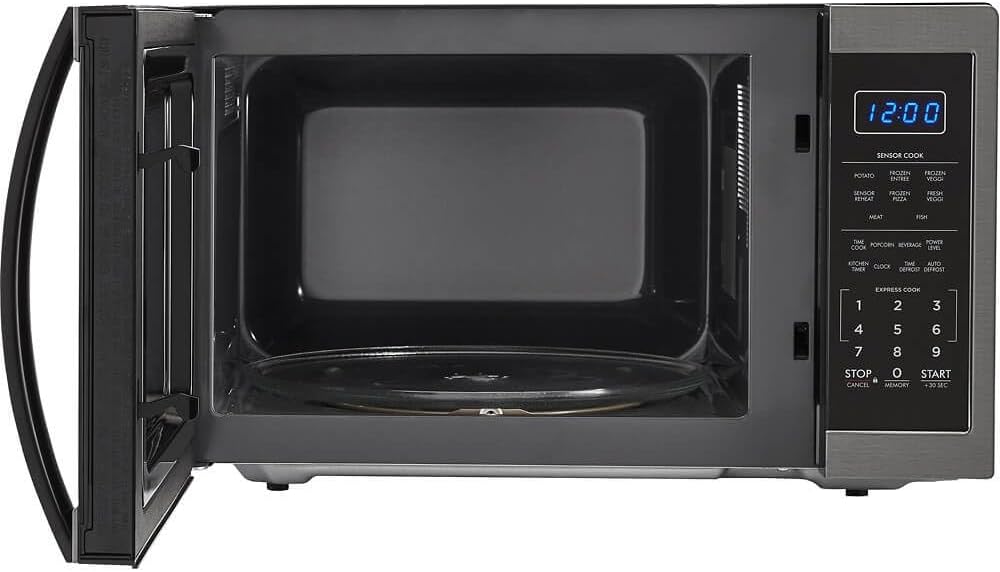

Figure 4: Interior view with removable Carousel turntable.

5. Troubleshooting

• Microwave not operating: Ensure the power cord is securely plugged into a dedicated wall outlet. Avoid using power strips. Check your household fuse or circuit breaker.
• Food not heating evenly: Ensure the Carousel turntable is properly seated and rotating. Stir or rearrange food halfway through cooking for best results.
• Unusual noises: Verify that the turntable and its support ring are correctly positioned and free from obstructions.

6. Specifications

7. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Sharp website. Keep your purchase receipt as proof of purchase for warranty claims.
