Bertazzoni Professional PRO1206GMFEDVIT 120 cm Range Cooker User Manual

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bertazzoni Professional PRO1206GMFEDVIT 120 cm Range Cooker. Please read these instructions carefully before using the appliance and keep them for future reference.

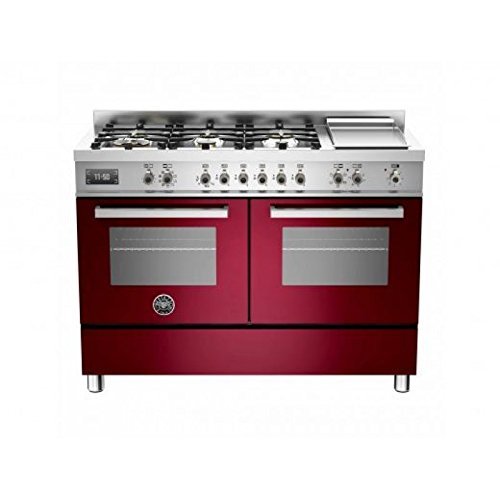

Image: Bertazzoni Professional PRO1206GMFEDVIT 120 cm Range Cooker, showcasing its stainless steel finish and multiple cooking zones.

Safety Information

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. Keep children away from the appliance during operation. Ensure proper ventilation. Do not store flammable materials near the cooker.

• Read all instructions before use.
• Ensure the appliance is properly installed and grounded by a qualified technician.
• Do not touch hot surfaces. Use oven mitts.
• Never use the appliance for space heating.
• Supervise children closely when they are near the appliance.

Setup and Installation

Electrical Requirements

The appliance requires an electrical supply of 220/240 V, 50/60 Hz, with a nominal power of 6000 W and a current of 26 A. Ensure your electrical installation meets these specifications and is properly grounded.

Gas Connection

This range cooker is designed for gas supply. Gas connections must be performed by a certified professional in accordance with local regulations. Verify the gas type matches the appliance's configuration.

Positioning

Place the cooker on a stable, level surface. Ensure adequate clearance from adjacent cabinets and walls for proper ventilation and heat dissipation. The adjustable stainless steel feet allow for leveling.

Operating Instructions

Gas Hob Operation

The hob features 7 cooking zones, including 6 gas burners and 1 electric Teppan-Yaki plate. The gas burners are made of brass and include a double wok burner, rapid, semi-rapid, and auxiliary burners. Ignition is electric, controlled by metal knobs.

• Ignition: Push and turn the control knob for the desired burner to the maximum setting. The electric ignition system will spark. Hold the knob for a few seconds until the flame is stable.
• Flame Adjustment: Adjust the flame size using the control knob. A stable blue flame indicates proper operation.
• Teppan-Yaki Plate: The electric Teppan-Yaki plate has a power of 1100 W. Use its dedicated control for heating. A collection tray is provided for convenience.
• Burner Power: Double Wok: 0.48 kW – 5 kW; Rapid: 1.05 kW – 3 kW; Semi-rapid: 0.60 kW – 1.75 kW; Auxiliary: 0.48 kW – 1 kW.

Electric Oven Operation

This model features two electric ovens: a multi-use main oven and a multifunction auxiliary oven, both with a volume of 69.00 L. Oven controls are managed via tactile function and a Touch Digital programmer.

Main Oven Functions:

• Resistance inférieure et supérieure (Top and Bottom Heating)
• Résistance bas (Bottom Heating)
• Convection électrique ventilé (Electric Fan Convection)
• Grill convection (Convection Grill)
• Décongeler (Defrost)
• Pre-riscaldamento rapide (Rapid Pre-heating)
• Grill (Grill)
• Lumière Four (Oven Light)
• Pizza
• Résistance haut (Top Heating)

Auxiliary Oven Functions:

• Resistance supérieure et inférieure (Top and Bottom Heating)
• Résistance inférieure (Bottom Heating)
• Convection Electrique ventilé (Electric Fan Convection)
• Grill convection (Convection Grill)
• Décongeler (Defrost)
• Pre-riscaldamento rapide (Rapid Pre-heating)
• Grill (Grill)
• Lumière Four (Oven Light)
• Pizza
• Résistance haut (Top Heating)

Both ovens feature triple glass doors, which are removable for cleaning, and soft-close door systems. A food probe is included for precise cooking. Each oven has 4 cooking levels and comes with 2 standard telescopic guides, 3 enameled trays, and 2 chrome grids.

Maintenance and Cleaning

General Cleaning

Always ensure the appliance is cool before cleaning. Use mild detergents and soft cloths. Avoid abrasive cleaners, scouring pads, or harsh chemicals that can damage surfaces.

Hob Cleaning

• Stainless Steel Surface: Clean with a damp cloth and a non-abrasive stainless steel cleaner. Wipe in the direction of the grain.
• Burner Grates (Cast Iron): Remove grates and wash with warm soapy water. For stubborn stains, a non-abrasive scrub brush can be used. Ensure they are completely dry before replacing.
• Burner Caps and Rings: Clean with warm soapy water. Ensure burner ports are clear of food debris.
• Teppan-Yaki Plate: Clean after each use once cooled. Use a scraper for food residue and then wipe with a damp cloth.

Oven Cleaning

• Oven Interior: Wipe down with a damp cloth and mild detergent after each use. For baked-on food, use a specialized oven cleaner, following the product instructions carefully.
• Removable Inner Glass: The triple glass door can be disassembled for thorough cleaning. Refer to the detailed diagram in the full manual for removal instructions.
• Trays and Grids: Wash with warm soapy water.

Troubleshooting

Before contacting customer service, please consult the following common issues and solutions:

• Gas Burner Not Igniting: Check if the burner cap and ring are correctly positioned. Ensure the gas supply is open. Clean any debris from the ignition pin or burner ports.
• Oven Not Heating: Verify the oven is properly plugged in and the circuit breaker has not tripped. Ensure the correct cooking function and temperature are selected.
• Uneven Cooking: Ensure food is placed centrally in the oven. Avoid overcrowding. Check if the oven door is sealing properly.
• Excessive Smoke from Oven: This can occur during initial use due to manufacturing residues. Ensure the oven is clean. Reduce cooking temperature if food is burning.

If the problem persists after attempting these solutions, please contact Bertazzoni customer support.

Specifications

Warranty and Support

Bertazzoni products are manufactured to the highest quality standards. For detailed warranty information, please refer to the warranty card included with your appliance or visit the official Bertazzoni website. For technical support, spare parts, or service requests, please contact your local authorized Bertazzoni service center.

Online Resources: www.bertazzoni.com
